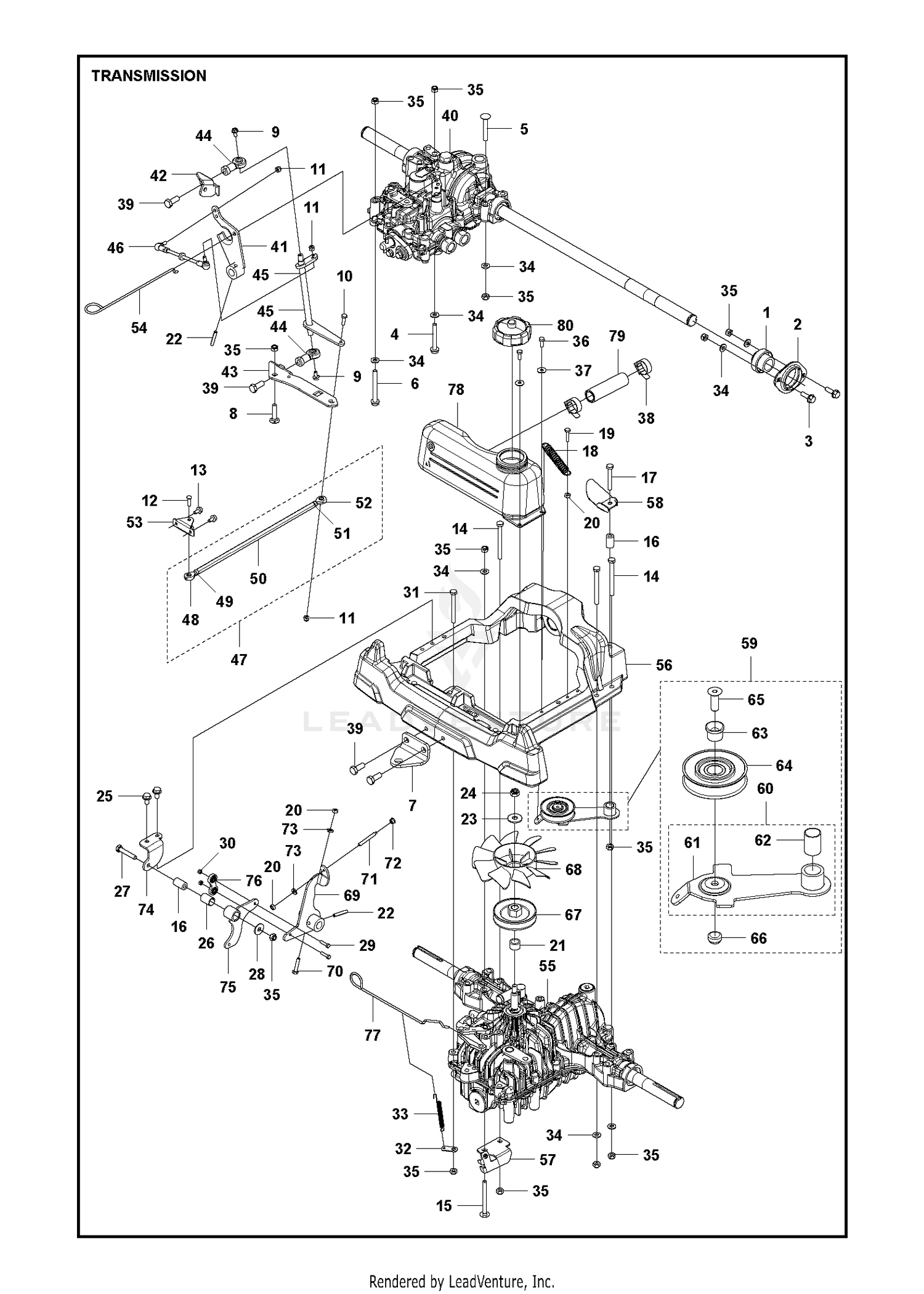

TRANSMISSION
Parts (102)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 01-182-0816 | BOLT-HH Price: $2.85 |
| 1 | 544008902 | BEARING Price: $64.99 |
| 2 | 3217-9 | NUT-HH Price: $0.37 |
| 2 | 544009002 | BEARING HOUSING Price: $22.99 |
| 3 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 3 | 93-6586 | BUSHING Price: $26.89 |
| 4 | 725246451 | SCREW Price: $5.99 |
| 4 | 93-6587 | BEARING Price: $14.99 |
| 5 | 535423803 | SCREW Price: $3.99 |
| 5 | 93-6584 | KING PIN ASM Price: $68.03 |
| 6 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 6 | 725246751 | Hex Bolt Price: $4.99 |
| 7 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 7 | 506889901 | DRAW RING Price: $17.99 |
| 8 | 121-5087-03 | FRONT AXLE ASM Price: $1,295.09 |
| 8 | 727645951 | Screw Mvbf 8 X 40 Price: $2.28 |
| 9 | 138-6102 | CYLINDER ASM This part replaces 93-6510. Price: $1,096.53 |
| 9 | 535475212 | SCREW EHHFM Price: $2.99 |
| 10 | 725237071 | SCREW Price: $3.99 |
| 10 | 93-6509 | END-TIE ROD This part replaces 93-6509-03. Price: $98.38 |
| 11 | 117-5899-03 | LH SPINDLE HOUSING ASM Price: $973.03 |
| 11 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 12 | 544841701 | SCREW Price: $2.99 |
| 12 | 87-1470-03 | END-TIE ROD, LH Price: $101.78 |
| 13 | 3218-21 | NUT-JAM Price: $3.19 |
| 13 | 725236651 | SCREW Price: $2.99 |
| 14 | 504628201 | NEEDS DESCRIPTION Price: Call Us |
| 14 | 93-6588-03 | ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 15 | 32136-13 | NUT-SHH Price: $2.85 |
| 15 | 535423808 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 3220-11 | NUT-JAM Price: $0.81 |
| 16 | 506992001 | BUSHING Price: $9.99 |
| 17 | 725246251 | SCREW Price: $4.99 |
| 17 | 87-1480-03 | END-TIE ROD, RH Price: $101.78 |
| 18 | 117-5897-03 | SPINDLE ASM Price: $461.32 |
| 18 | 506542501 | SPRING Price: $6.99 |
| 19 | 119-6003 | HUB ASM Price: $163.68 |
| 19 | 725237271 | SCREW Price: $3.99 |
| 20 | 127-1100 | WHEEL AND TIRE ASM Price: $422.57 |
| 20 | 731231601 | NUT Price: $2.99 |
| 21 | 302-5 | FITTING-GREASE Price: $0.59 |
| 21 | 502433801 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 721434701 | PIN Price: $2.99 |
| 22 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 23 | 3272-12 | PIN-COTTER Price: $0.25 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 25 | 506570103 | BOLT Price: $3.99 |
| 26 | 506986103 | Price: $8.66 |
| 27 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 28 | 734116441 | SPACER Price: $3.99 |
| 29 | 725233151 | SCREW M6S 5X20 Price: $2.99 |
| 30 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 31 | 725246651 | Screw Price: $3.27 |
| 32 | 506599301 | CONNECTOR Price: $5.99 |
| 34 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 35 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 36 | 725236871 | BOLT FLANGE - M6X20 Price: $2.99 |
| 37 | 734115441 | WASHER - 26X6.5X1.6 Price: $0.99 |
| 38 | 505443601 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 725249371 | Screw M10x25 Price: $1.82 |
| 40 | 501110901 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 578291901 | LEVER Price: $10.99 |
| 42 | 588974601 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 588974801 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 506951701 | LINK Price: $39.99 |
| 45 | 535497402 | LEVER Price: $22.99 |
| 46 | 544441903 | NEEDS DESCRIPTION Price: Call Us |
| 47 | 593959403 | NEEDS DESCRIPTION This part replaces 544456703. Price: $74.99 |
| 48 | 535486602 | LINK Price: $64.99 |
| 49 | 503221018 | NUT Price: $2.99 |
| 50 | 535486503 | ROD Price: $37.99 |
| 51 | 731231601 | NUT Price: $2.99 |
| 52 | 535486601 | LINK Price: $54.99 |
| 53 | 535492802 | BRACKET Price: $49.99 |
| 54 | 582381301 | NEEDS DESCRIPTION Price: Call Us |
| 55 | 501114001 | NEEDS DESCRIPTION Price: Call Us |
| 56 | 501750801 | NEEDS DESCRIPTION Price: Call Us |
| 57 | 544388101 | NEEDS DESCRIPTION Price: Call Us |
| 58 | 522521702 | NEEDS DESCRIPTION Price: Call Us |
| 59 | 506993001 | TENSIONER Price: $74.99 |
| 60 | 535406301 | IDLER ARM Price: $64.99 |
| 61 | 506993001 | TENSIONER This part replaces 506993101. Price: $74.99 |
| 62 | 506986103 | Price: $8.66 |
| 63 | 506993301 | SLEEVE Price: $7.99 |
| 64 | 506947001 | PULLEY Price: $29.99 |
| 65 | 725645301 | SCREW Price: $3.99 |
| 66 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 67 | 506991401 | PULLEY Price: $69.99 |
| 68 | 506948101 | FAN Price: $14.99 |
| 69 | 582779501 | NEEDS DESCRIPTION Price: Call Us |
| 70 | 725237471 | SCREW M6S 6X30 Price: $4.99 |
| 71 | 589404001 | NEEDS DESCRIPTION Price: Call Us |
| 72 | 589403301 | NEEDS DESCRIPTION Price: Call Us |
| 73 | 503230405 | NEEDS DESCRIPTION Price: Call Us |
| 74 | 544388501 | NEEDS DESCRIPTION Price: Call Us |
| 75 | 582779601 | NEEDS DESCRIPTION Price: Call Us |
| 76 | 544888401 | NEEDS DESCRIPTION Price: Call Us |
| 77 | 505490101 | NEEDS DESCRIPTION Price: Call Us |
| 78 | 544388601 | EXPANSION TANK K664 Price: $79.99 |
| 79 | 535458302 | NEEDS DESCRIPTION Price: Call Us |
| 80 | 506673301 | FUEL CAP Price: $27.99 |
