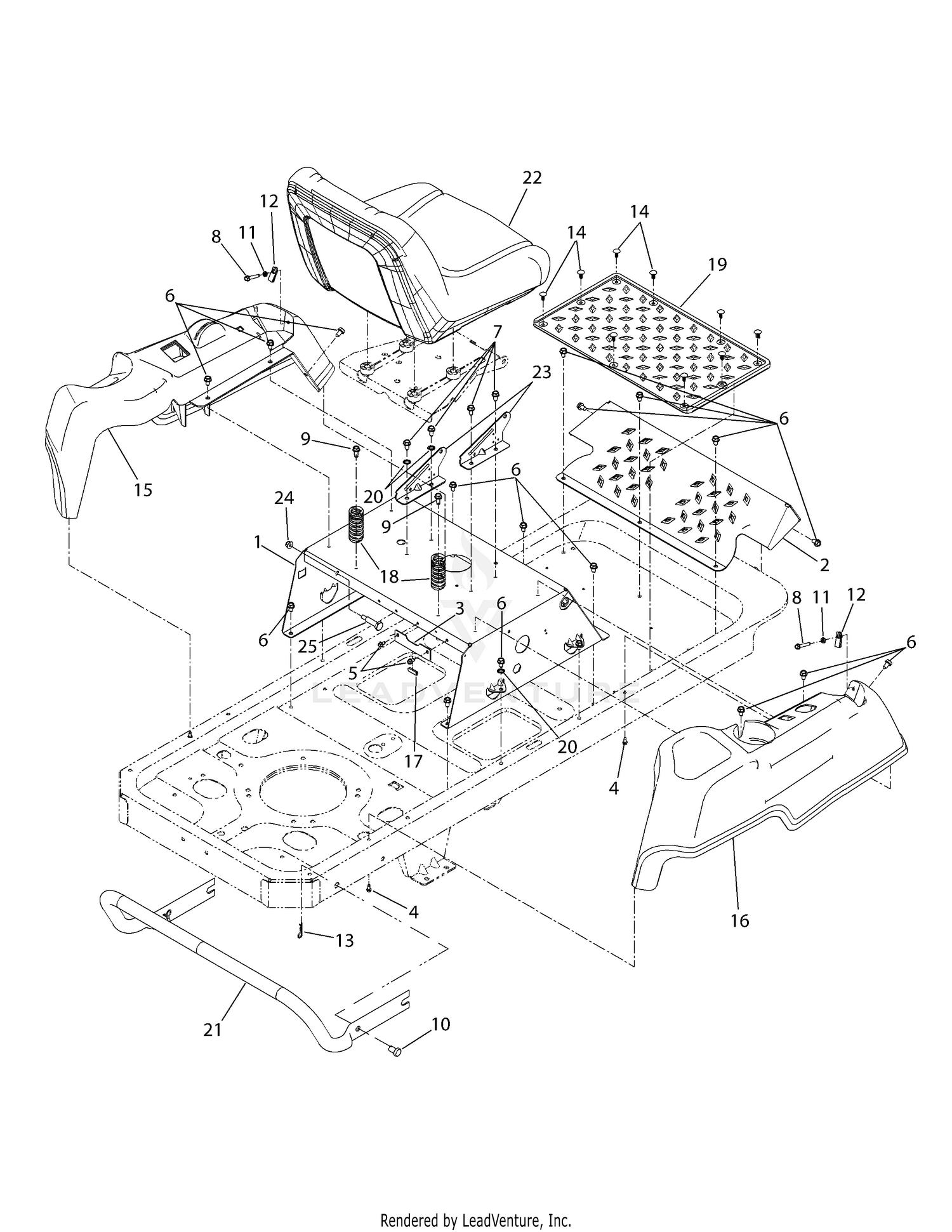

| Ref | Part Number | Description |
|---|
| 1 |
603-04447 |
SEAT BOX FRAME Not Available Price: |
| 1 |
777S32821 |
LABEL-RDR SFTY SEAT BOX T-BILT RZT Not Available Price: |
| 2 |
703-05373B |
FOOT REST BRACKET Not Available Price: |
| 3 |
703-05894-0637 |
Battery Hold-Down Bracket This part replaces 703-05894. Price: $26.19 |
| 4 |
710-04261 |
Screw, Hex Wash. Hd Tapp, #12-16 x .50 Price: $5.45 |
| 5 |
710-0599 |
Screw, Hex Wash. Hd. Tapp., 1/4-20 x .5 Price: $3.86 |
| 6 |
710-0604A |
Screw, Hex Wash. Hd. Tapp, 5/16-18 x .625 Price: $3.96 |
| 7 |
710-0726 |
Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75 Price: $3.82 |
| 8 |
710-0778 |
Screw, Hex Wash. Hd. Tapp. , 1/4-20 x 1.5 Price: $3.90 |
| 9 |
710-1260A |
Screw, Hex Wash. Hd Tapp, 5/16-18 x .75 Price: $3.34 |
| 10 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 11 |
912-0298 |
Jam Nut, 1/4-20 This part replaces 712-0298. Price: $5.38 |
| 12 |
712-04092 |
Nut, U Type Speed, 1/4-20 Price: $5.04 |
| 13 |
714-04023 |
Pin, Internal Cotter Price: $3.90 |
| 14 |
726-3046 |
Clip, Ratchet Price: $3.71 |
| 15 |
731-04662E |
CONSOLE (LH) Not Available This part replaces 731-04662D. Price: |
| 16 |
731-04663D |
CONSOLE (RH) Not Available This part replaces 731-04663C. Price: |
| 17 |
731-0511 |
Strip, Trim Price: $3.29 |
| 18 |
732-04035 |
Spring, Compression, 1.28 x 3.125 Price: $9.61 |
| 19 |
735-04082C |
Foot Pad This part replaces 735-04082. Price: $44.77 |
| 20 |
736-0148 |
Washer, External Tooth, 3/8 Price: $3.19 |
| 21 |
749-04358 |
REAR BUMPER Not Available Price: |
| 22 |
957-04010 |
HIGH BACK SEAT Not Available This part replaces 757-04010. Price: |
| 23 |
783-1489C |
Bracket, Seat Pivot Price: $17.99 |
| 24 |
712-04064 |
Nut, Hex Insert Flange Lock, 1/4-20 GrF Price: $3.64 |
