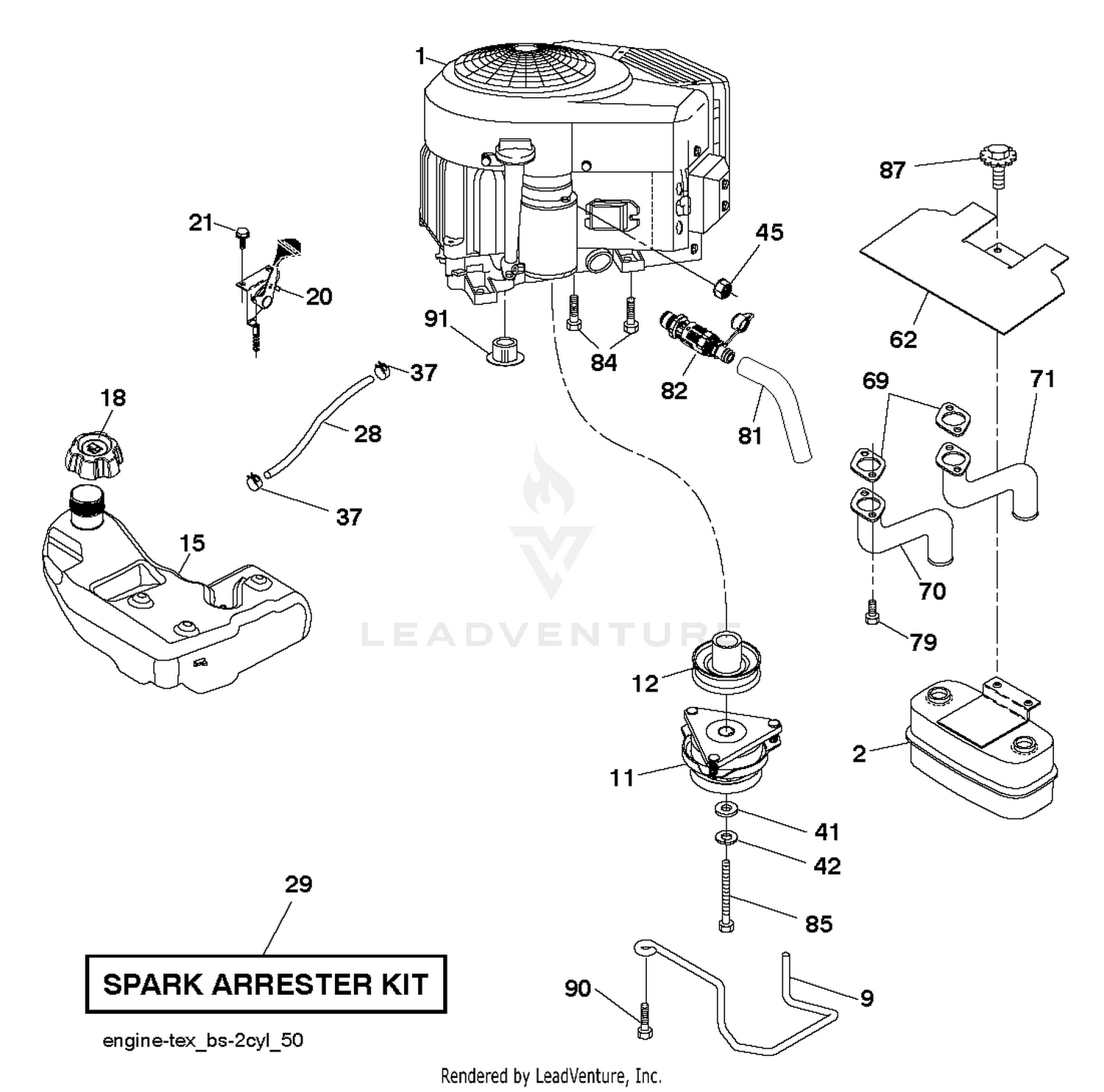

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
127-0453 |
GEAR CASE ASM Price: $677.86 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
98-7487 |
PLUG Price: $3.18 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532131780 |
Kit Spark Arrestor 1 25 Price: Call Us |
| 30 |
127-0425 |
PLUG Price: $4.34 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 60 |
107-9071 |
SCREW Price: $0.36 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 80 |
98-9544 |
SPRING Price: $0.94 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 100 |
98-9380 |
BALL Price: $0.84 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
100-2203 |
NUT-FLANGE Price: $0.87 |
| 200 |
119-8038 |
SEAL-OIL Price: $40.16 |
| 210 |
105-3710 |
STUD Price: $1.16 |
| 220 |
99-3514 |
COVER Price: $11.33 |
| 230 |
117-7562 |
GASKET-PUMP, FUEL Price: $2.98 |
| 240 |
100-2203 |
NUT-FLANGE Price: $0.87 |
| 250 |
127-0504 |
SENSOR-REVOLUTION Price: $258.27 |
| 260 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 270 |
98-7654 |
GASKET Price: $8.84 |
| 280 |
127-0400 |
BOLT-HEX Price: $0.83 |
| 290 |
99-3515 |
PLUG-GEARCASE Price: $9.00 |
| 300 |
108-3841 |
FILTER-OIL Price: $10.81 |
| 310 |
98-9388 |
JOINT-PIPE Price: $31.66 |
