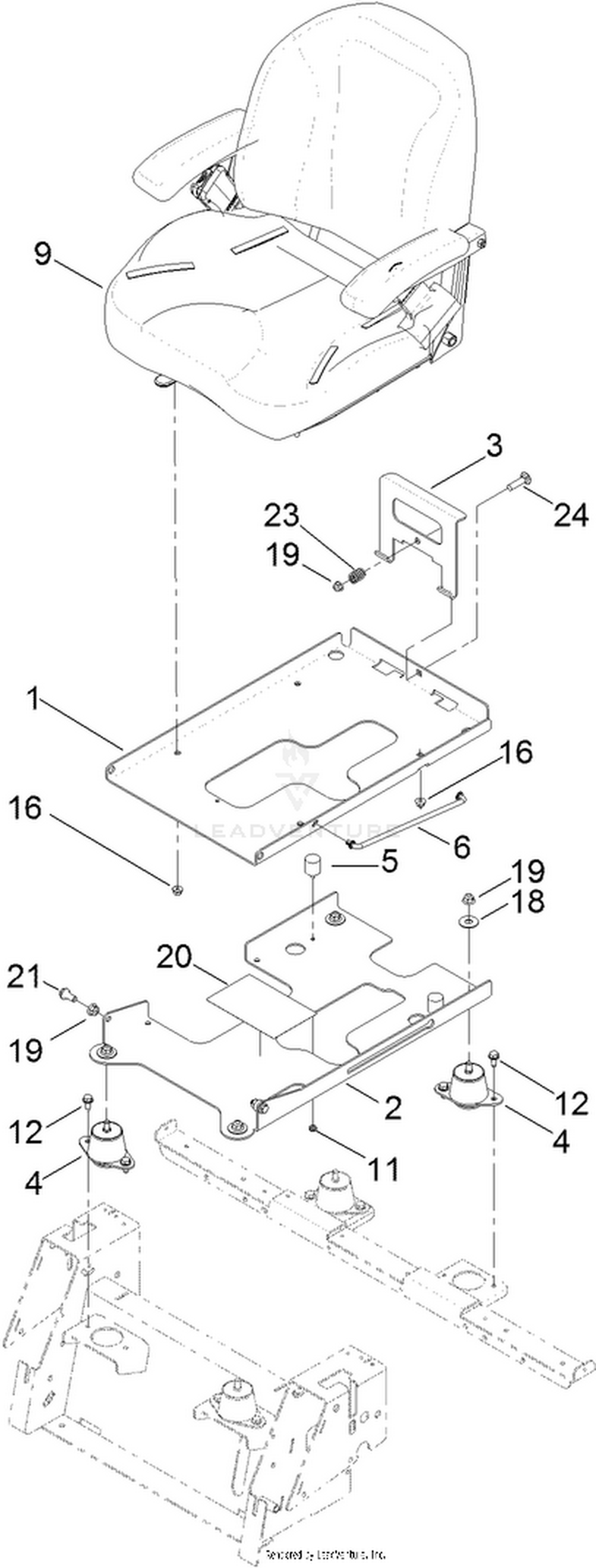

Seat Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-1702-03 | PLATE-PAN, SEAT Price: $71.77 |
| 2 | 125-1703-03 | PLATE-BASE Price: $71.77 |
| 3 | 125-1747-03 | LATCH-SEAT Price: $21.87 |
| 4 | 109-9034 | ISOLATOR-SEAT Price: $65.99 |
| 5 | 106-5891 | BUMPER Price: $37.33 |
| 6 | 125-1796 | ROD-PROP Price: $12.46 |
| 9 | 121-5659 | SEAT ASM Price: $593.50 |
| 11 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 12 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 18 | 3256-5 | WASHER-FLAT Price: $0.27 |
| 19 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 20 | 115-9630 | DECAL-MAINTENANCE Price: $5.36 |
| 21 | 94-7582 | BOLT-SHOULDER Price: $3.09 |
| 23 | 107-3017 | SPRING-COMPRESSION Price: $2.69 |
