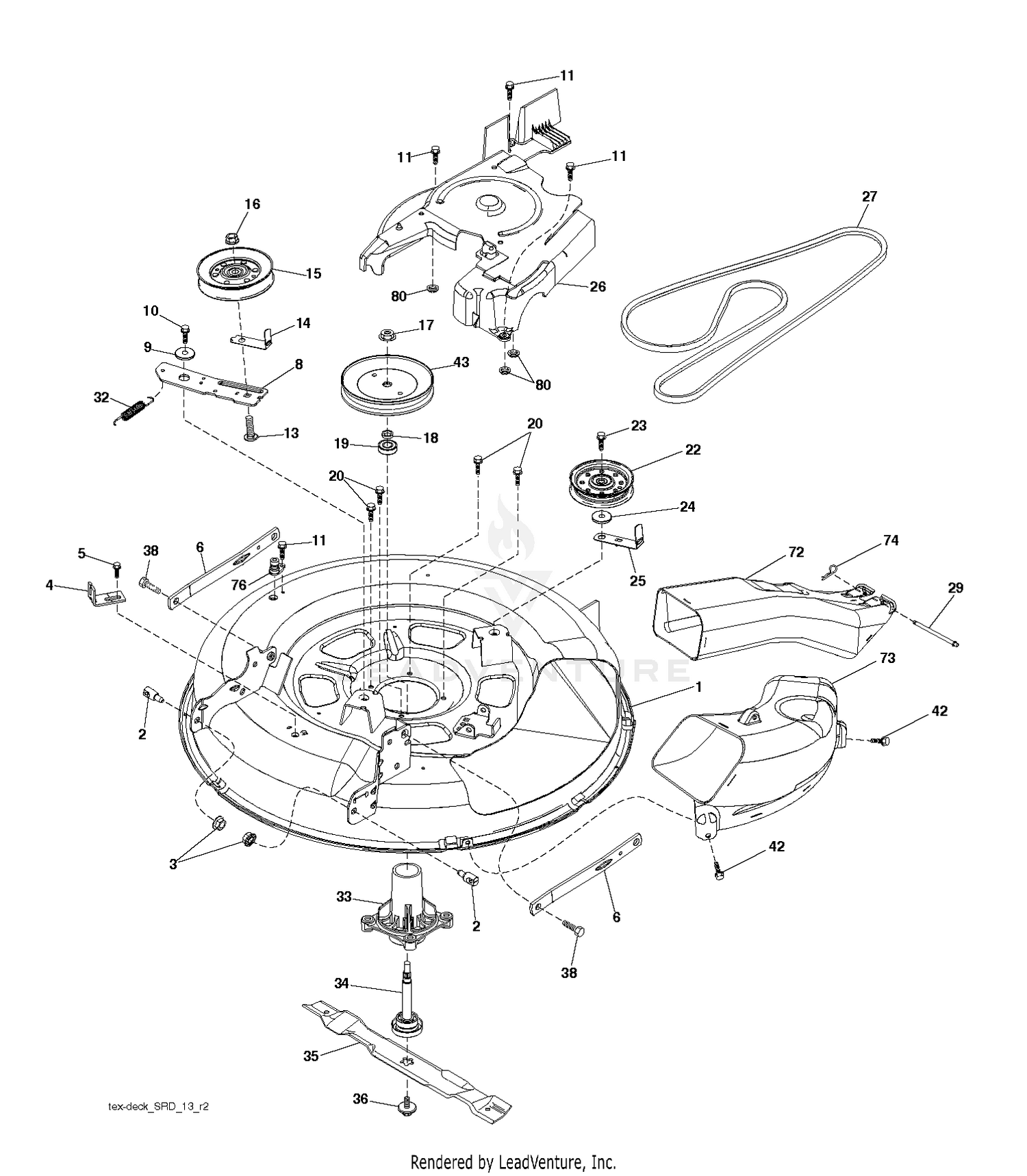

| Ref | Part Number | Description |
|---|
| 1 |
532434487 |
DECK.SVC.WELDMNT.30"419272X418 This part replaces 532442048. Price: $219.99 |
| 1 |
98-9358 |
DISCONTINUED Price: Call Us |
| 2 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 2 |
98-9538 |
BASE-FILTER Price: $48.81 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 3 |
98-7527 |
O-RING Price: $1.48 |
| 4 |
532417645 |
BRACKET.CLUTCH.CABLE Price: $4.99 |
| 4 |
98-9646 |
GASKET-PAN, OIL Price: $43.44 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 5 |
98-9685 |
PAN-OIL Price: $337.48 |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $17.99 |
| 6 |
98-9350 |
BOLT Price: $0.98 |
| 7 |
98-9399 |
GASKET Price: $2.14 |
| 8 |
583379801 |
ARM.IDLER.30"SRD This part replaces 532420252. Price: $7.99 |
| 8 |
98-9686 |
PLUG-DRAIN This part replaces 98-7523. Price: $14.50 |
| 9 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 9 |
98-7524 |
GASKET Price: $5.09 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 15 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 22 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
529311701 |
KEEPER, BELT, BLACK This part replaces 532420253. Price: $4.99 |
| 26 |
532430313 |
Price: Call Us |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $49.99 |
| 29 |
593885101 |
Rods This part replaces 532420895. Price: $5.99 |
| 32 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 35 |
532419274 |
BLADE.MOWER.BAGGING.30" Price: $29.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 42 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 43 |
525568002 |
PULLEY.MANDREL 6.5" PULLEY This part replaces 532416877. Price: $24.99 |
| 72 |
583364501 |
CHUTE.UPPER.SRD.30R" This part replaces 532417236. Price: $59.99 |
| 73 |
532425274 |
CHUTE.LOWER.SRD.30R" Price: $69.99 |
| 74 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
