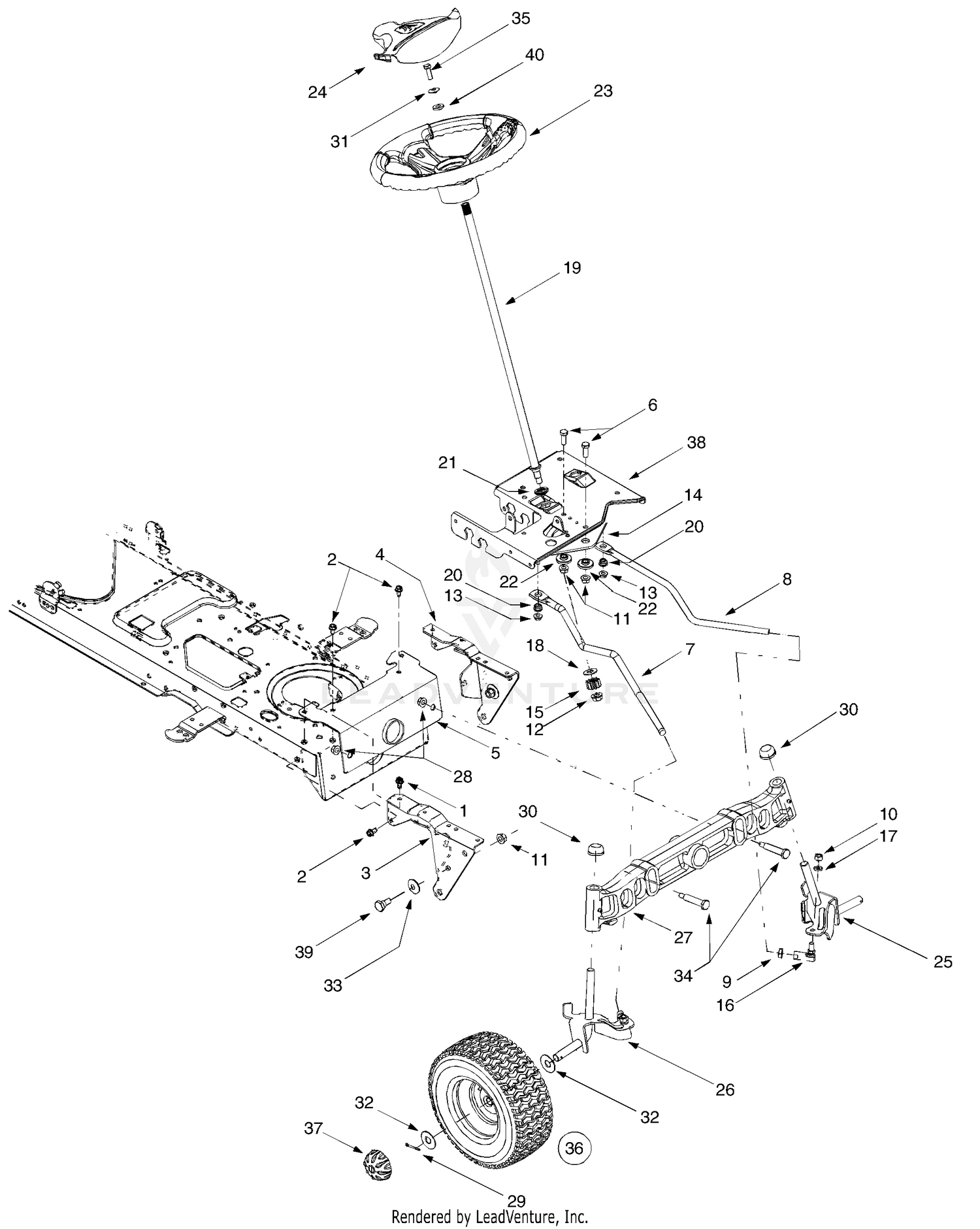

| Ref | Part Number | Description |
|---|
| 1 |
710-1260A |
Self-tapping Screw, 5/16-18 x .75 Price: $3.34 |
| 2 |
710-0604A |
Self-tapping Screw, 16-18 x .625 Price: $3.96 |
| 3 |
783-0726E |
PIVOT SUPPORT BRACKET (RH) Not Available This part replaces 783-0726B. Price: |
| 4 |
783-0727B |
PIVOT SUPPORT BRACKET (LH) Not Available This part replaces 783-0727A. Price: |
| 5 |
783-0728B-0637 |
PIVOT BAR BRACKET (POWDER BLACK) Not Available This part replaces 783-0728. Price: |
| 6 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1 (Grade 5) Price: $3.78 |
| 7 |
711-1408 |
DRAG LINK (RH) Not Available Price: |
| 8 |
711-1409A |
DRAG LINK (LH) Not Available Price: |
| 9 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 10 |
712-0241 |
Hex Nut, 3/8-24 (Grade 2) Price: $3.86 |
| 11 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 12 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 13 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 14 |
717-1550F |
Steering Gear This part replaces 717-1550D. Price: $61.81 |
| 15 |
717-1554 |
Steering Pinion Gear Price: $9.44 |
| 16 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 17 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 18 |
736-3084 |
Flat Washer, .51 x 1.12 x .06 Price: $4.39 |
| 19 |
738-1001A |
Steering Shaft, .625 OD x 24.4 Not Available Price: |
| 20 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 21 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656. Price: $4.69 |
| 22 |
738-0372B |
Shoulder Spacer, .38 ID Price: $8.78 |
| 23 |
631-04008B |
Steering Wheel Assembly This part replaces 631-04008. Price: $87.97 |
| 24 |
731-04066A |
Steering Wheel Cover This part replaces 731-04066. Price: $15.80 |
| 28 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 29 |
714-0162 |
Cotter Pin Price: $4.29 |
| 31 |
736-0242 |
Bell Washer, .34 x .872 Price: $3.75 |
| 32 |
736-0285 |
Flat Washer, .635 x 1.589 x .06 Price: $3.89 |
| 33 |
736-0331 |
Bell Washer, .39 x 1.13 x .062 Price: $3.50 |
| 34 |
738-1011A |
SHOULDER SCREW .50 x 2.23 3/8-16 This part replaces 738-1011. Price: $7.65 |
| 35 |
710-0643 |
Hex Bolt, 5/16-18 X 1 Price: $5.99 |
| 36 |
634-0105B |
Wheel Assembly (Model D609G) Not Available This part replaces 634-0105A. Price: |
| 36 |
734-1731 |
Tire Only, Square Shoulder Price: $97.72 |
| 36 |
934-0172A |
RIM ASSEMBLY Not Available This part replaces 634-0172. Price: |
| 37 |
731-2290B |
HUB CAP This part replaces 731-2290A. Price: $3.82 |
| 38 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-0653F. Price: $78.74 |
| 39 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
