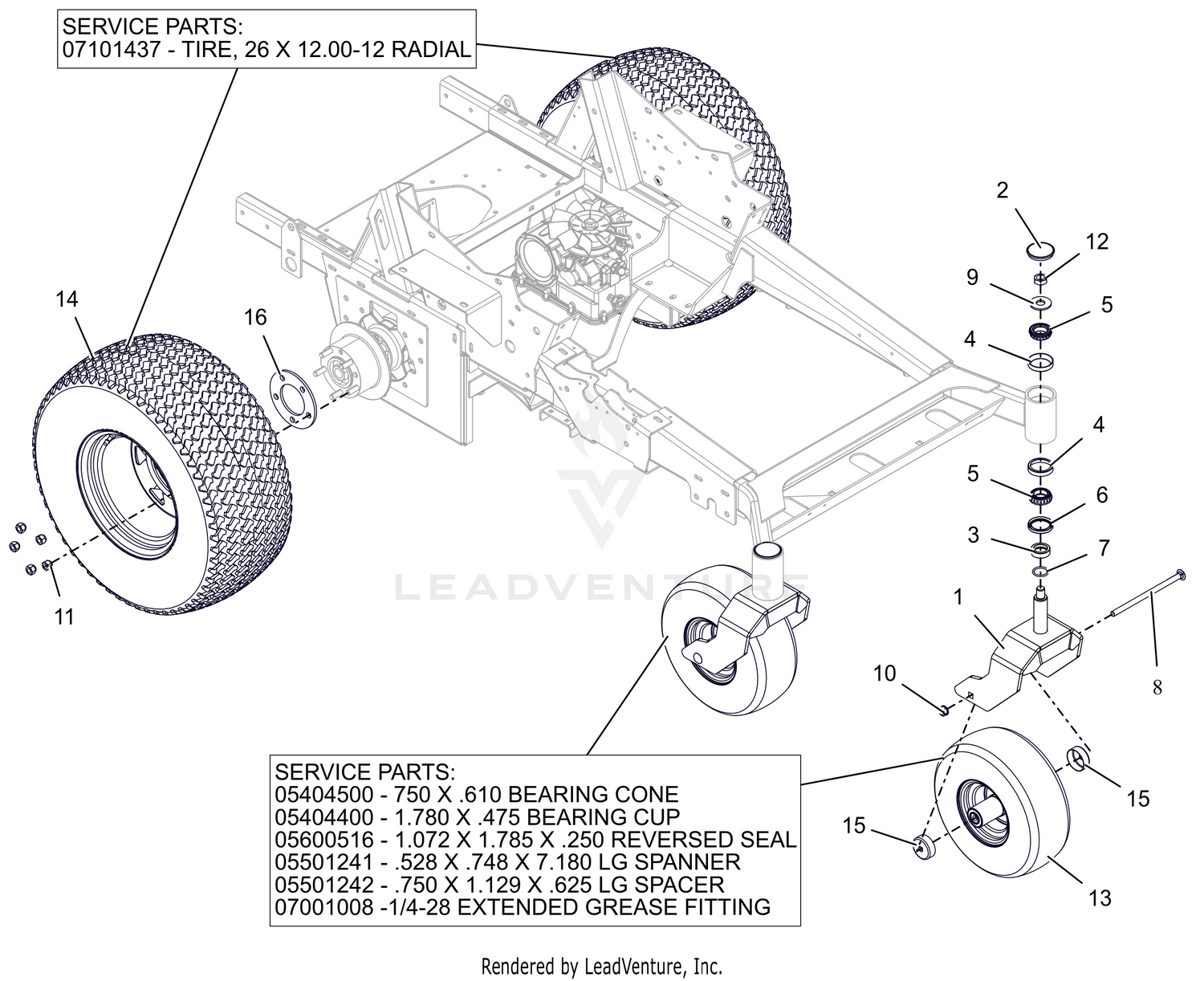

| Ref | Part Number | Description |
|---|
| 1 |
09372353 |
WLDMT, CASTER FORK (RED) Price: $142.95 |
| 2 |
03925900 |
CAP, DUST Price: $10.45 |
| 3 |
04861500 |
SPCR, FRONT CASTER FORK Price: $12.45 |
| 4 |
05404600 |
BRG-CUP 2.328X.465 Price: $13.45 |
| 5 |
05404700 |
BRG-CONE 1.25X.66 Price: $19.95 |
| 6 |
05600432 |
SEAL, OIL 1.75 X 2.332 X .312 Price: $10.95 |
| 7 |
05600515 |
O-RING, Price: $2.45 |
| 8 |
06200510 |
BLT-RHSN .50-13X9.00 G5 ZCC NS Price: $7.45 |
| 9 |
06401201 |
WSHR-FL-STL 0.812X2X0.148 ZCC Price: $3.95 |
| 10 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 11 |
06500926 |
NUT- WHEEL .50-20 ZCC Price: $1.45 |
| 12 |
06500933 |
NUT, JAM-TOPLOCK .750-16 ZCC Price: $3.95 |
| 13 |
07101621 |
ASM-WHL 15X6.00-6 PRELOAD SEMI - FLAT BLACK - SMOOTH TREAD This part replaces 07101406. Price: $186.95 |
| 14 |
07101436 |
ASM-WHL/TIRE26X12.00-12 RAD - LOW GLOSS BLACK - TURF TREAD Price: $285.95 |
| 15 |
09357800 |
SHIELD, WHEEL BEARING Price: $10.95 |
