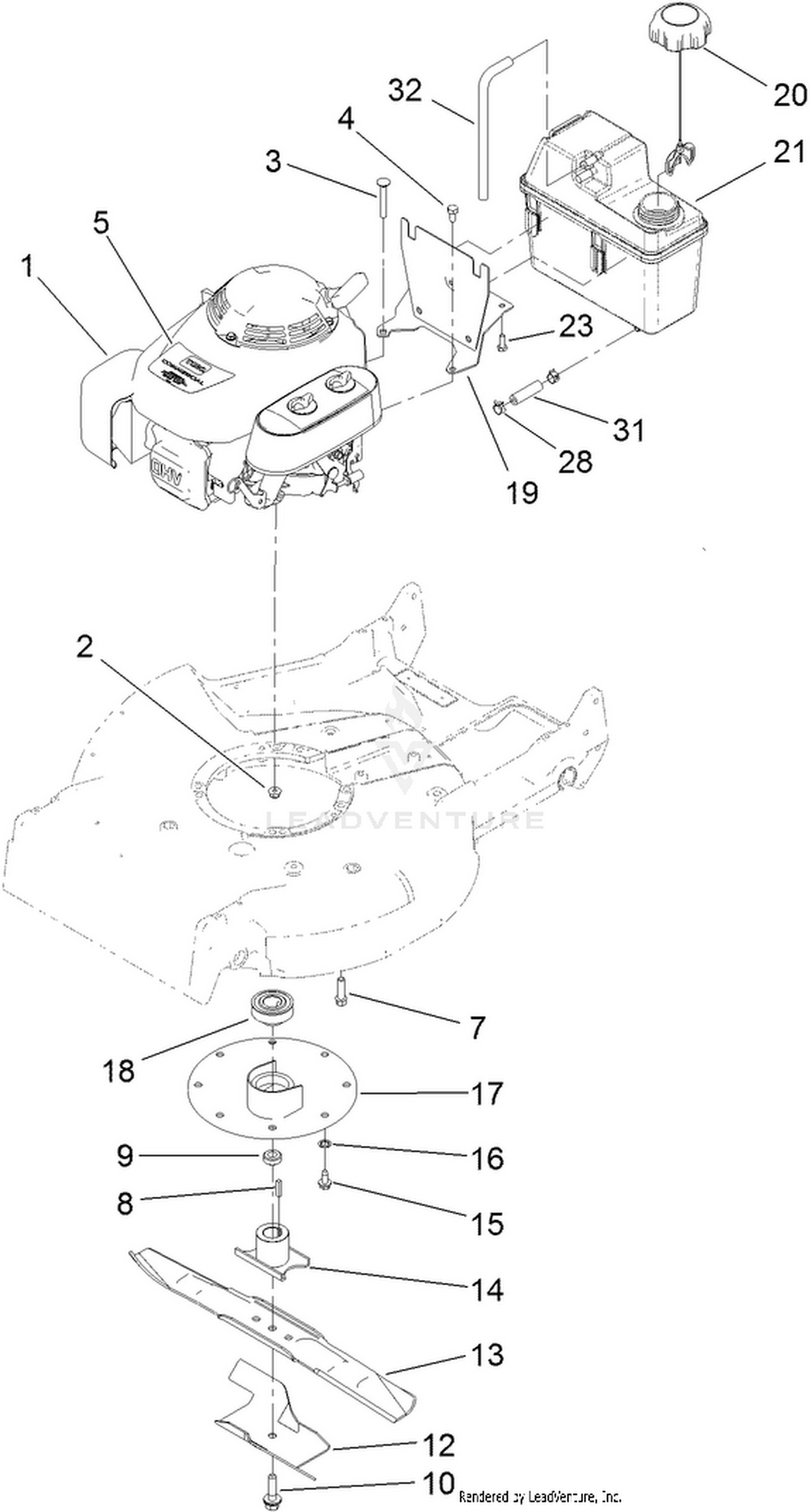

| Ref | Part Number | Description |
|---|
| 2 |
32128-25 |
NUT-HF Price: $3.19 |
| 3 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 4 |
3210-2 |
SCREW-HH Price: $0.41 |
| 5 |
125-8405 |
DECAL-ENGINE, HONDA This part replaces 112-9974. Price: $4.42 |
| 7 |
103-2678 |
SCREW-SHOULDER Price: $3.52 |
| 8 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 9 |
103-3795 |
SPACER-RETAINER, BLADE Price: $4.76 |
| 10 |
125-2466 |
BOLT-BLADE This part replaces 105-8579. Price: $2.20 |
| 12 |
92-1599-03 |
STIFFENER-BLADE Price: $50.57 |
| 13 |
91-2256-03 |
BLADE-21 INCH Price: $21.88 |
| 14 |
52-2170-03 |
RETAINER-BLADE Price: $48.60 |
| 15 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 16 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 17 |
125-8370 |
PROTECTOR-CRANKSHAFT This part replaces 65-5860. Price: $67.71 |
| 18 |
46-7910 |
PULLEY-DRIVER Price: $27.35 |
| 19 |
119-7837-03 |
MOUNT-TANK Price: $46.50 |
| 20 |
137-4127 |
CAP-FUEL This part replaces 109-6776. Price: $22.05 |
| 21 |
114-0280 |
TANK-FUEL Price: $91.81 |
| 23 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 28 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 31 |
119-7856 |
HOSE-FUEL Price: $2.90 |
