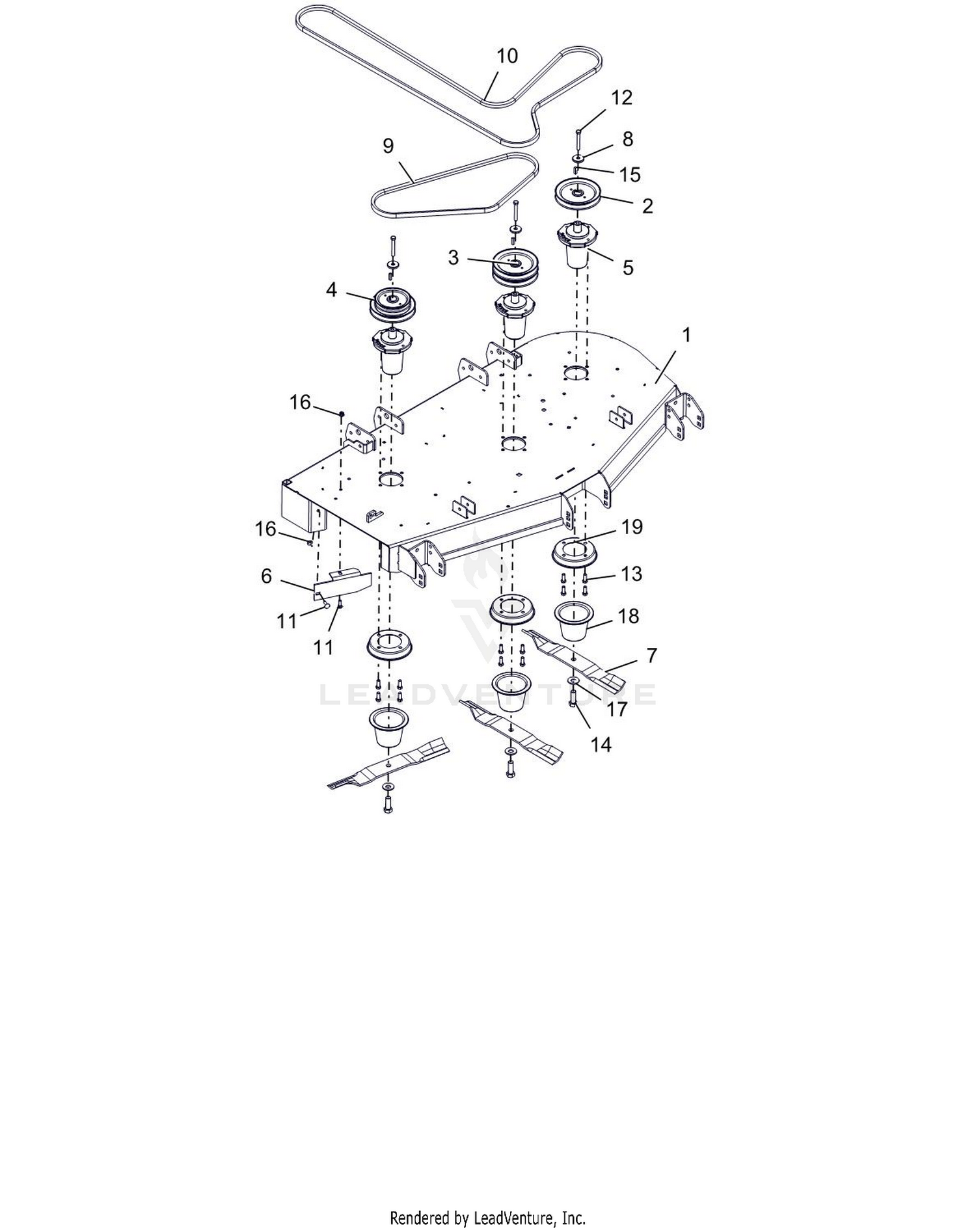

| Ref | Part Number | Description |
|---|
| 1 |
59109300 |
DECK, PT52 W/SAFETY DECALS Price: $764.95 |
| 2 |
59211700 |
KIT-07332167 PULLEY REPLACEMNT This part replaces 07332167. Price: $73.45 |
| 3 |
07332300 |
PULLEY, DOUBLE 1.000 ID X 6.000 OD This part replaces 07332367. Price: $70.45 |
| 4 |
07340300 |
PULLEY, DBL-1"IDX6.00"&4.75"OD Price: $63.45 |
| 5 |
59125000 |
ASM, MAINT FREE ALUM SPINDLE This part replaces 59225700. Price: $214.45 |
| 7 |
00450300 |
BLADE, 18.00" MOWER (HI-LIFT) Price: $25.95 |
| 8 |
04530500 |
RETAINER, SHEAVE Price: $7.95 |
| 9 |
07200036 |
V-BELT, B-COGGED Price: $55.95 |
| 10 |
07200706 |
BELT, B-SECTI0N EPDM RAW EDGE Price: $102.95 |
| 11 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 12 |
05901813 |
BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45 |
| 13 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 14 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 15 |
06611200 |
KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95 |
| 16 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 17 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 18 |
05011500 |
GUARD, SPINDLE LOWER Price: $24.25 |
