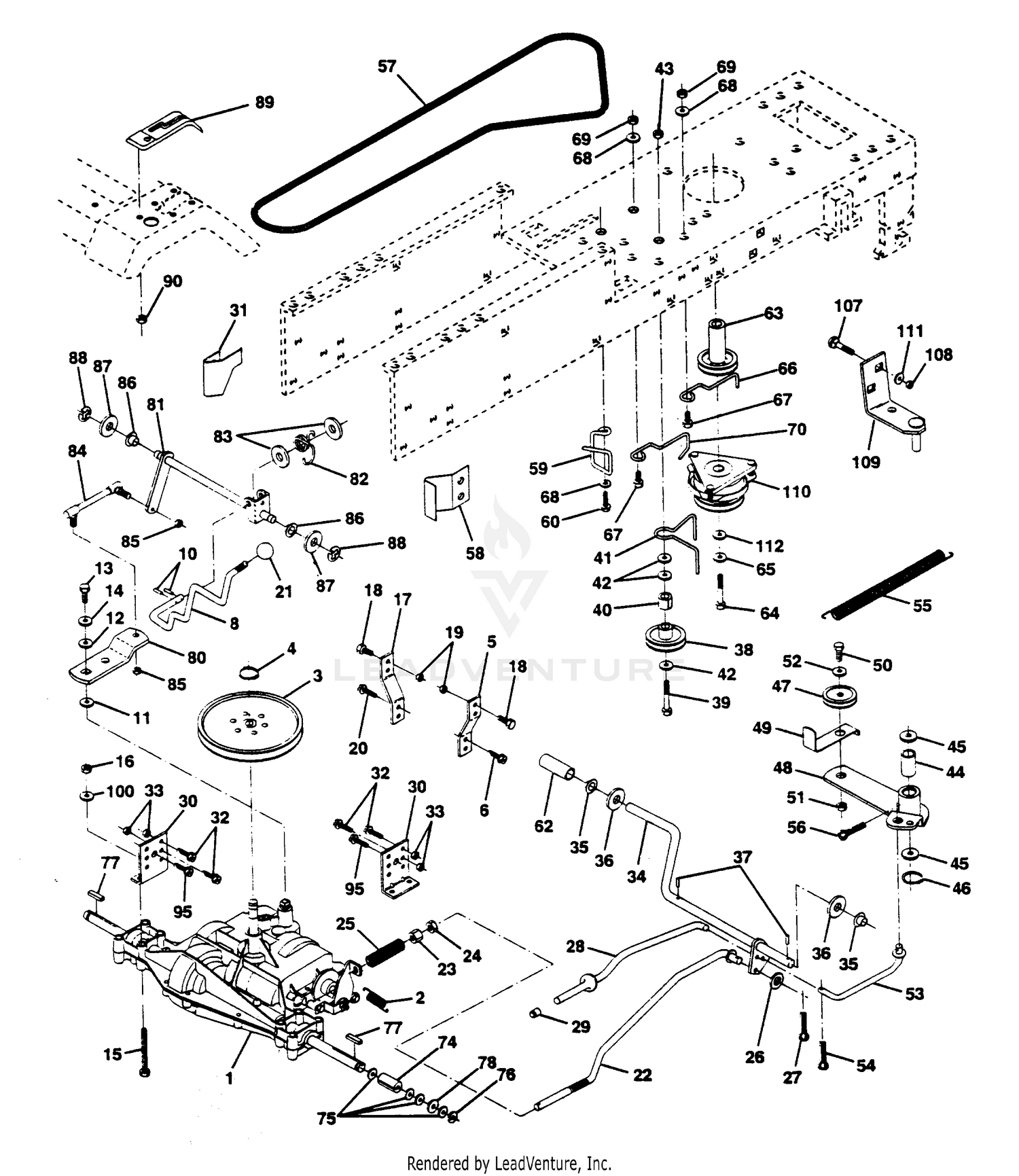

| Ref | Part Number | Description |
|---|
| 1 |
222-8 |
CAP-GAS Price: $65.84 |
| 1 |
532145605 |
Transaxle 6sp Dana LT Model # 4360-96 (AYP part number) This part replaces 532142607. Price: $499.99 |
| 2 |
3-9022 |
DISCONTINUED Price: Call Us |
| 2 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 3 |
289-4 |
DISCONTINUED Price: Call Us |
| 3 |
532123666 |
Pulley Transaxle 20"tires (AYP part number) Price: $22.99 |
| 4 |
224-173 |
DISCONTINUED Price: Call Us |
| 4 |
812000028 |
Ring Retainer # 5100-62 (AYP part number) Price: $4.99 |
| 5 |
532121520 |
Strap Torque 30 Degrees (AYP part number) Price: $3.99 |
| 6 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 6 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 7 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 8 |
3-9334 |
DISCONTINUED Price: Call Us |
| 8 |
532141002 |
Rod Shifter (AYP part number) Price: $16.58 |
| 9 |
3-8917 |
DISCONTINUED Price: $18.99 |
| 10 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 10 |
876020416 |
Pin Cotter 1/8 X 1 Cad (AYP part number) Price: $3.99 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
532105701 |
Washer Plate Shf 388 Sq Hole (AYP part number) Price: $3.99 |
| 12 |
322-10 |
SCREW-HH Price: $0.70 |
| 12 |
819151216 |
Washer 15/32 X 3/4 X 16 Ga (AYP part number) Price: Call Us |
| 13 |
3-6987 |
DISCONTINUED Price: Call Us |
| 13 |
871040412 |
Bolt Fin Hex 1/4-28unfx3/4 Gr8 (AYP part number) Price: $3.99 |
| 14 |
323-10 |
SCREW-HH Price: $0.89 |
| 14 |
810040400 |
Washer Lock Hvy Helical 1/4 (AYP part number) Price: $3.99 |
| 15 |
3-6991 |
DISCONTINUED Price: Call Us |
| 15 |
874780544 |
Bolt Fin Hex 5/16-18uncx 2 3/4 (AYP part number) Price: $3.99 |
| 16 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 16 |
873800500 |
Nut Lock H w/insert 5/16-18 (AYP part number) Price: $2.99 |
| 17 |
3-9161 |
DISCONTINUED Price: Call Us |
| 17 |
532121520 |
Strap Torque LT (AYP part number) Price: $3.99 |
| 18 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 19 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 20 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 21 |
532121274 |
Knob Duckhead 3/8-16unc Blk (AYP part number) Price: $5.99 |
| 22 |
532130804 |
Rod Brake Blk Zinc 27 326 (AYP part number) Price: $17.99 |
| 23 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
819131316 |
Washer 13/32 X 13/16 X 16 Ga (AYP part number) Price: $2.99 |
| 27 |
876020412 |
Pin Cotter 1/8 X 3/4 Cad (AYP part number) Price: $3.99 |
| 28 |
532133261 |
Rod Brake Parking 14 500 (AYP part number) Price: $3.99 |
| 29 |
532071673 |
Cap Brake Parking Black (AYP part number) Price: $3.99 |
| 30 |
532130807 |
Bracket Mtg Transaxle (AYP part number) Price: $3.99 |
| 31 |
532127275 |
Keeper Belt LH LT 14 Ga (AYP part number) Price: $3.99 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
873800500 |
Nut Lock 5/16-18 (AYP part number) Price: $2.99 |
| 34 |
532122424 |
Shaft Asm Pedal Foot 1 930 (AYP part number) Price: $21.56 |
| 35 |
532120183 |
Bearing Nylon Blk 629 Id (AYP part number) Price: $2.99 |
| 36 |
819211616 |
Washer 21/32 X 1 X 16 Ga (AYP part number) Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
Pulley Idler Flat (AYP part number) Price: $17.99 |
| 39 |
874760644 |
Bolt Fin Hex 3/8-16unc X 2-3/4 (AYP part number) Price: $3.99 |
| 40 |
532124965 |
Spacer Split 395 X 59 Bzp (AYP part number) Price: $3.99 |
| 41 |
532109070 |
Keeper Belt Retainer (AYP part number) Price: $3.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 43 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 44 |
532105706 |
Bearing Nyl 503 X 628 X 1 25 (AYP part number) Price: $3.99 |
| 45 |
532110812 |
Washer Hardened (AYP part number) Price: $3.10 |
| 46 |
812000039 |
Ring Klip #t5304-50 (AYP part number) Price: $3.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532123789 |
Bellcrank Asm Clutch (AYP part number) Price: $13.07 |
| 49 |
532123205 |
Retainer Belt Style Spring (AYP part number) Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 51 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 52 |
819131316 |
Washer 13/32 X 13/16 X 16 Ga (AYP part number) Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 54 |
876020412 |
Pin Cotter 1/8 X 3/4 Cad (AYP part number) Price: $3.99 |
| 55 |
532105709 |
Spring Return Clutch 6 75 (AYP part number) Price: $7.99 |
| 56 |
876020412 |
Pin Cotter 1/8 X 3/4 Cad (AYP part number) Price: $3.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 This part replaces 532130801. Price: $27.99 |
| 58 |
532127274 |
Keeper Belt RH LT Pnt/zinc 16g (AYP part number) Price: $2.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $14.99 |
| 60 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 62 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 63 |
532140189 |
Engine Pulley LT/YT (AYP part number) Price: $29.99 |
| 64 |
501606501 |
Speed Clip This part replaces 871170768. Price: $1.99 |
| 65 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 66 |
532121218 |
Keeper Belt Engine LH LT (AYP part number) Price: $2.86 |
| 67 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 68 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 69 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 70 |
532105730 |
Keeper Belt Engine BZP Zinc (AYP part number) Price: $2.99 |
| 74 |
532109502 |
Spacer Split (AYP part number) Price: $3.99 |
| 75 |
532121749 |
Washer 25/32 X 1 1/4 X 16 Ga (AYP part number) Price: $1.99 |
| 76 |
812000001 |
E-ring #5133-75 (AYP part number) Price: $2.99 |
| 77 |
532123583 |
Key Square 2 0 X 1845/ 1865 (AYP part number) Price: $2.99 |
| 78 |
532121748 |
Washer 25/32 X 1-5/8 X 16 Ga (AYP part number) Price: $1.99 |
| 80 |
532131487 |
Arm Shift Transaxle (AYP part number) Price: $2.99 |
| 81 |
532161077 |
This part replaces 532136933. Price: $17.99 |
| 82 |
532123782 |
Spring Torsion T/a (AYP part number) Price: $2.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532132183 |
Rod Tie Shift Adj Ball (AYP part number) Price: $37.99 |
| 85 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 873530400. Price: $2.99 |
| 86 |
532071208 |
Bushing Rod Strg 629/632 Id (AYP part number) Price: $3.99 |
| 87 |
819212016 |
Washer 21/32 X 1-1/4 X 16 Ga (AYP part number) Price: $3.99 |
| 88 |
812000008 |
Ring Klip #5304-62 (AYP part number) Price: $3.99 |
| 89 |
532139991 |
Console Shift 6sp W/ign LT (AYP part number) Price: $27.99 |
| 90 |
532124346 |
Nut Self-thd wsh-hd 1/4 zinc (AYP part number) Price: $3.99 |
| 95 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 100 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 107 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 108 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 109 |
532137141 |
Bracket Asm. Clutch (AYP part number) Price: $3.99 |
| 110 |
532137140 |
Clutch Electric (AYP part number) Price: $279.99 |
| 111 |
819111012 |
Washer 11/32 x 5/8 x 12 Ga. (AYP part number) Price: $3.99 |
