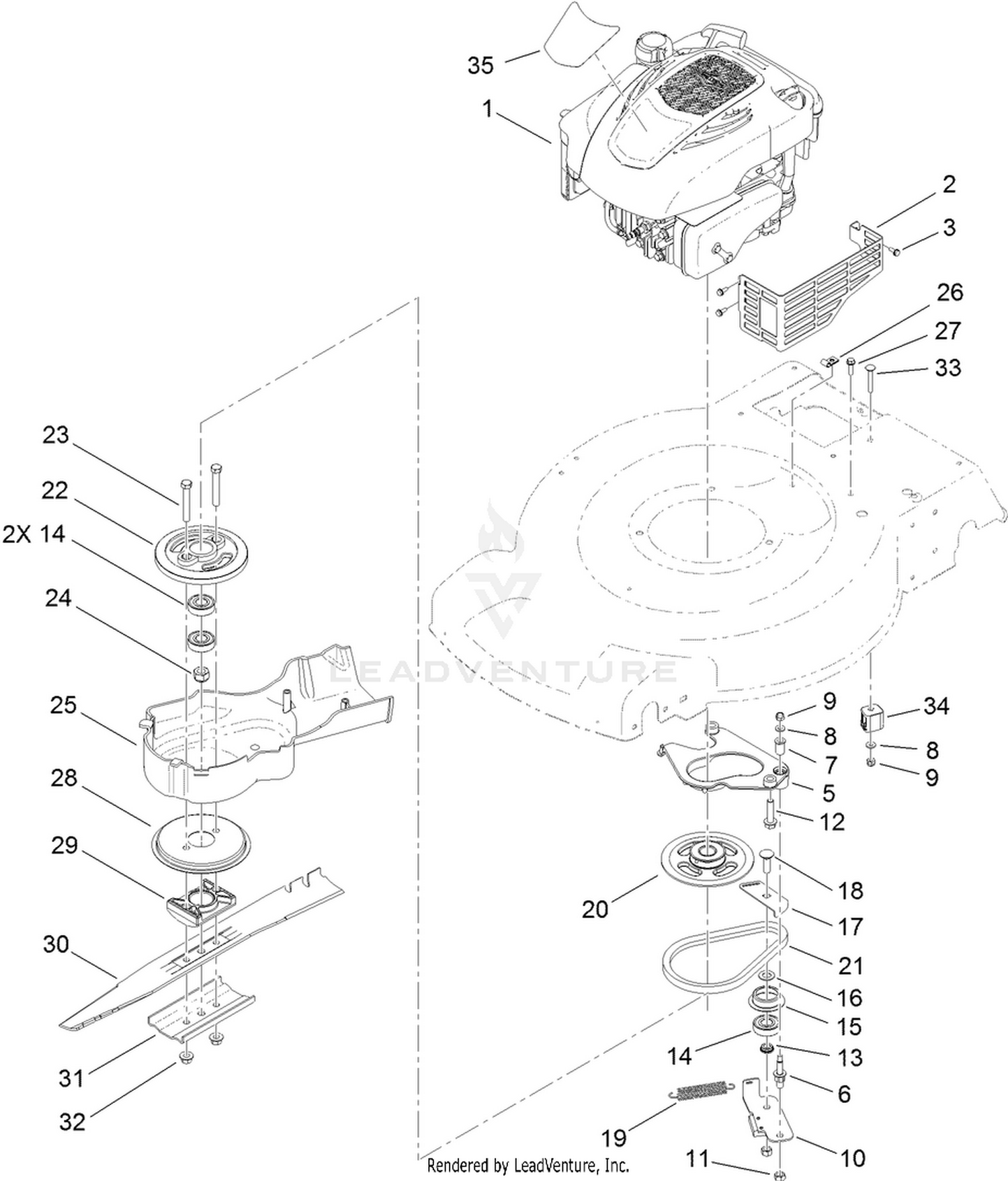

| Ref | Part Number | Description |
|---|
| 2 |
104-7577-03 |
SHIELD-MUFFLER Price: $16.78 |
| 3 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 5 |
108-9341 |
PLATE-ANCHOR Price: $20.35 |
| 6 |
107-0759 |
BOLT-SHOULDER Price: $6.54 |
| 7 |
107-0797 |
BUSHING Price: $3.48 |
| 8 |
3256-16 |
WASHER-FLAT Price: $0.39 |
| 9 |
3296-73 |
NUT-LOCK, NI Price: $3.59 |
| 10 |
125-1063 |
PLATE-BRAKE This part replaces 120-3327. Price: $15.98 |
| 11 |
603773 |
LOCKNUT Price: $2.09 |
| 12 |
32144-102 |
SCREW-HWH Price: $3.19 |
| 13 |
107-0758 |
SPACER-BEARING Price: $2.09 |
| 14 |
38-7820 |
BEARING-BALL This part replaces 100-1048. Price: $13.99 |
| 15 |
138-3217 |
RETAINER-BELT This part replaces 108-3790. Price: $2.04 |
| 16 |
605256 |
SPACER Price: $1.31 |
| 17 |
138-3222 |
PLATE-GUIDE This part replaces 107-7471. Price: $2.28 |
| 18 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 19 |
108-3792 |
SPRING-TENSION, BRAKE Price: $7.49 |
| 20 |
117-5970 |
PULLEY Price: $21.57 |
| 21 |
110-1790 |
BELT Price: $26.26 |
| 22 |
126-8108 |
DRUM This part replaces 107-0754. Price: $36.33 |
| 23 |
3211-42 |
SCREW-HH Price: $3.47 |
| 24 |
108-9342 |
NUT-HEX Price: $3.49 |
| 25 |
115-2892 |
COVER Price: $16.85 |
| 26 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 27 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 28 |
138-3225 |
DISK This part replaces 108-3787. Price: $7.95 |
| 29 |
107-7487 |
SUPPORT-BLADE Price: $14.79 |
| 30 |
131-4547-03 |
BLADE-22 INCH This part replaces 108-9764-03. Price: $21.88 |
| 31 |
108-3766-03 |
SUPPORT-BLADE Price: $7.65 |
| 32 |
54-9190 |
NUT-LOCK Price: Call Us |
| 33 |
3229-5 |
SCREW-CARR Price: $1.29 |
| 34 |
106-6801 |
ANCHOR-CABLE Price: $4.49 |
