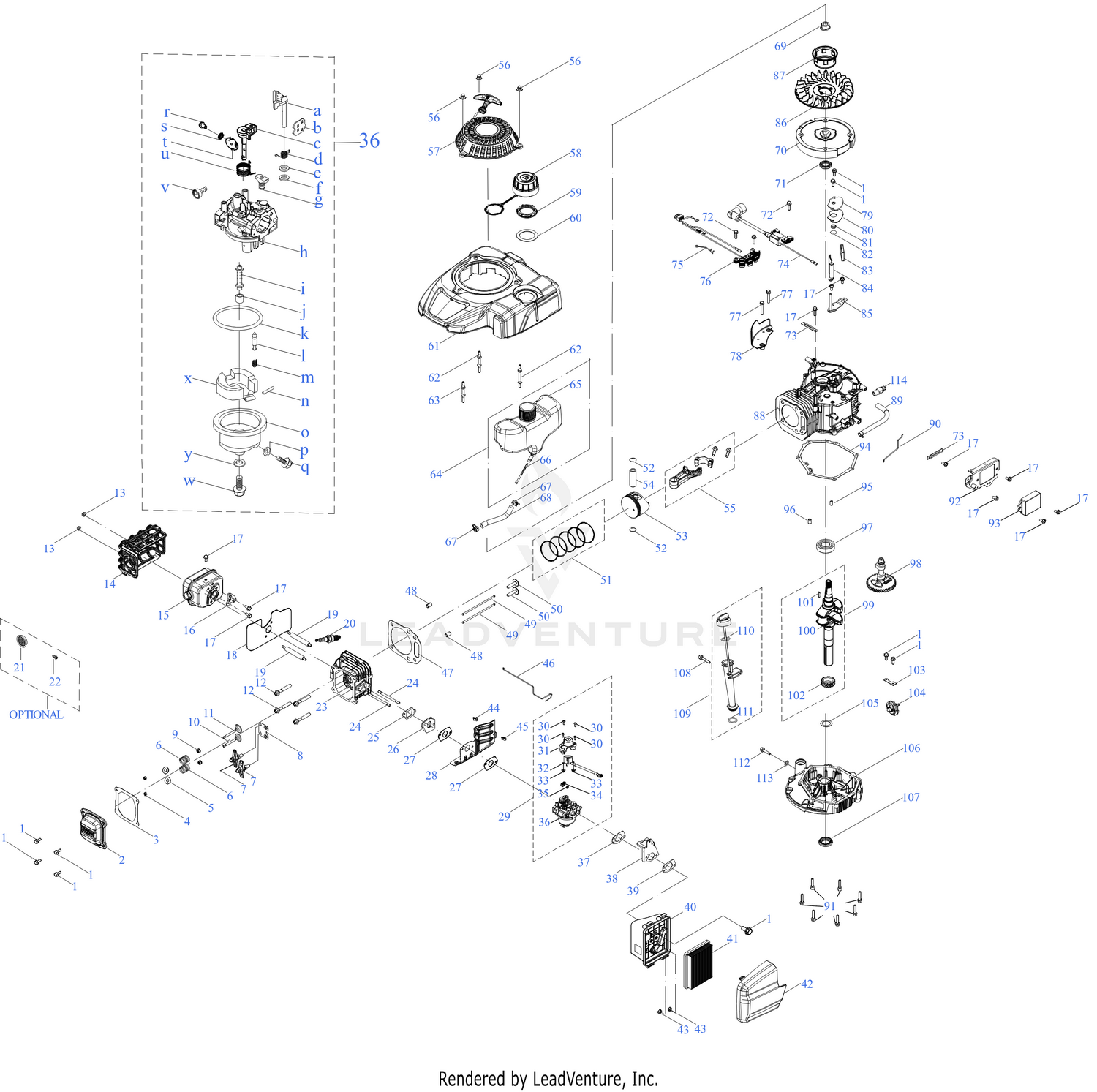

BC72R0 General Assembly
Parts (130)
| Ref | Part Number | Description |
|---|---|---|
| S | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| a | 711P06281A | CHOKE SHAFT Price: $2.45 |
| d | 732P05200A | CHOKE RETURN SPRING Price: $2.45 |
| k | 721-04710A | FLOAT BOWL O-RING Price: $2.15 |
| l | 793P00165A | NEEDLE VALVE Price: $4.13 |
| m | 732P05138A | NEEDLE VALVE SPRING Price: $2.63 |
| n | 711P06053A | FLOAT PIN Price: $2.45 |
| o | 608P05002 | FUEL BOWL Price: $4.92 |
| p | 721P04711A | FUEL DRAIN PLUG GASKET Price: $1.48 |
| q | 710-06227 | FUEL DRAIN PLUG Price: $2.98 |
| r | 710-06230 | SCREW-3Mx6 Price: $2.98 |
| t | 708P05018 | THROTTLE PLATE Price: $2.45 |
| v | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| w | 710-06226 | FUEL BOWL BOLT Price: $2.98 |
| x | 731P28380 | FLOAT Price: $4.23 |
| 1 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 | 951-14609A | VALVE COVER Price: $14.42 |
| 3 | 751P18586A | VALVE COVER GASKET Price: $3.94 |
| 4 | 751P16830A | VALVE CLIP Price: $1.26 |
| 5 | 751P16831A | VALVE SPRING SEAT Price: $1.86 |
| 6 | 951-12116A | VALVE SPRING Price: $2.88 |
| 7 | 951-11606A | ROCKER ARM Price: $29.12 |
| 8 | 951-16027A | PUSH ROD GUIDE Price: $4.25 |
| 9 | 921-04705A | INTAKE VALVE SEAL Price: $5.10 |
| 10 | 751P22731 | EXHAUST VALVE Price: $3.70 |
| 11 | 751P22732 | INTAKE VALVE Price: $3.70 |
| 12 | 710-06200 | SCREW M8 x 54 GR10 Price: $5.59 |
| 13 | 712-05071 | NUT HEX M6-1 Price: $1.70 |
| 14 | 751P19208 | MUFFLER SHIELD Price: $22.69 |
| 15 | 751P18948A | MUFFLER Price: $9.99 |
| 16 | 951-14428A | CHOKE TEMP CONTROL THERMOSTAT Price: $36.29 |
| 17 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 18 | 751P18909A | MUFFLER GASKET Price: $5.60 |
| 19 | 710-05094 | STUD M6-1 x 95 Price: $3.78 |
| 20 | 951-14437A | SPARK PLUG (F5RTC/RN11YC4/BPR5ES) Price: $6.35 |
| 21 | 951-10351A | SPARK ARRESTOR Price: $48.91 |
| 22 | 710-04983 | SCREW M3.5 x 9.5 Price: $3.65 |
| 23 | 751P22733 | CYLINDER HEAD Price: $44.51 |
| 24 | 951-15580 | STUD M6 x 90 Price: $5.25 |
| 25 | 751P18910A | MUFFLER GASKET Price: $4.45 |
| 26 | 951-15671A | CARBURETOR INSULATOR Price: $6.68 |
| 27 | 721P05941A | CARBURETOR GASKET Price: $2.98 |
| 28 | 751P22934 | CARB HEAT SHIELD Price: $2.11 |
| 29 | 651P08904 | CARBURETOR Price: $38.68 |
| 30 | 710-05268 | SCREW M4-0.7x10 Price: $1.92 |
| 31 | 731P19431 | THROTTLE MOTOR COVER Price: $5.29 |
| 32 | 725P17326 | CARB SERVOMOTOR Price: $8.47 |
| 33 | 712-05056 | FLANGE NUT M4-0.8 Price: $2.15 |
| 34 | 731P19432 | CARBURETOR DAMPER Price: $5.29 |
| 35 | 732P06906 | DAMPER SPRING Price: $3.95 |
| 36 | 651P08903 | CARBURETOR Price: $29.67 |
| 37 | 721P05942A | AIR FILTER BRACKET GASKET Price: $5.20 |
| 38 | 908-05265 | AIR FILTER BRACKET Price: $8.03 |
| 39 | 951-14419A | AIR FILTER BASE GASKET Price: $7.08 |
| 40 | 931-13118A | AIR FILTER HOUSING BASE Price: $11.56 |
| 41 | 951-15245 | AIR FILTER Price: $13.77 |
| 42 | 931-13119A | AIR FILTER COVER Price: $10.52 |
| 43 | 712-05015 | HEX NUT Price: $5.78 |
| 44 | 931-10630A | WIRE SUPPORT CLAMP Price: $4.75 |
| 45 | 731P24131 | WIRE SUPPORT CLAMP Price: $2.45 |
| 46 | NOT | SERVICEABLE Not Serviceable Price: Call Us NOT SERVICEABLE |
| 47 | 751P18970A | CYLINDER HEAD GASKET Price: $2.57 |
| 48 | 715P04090A | PIN (10MMx16MM) Price: $2.95 |
| 49 | 751P18971A | PUSH ROD Price: $1.78 |
| 50 | 951-14432A | TAPPET Price: $7.49 |
| 51 | 751P22935 | PISTON RING SET Price: $10.59 |
| 52 | 951-11632A | PISTON PIN SNAP RING Price: $3.53 |
| 53 | 751P22936 | PISTON Price: $10.59 |
| 54 | 751P18974A | PISTON PIN Price: $1.78 |
| 55 | 651P06875A | CONNECTING ROD Price: $8.56 |
| 56 | 712-04276A | ACORN NUT M6-1 Price: $5.38 |
| 57 | 951-05360A | RECOIL STARTER ASSEMBLY Price: $50.15 |
| 58 | 951-15255A | FUEL CAP W/TETHER Price: $23.25 |
| 59 | 931-10290A | FUEL TANK NUT Price: $4.85 |
| 60 | 951-14406A | FUEL TANK GROMMET Price: $9.68 |
| 61 | 931-05657B | ENGINE SHROUD Price: $25.58 |
| 62 | 951-14397 | STARTER/SHROUD REAR STUD Price: $8.66 |
| 63 | 951-14398 | STARTER/SHROUD FRONT STUD Price: $8.66 |
| 64 | NSCO | Not Serviceable/ Components Only Price: Call Us |
| 65 | 931-12771A | FUEL TANK Price: $43.89 |
| 66 | 951-12296A | FUEL FILTER Price: $8.68 |
| 67 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 68 | 735-05053A | FUEL HOSE Price: $8.96 |
| 69 | 712-04287A | FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 70 | 751P22937 | FLYWHEEL Price: $30.73 |
| 71 | 951-11596A | UPPER CRANKSHAFT SEAL Price: $5.44 |
| 72 | 710-04918 | BOLT M6-1 x 20 GR8.8 Price: $3.56 |
| 73 | 951-11622A | FLEXIBLE CLAMP Price: $3.42 |
| 74 | 725P18801 | IGNITION COIL Price: $13.77 |
| 75 | 751P22942 | WIRE GUIDE Price: $1.58 |
| 76 | 725P18803 | ALTERNATOR Price: $25.43 |
| 77 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 78 | 951-14597A | ENGINE BRAKE COVER PLATE Price: $7.10 |
| 79 | 951-14404 | BREATHER COVER PLATE Price: $12.64 |
| 80 | 951-14405A | BREATHER GASKET Price: $7.39 |
| 81 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 82 | 951-11614A | BREATHER VALVE Price: $3.13 |
| 83 | 951-11730A | BREATHER SCREEN Price: $3.84 |
| 84 | 951-11529A | AIR VANE Price: $6.25 |
| 85 | 751P18911 | AIR VANE BRACKET Price: $5.00 |
| 86 | 751P21930 | COOLING FAN Price: $5.97 |
| 87 | 951-12161 | STARTER CUP Not Available Price: |
| 88 | 751P22944 | CRANKCASE Price: $96.45 |
| 89 | 951-15678 | BREATHER HOSE ASSEMBLY Price: $6.85 |
| 90 | 751P22945 | CHOKE LINKAGE Price: $1.58 |
| 91 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 92 | 708-06067 | CONTROL MODULE BRACKET Price: $6.03 |
| 93 | 725P18796 | MODULE Price: $36.03 |
| 94 | 751P18908A | CRANKCASE COVER GASKET Price: $6.63 |
| 95 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 96 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 97 | 751P11369A | BEARING Price: $5.19 |
| 98 | 751P22946 | CAMSHAFT Price: $14.30 |
| 99 | 651P08902 | CRANKSHAFT Price: $44.51 |
| 100 | 751P22947 | CRANKSHAFT W/KEY Price: $47.16 |
| 101 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 102 | 751P22699 | TIMING GEAR Price: $5.68 |
| 103 | 951-11609A | GOVERNOR GEAR MOUNTING PLATE Price: $3.94 |
| 104 | 751P19129 | GOVERNOR GEAR Price: $6.16 |
| 105 | 736-04491A | THRUST WASHER Price: $3.30 |
| 106 | 751P19013A | CRANKCASE COVER Price: $41.27 |
| 107 | 951-15686A | LOWER CRANKSHAFT OIL SEAL Price: $8.60 |
| 108 | 710-04980 | BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 109 | 651P08782 | DIPSTICK Price: $4.23 |
| 110 | 921-04663A | O-RING Price: $5.05 |
| 111 | 921-04697A | O-RING Price: $2.45 |
| 112 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 113 | 736-04440A | FLAT WASHER Price: $6.01 |
| 114 | 751-22949 | OIL DRAIN PLUG Price: $3.17 |
| 952ZBC72R0 | COMPLETE | ENGINE 224CC Price: $576.63 952ZBC72R0 |
