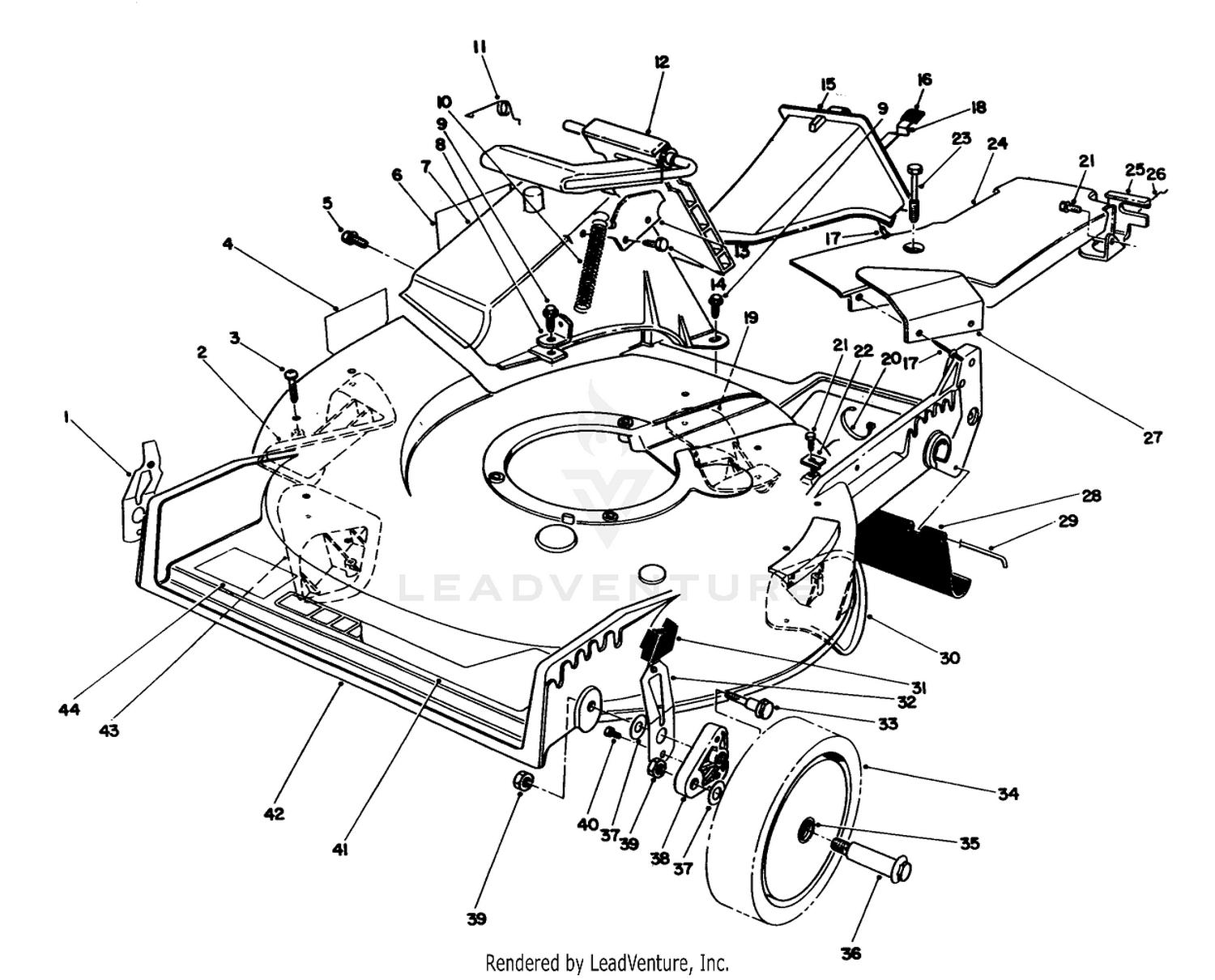

| Ref | Part Number | Description |
|---|
| 1 |
71-0561 |
RH SPRING ARM ASM This part replaces 71-0560. Price: $15.99 |
| 2 |
76-2130 |
KICKER Price: $24.99 |
| 3 |
32144-111 |
SCREW-PPH Price: $0.89 |
| 4 |
56-6270 |
DECAL-DANGER Price: $7.08 |
| 5 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 6 |
62-4060 |
DISCONTINUED Price: Call Us |
| 7 |
82-9151 |
TUNNEL-DISCHARGE Price: $148.99 |
| 8 |
71-9350 |
BRACKET-SPRING This part replaces 80-3780. Price: $13.99 |
| 9 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 10 |
76-4660 |
SPRING-DOOR Price: $10.99 |
| 11 |
80-3770 |
RETAINER-DOOR Price: $6.49 |
| 12 |
77-020 |
Discharge Door Assembly Price: Call Us |
| 13 |
76-4570 |
DOOR LATCH PLATE Price: $5.27 |
| 14 |
46-809 |
Screw-Hex Washer Hd.Self Tapping Price: Call Us |
| 15 |
77-0501 |
DISCHARGE PLUG ASSEMBLY Price: $71.99 |
| 16 |
76-4650 |
GRIP-LATCH Price: $4.89 |
| 17 |
3295-35 |
RIVET-HEAD, FLAT Price: $1.79 |
| 18 |
76-4640 |
LATCH-PLUG, DISCHARGE Price: $19.99 |
| 19 |
76-2150 |
KICKER Price: $24.99 |
| 20 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 21 |
32144-7 |
Screw-Muffler Price: Call Us |
| 22 |
62-3720 |
CLAMP-CABLE Price: $1.79 |
| 23 |
37-7260 |
SCREW-HWH Price: $5.09 |
| 24 |
52-7406 |
DISCONTINUED Price: Call Us |
| 25 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 82-5680. Price: $10.99 |
| 26 |
46-7030 |
RETAINER-CABLE Price: $5.29 |
| 27 |
77-0280 |
DISCONTINUED Price: Call Us |
| 28 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $26.99 |
| 29 |
33-3208 |
ROD-SHIELD Price: $13.99 |
| 30 |
76-2140 |
KICKER Price: $24.99 |
| 31 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 32 |
71-0570 |
LH SPRING ARM ASSEMBLY Price: $19.99 |
| 33 |
66-0561 |
SCREW-SHOULDER Price: $5.49 |
| 34 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $28.99 |
| 35 |
27-6250 |
BUSHING Price: $2.29 |
| 36 |
27-6231 |
WHEEL BOLT Price: $4.49 |
| 37 |
40-1940 |
WASHER Price: $1.59 |
| 38 |
66-0580 |
ARM-PIVOT, FRONT Price: $16.99 |
| 39 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 40 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 41 |
76-1950 |
DECAL - DECK Price: $14.99 |
| 42 |
16-1599 |
SP RECYCLER II DECK ASM This part replaces 14-3519. Price: $814.99 |
| 43 |
76-2120 |
KICKER Price: $24.99 |
