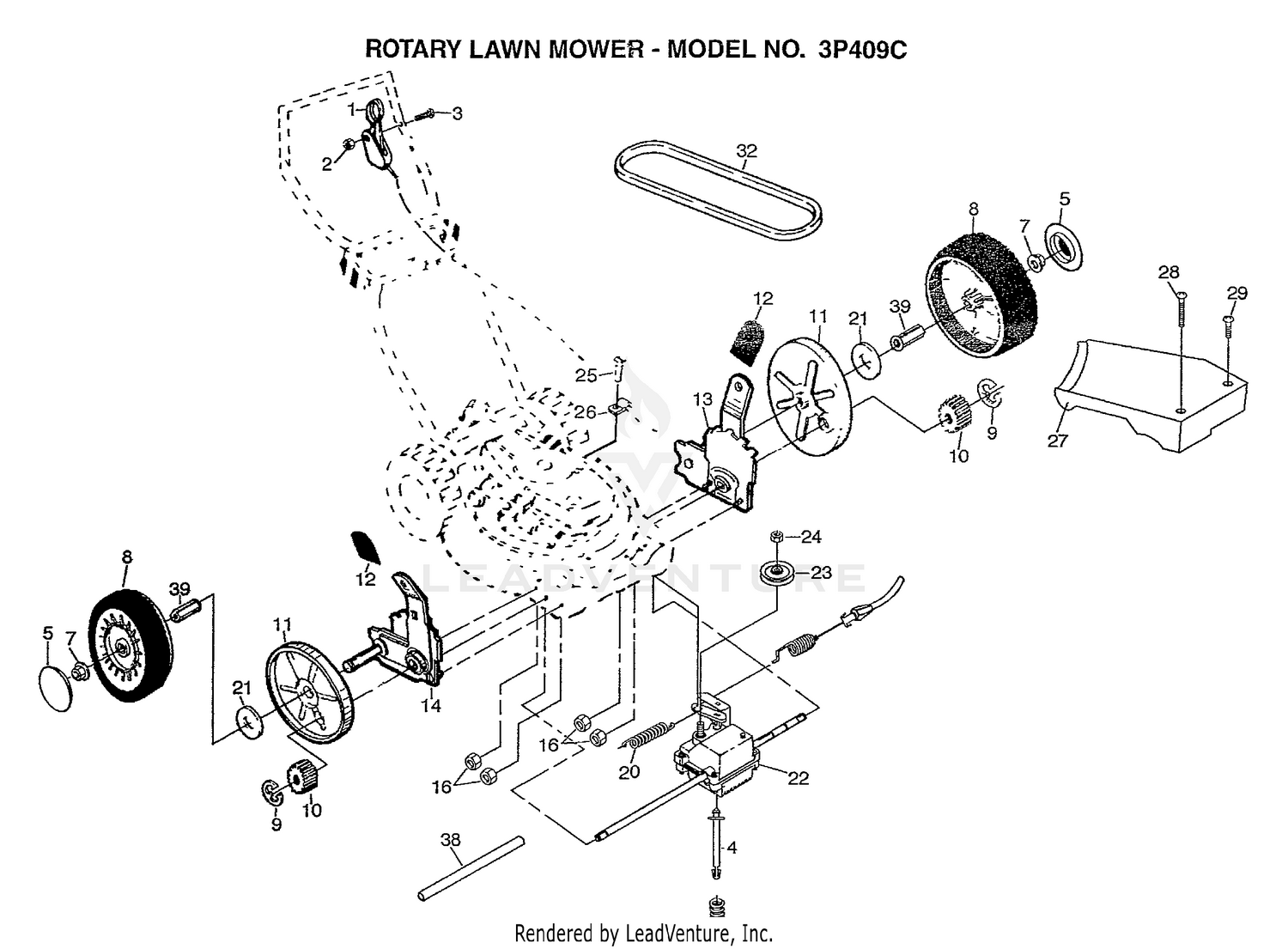

| Ref | Part Number | Description |
|---|
| 1 |
146323 |
CONTROL.DRV.56.25 Price: Call Us |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 2 |
63601 |
SUB= 73800400 Price: Call Us |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 3 |
144929 |
SCREW.HXHD.WASH. Price: Call Us |
| 3 |
32128-25 |
NUT-HF Price: $3.19 |
| 4 |
150495 |
SPRING.RETAINER. Price: Call Us |
| 4 |
98-9342 |
DECAL-SOLENOID, INFORMATION Price: $69.36 |
| 5 |
77400 |
HUB CAP Price: Call Us |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 7 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 7 |
145212 |
NUT.HXFLG.LOCK. Price: Call Us |
| 8 |
700953 |
WHEEL.8X2.LP.PR Price: Call Us |
| 9 |
12000058 |
E-RING.7/16.RE. Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
137054 |
PINION.GEAR Price: Call Us |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 11 |
88080 |
DUST SHROUD PM Price: Call Us |
| 12 |
87877 |
KNOB PM Price: Call Us |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 13 |
151521 |
WHEEL.ADJ.ASM.LH. Price: Call Us |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
151520 |
WHEEL.ADJ.ASM.RH. Price: Call Us |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
63601 |
SUB= 73800400 Price: Call Us |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 18 |
106-9224 |
DECAL-DANGER Price: $4.87 |
| 18 |
137090 |
SPRING.TENSION Price: Call Us |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
75192 |
SPRING Price: Call Us |
| 21 |
67725 |
WASHER FLUT Price: Call Us |
| 21 |
98-9303 |
CABLE-THROTTLE Price: $21.41 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
702510 |
SUB= 48366 Price: Call Us |
| 23 |
137052 |
PULLEY.DRIVEN Price: Call Us |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
132010 |
LOCKNUT Price: Call Us |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
137080 |
COVER DRIVE BLK Price: Call Us |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 28 |
146072 |
SCREWL.SLOT.TORXT Price: Call Us |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
149746 |
SCREW.SLOT.TORTX. Price: Call Us |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 32 |
146527 |
SUB= 157769 Price: Call Us |
| 38 |
86012 |
DRV SHAFT TUBE PM Price: Call Us |
| 39 |
88446 |
BUSHING.HEX Price: Call Us |
