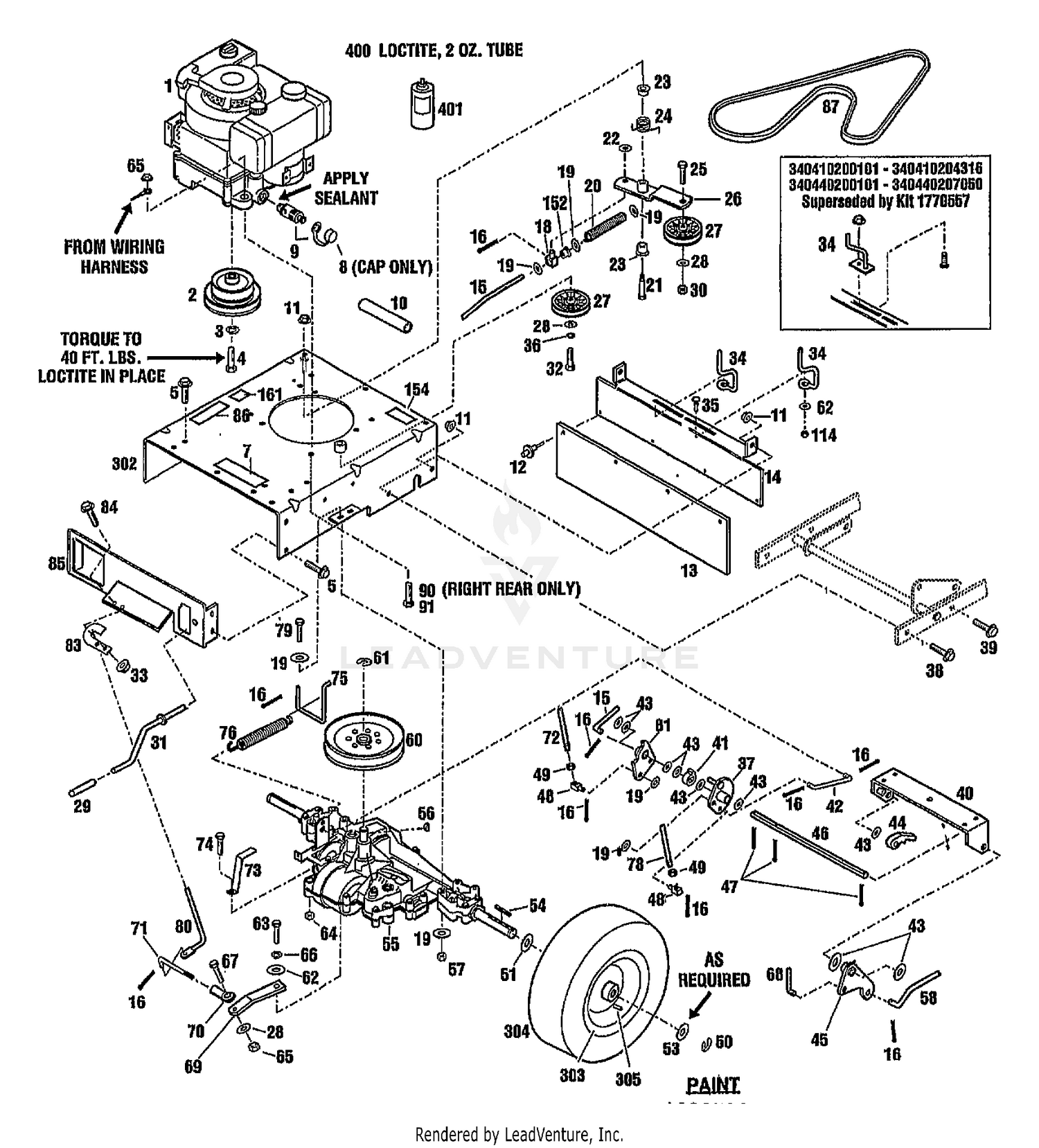

| Ref | Part Number | Description |
|---|
| 2 |
1769954 |
Assm-engin Not Available Price: |
| 3 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 4 |
710-3029 |
Hex Cap Screw, 7/16-20 x 1.25 This part replaces 1736485. Price: $3.82 |
| 5 |
710-04049 |
Flange Screw, 5/16-18,.625, Gr5 This part replaces 1186328. Price: $4.11 |
| 7 |
1768450 |
DECAL-WARNING Not Available Price: |
| 8 |
1766326 |
OIL DRAIN CAP Not Available Price: |
| 9 |
951-10517A |
Oil Drain This part replaces 1768865. Price: $22.67 |
| 10 |
751-3141-14 |
Oil Drain, Extension Hose This part replaces 1769006. Price: $10.40 |
| 11 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 12 |
1727379 |
POP RIVET 3/16X5/8 Not Available Price: |
| 13 |
1764986 |
FLAP-DEFLE Not Available Price: |
| 14 |
1764985001 |
BRACKET-FLAP MTG Price: Call Us |
| 15 |
1768610 |
ROD - LOWE Not Available Price: |
| 16 |
714-0111 |
Cotter Pin This part replaces 1185147. Price: $4.20 |
| 18 |
1765036 |
PIVOT Not Available Price: |
| 19 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 20 |
1711864 |
SPRING Not Available Price: |
| 21 |
1763219 |
SCR-SHLDR 3/8-16 Price: $8.93 |
| 22 |
936-0117 |
FLAT WASHER This part replaces 1705108. Price: $6.20 |
| 23 |
1715538 |
BUSHING-NYLINER .5X.5 Not Available Price: |
| 24 |
1764992 |
SPRING - T Not Available Price: |
| 25 |
1748393 |
SCREW-CARR Not Available Price: |
| 26 |
687-02011-0637 |
ASSM-IDLER ARM ZP This part replaces 1764920. Price: $44.38 |
| 27 |
1756151 |
BACKSIDE PULLEY IDLER Not Available Price: |
| 28 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 29 |
720-0269 |
Clutch Grip This part replaces 1715685. Price: $4.24 |
| 30 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 31 |
1915831 |
CRANK-DECK LIFT {34342,34343} This part replaces 1769895. Price: $23.33 |
| 32 |
710-0347 |
Hex Cap Screw 3/8-16 x 1.75 This part replaces 1100086. Price: $4.39 |
| 33 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 35 |
710-0703 |
SCREW 1/4-20 x .75 GR5 This part replaces 1186069. Price: $3.66 |
| 36 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 37 |
1768486 |
ASSM-BRAKE Not Available Price: |
| 38 |
1186348 |
SCR-HFLK 3 Not Available Price: |
| 39 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 40 |
1768622001 |
PIVOT BRAC Not Available Price: |
| 41 |
1768059 |
CAM-INTERLOCK Not Available Price: |
| 42 |
1768612 |
ROD - LOWE Not Available Price: |
| 43 |
1702646 |
FLAT WASHER 1.0X.516X.031 Not Available Price: |
| 44 |
1768060 |
LATCH-INTERLOCK Not Available Price: |
| 45 |
1768621 |
BLADE PIVO Not Available Price: |
| 46 |
1768615 |
SHAFT - PI Not Available Price: |
| 47 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 48 |
1725264 |
BLOCK-SWIVEL Not Available Price: |
| 49 |
712-3007 |
Jam Nut, 5/16-18 This part replaces 1186258. Price: $6.06 |
| 50 |
716-0231 |
E-ring..75 This part replaces 1185388. Price: $3.50 |
| 51 |
736-0188 |
Washer-Fl-.760Id X This part replaces 1708012. Price: $3.75 |
| 53 |
1701447 |
WASHER-1.25X.765X.049 Price: $3.93 |
| 54 |
1181011 |
KEY-.188 S Not Available Price: |
| 55 |
N/A |
PEERLESS TRANSMISSION ASSEMBLY, MODEL 915- 021 (SEE GRIDS D-9/10 FOR BREAKDOWN) |
| 56 |
914-0868 |
KEY-WOODRUFF .188X.75 This part replaces 1104436. Price: $3.50 |
| 57 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 58 |
1769035 |
LOWER BLAD Not Available Price: |
| 60 |
1764993 |
SHEAVE - T Not Available Price: |
| 61 |
1118808 |
RETAINING RING Not Available Price: |
| 62 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 63 |
710-0412 |
Screw, 1/4-28 x 3/4 This part replaces 1100002. Price: $4.95 |
| 64 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 65 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 66 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 67 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 This part replaces 1100043. Price: $3.61 |
| 68 |
1768613 |
ROD - UPPE Not Available Price: |
| 69 |
1768140 |
ARM-TRANSMISSION Not Available Price: |
| 70 |
1767837 |
BALL JOINT Not Available Price: |
| 71 |
1768628 |
ROD-SHIFT LINK Price: $9.16 |
| 72 |
1768609 |
ROD - UPPE Not Available Price: |
| 73 |
1768381001 |
BRACKET-BELT SUPPORT Not Available Price: |
| 74 |
1111606 |
BOLT - HEX HD, 5/16-18 x 2 Not Available Price: |
| 75 |
1768624 |
ROD-SPRING-ATTACHM Not Available Price: |
| 76 |
1768636 |
EXTENSION SPRING Not Available Price: |
| 78 |
1768611 |
ROD - UPPE Not Available Price: |
| 79 |
710-0176 |
Hex Bolt 5/16-18 x 2.75 This part replaces 1111609. Price: $3.89 |
| 80 |
1768627 |
LEVER ASSEMBLY Not Available Price: |
| 83 |
1768630001 |
BRACKET SHIFT ROD Not Available Price: |
| 84 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 1186308. Price: $3.86 |
| 85 |
1769852001 |
BACKPLATE Not Available This part replaces 1769852010. Price: |
| 86 |
1768436 |
DECAL-WARNING THROWN OBJECT Price: Call Us |
| 87 |
1764942 |
BELT-TRANS DRIVE Price: $29.19 |
| 90 |
710-1007 |
TT Sems Screw 3/8-16 x 1.5 This part replaces 1768194. Price: $5.71 |
| 91 |
1762042 |
SCREW-HH Not Available Price: |
| 114 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 152 |
1716338 |
BEARING Price: Call Us |
| 154 |
1901899 |
DECAL-AMERICAN LEG Not Available Price: |
| 161 |
1769049 |
STEP DECAL Not Available Price: |
| 302 |
1768494 |
ASSM-FRAME (INCL. 7 & 86) Price: Call Us |
| 303 |
1768180 |
WHEEL Not Available Price: |
| 304 |
734-04237 |
TIRE 4.80 x 8 This part replaces 1756444. Price: $108.00 |
| 305 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 400 |
GW-97092 |
Loctite 242, 0.02 oz. Tube Not Available This part replaces 97092. Price: |
| 401 |
788-0638A |
PAINT-RED SPRAY 13OZ. This part replaces 1900706. Price: $21.08 |
| 1768582 |
ENGINE |
SERVICE KIT Price: Call Us 1768582 |
