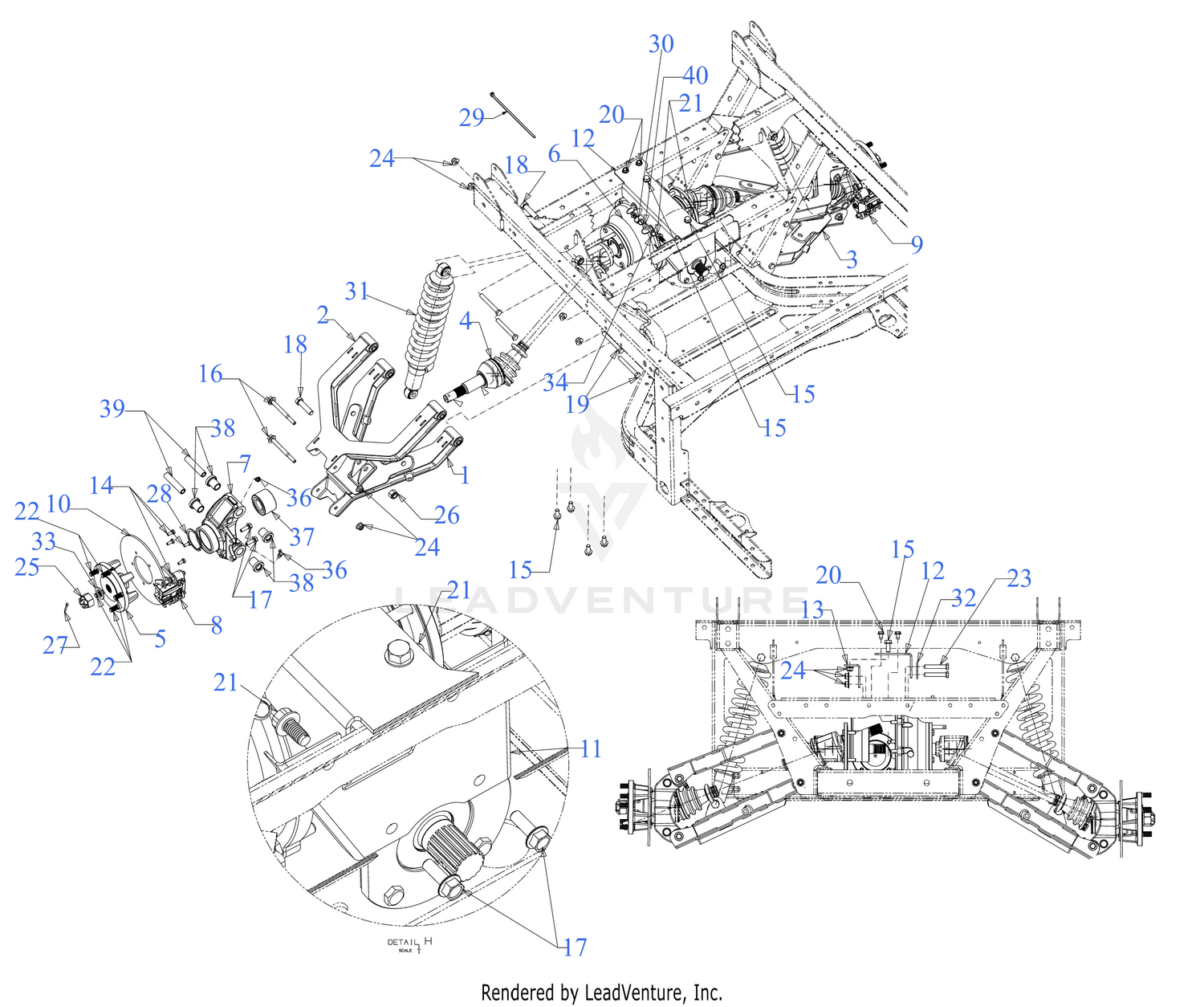

| Ref | Part Number | Description |
|---|
| 1 |
907-04394A |
CONTROL ASSEMBLY-LOWERR/(RH) Price: $417.92 |
| 2 |
907-04395 |
CONTROL ASSEMBLY-UPPER RR Not Available Price: |
| 3 |
907-04396A |
LOWER CONTROL ASSEMBLY (LH) Price: $387.25 |
| 4 |
911-04063B |
AXLE:ASSEMBLY:CV JOINT: Price: $509.91 |
| 5 |
918-04489 |
WHEEL HUB ASSEMBLY Price: $156.80 |
| 8 |
961-04043 |
CALIPERBRAKE ASSEMBLY- FRONT (RH) Price: $132.92 |
| 9 |
961-04044 |
CALIPERBRAKE ASSEMBLY- FRONT (LH) Price: $132.92 |
| 10 |
707-06937 |
DISK BRAKE (8.00X.188) This part replaces 707-04436A. Price: $65.60 |
| 11 |
707-05018B-0637 |
Bracket, Diff, rr This part replaces 707-05018B. Price: $48.18 |
| 12 |
707-05791 |
REAR DIFFERENTIAL MOUNT Price: $39.16 |
| 13 |
707-06000-0637 |
REAR DIFFERENTIAL BRACKET Price: $36.75 |
| 14 |
710-0433 |
SCREW 1/4-20 x .62 SPEC GR5 Price: $4.02 |
| 15 |
710-04482 |
SCREW 3/8-16 x .875 GR5 Price: $4.08 |
| 16 |
710-04637 |
SCREW 3/8-16 x 4.00 GR5 Price: $6.24 |
| 17 |
710-04639 |
SCREW M8 x 1.25 x 25MM GR8.8 Price: $6.24 |
| 18 |
710-0489 |
SCREW 1/2-13 x 2 GR5 Price: $6.24 |
| 19 |
710-0521 |
SCREW 3/8-16 x 3 GR8 Price: $4.54 |
| 20 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 21 |
710-0623 |
SCREW 3/8-16 x 3/4 Price: $3.93 |
| 22 |
710-0852 |
STUD 7/16-14 x 1.6 Price: $5.65 |
| 23 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 24 |
712-04065 |
NUT Price: $3.68 |
| 25 |
712-04109 |
SLOTTED NUT22X1.5 Price: $46.41 |
| 26 |
712-3083 |
HEX LOCK NUT NYLON Price: $4.05 |
| 27 |
714-0162 |
COTTER PIN-5/32 DIA Price: $4.29 |
| 28 |
716-04055 |
RETAINING RING Price: $11.98 |
| 30 |
726-05003 |
HOSE CLAMP Price: $3.24 |
| 31 |
732-04423B |
REAR SHOCK ABSORBER Price: $199.08 |
| 32 |
736-0262 |
FLAT WASHER .385X.870X.090 Price: $3.66 |
| 33 |
736-0291 |
Washer, Flat, .88 x 1.4 x .125 This part replaces 936-0291. Price: $10.76 |
| 34 |
737-0296 |
VENT Price: $10.94 |
| 37 |
741-04166 |
DOUBLE ROW BEARING Price: $242.94 |
| 38 |
741-04234D |
FLANGE BEARING .625 ID Price: $5.65 |
| 39 |
750-04358B |
PIVOT TUBE Price: $33.64 |
| 40 |
751-10350A-22 |
FUEL HOSE LOW PERMEATION 22" This part replaces 751-10350-22. Price: $17.42 |
