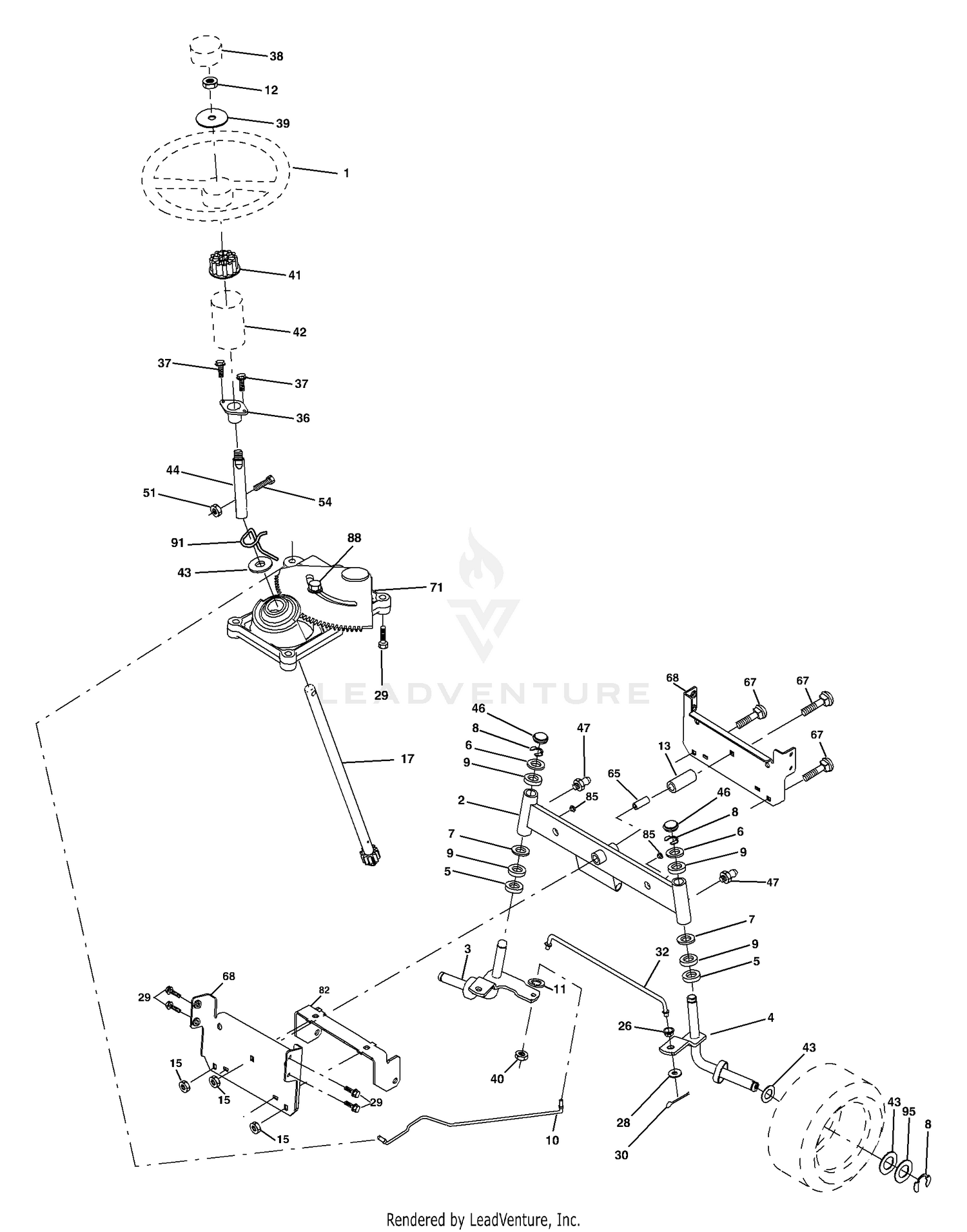

| Ref | Part Number | Description |
|---|
| 1 |
140044X428 |
Steering Wheel Price: Call Us |
| 1 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 2 |
175131 |
Axle Assembly Price: Call Us |
| 2 |
69-7210-03 |
TUBE LATCH ASM Price: $386.73 |
| 3 |
169840 |
Spindle Assembly, L.H. Price: Call Us |
| 3 |
69-8480-03 |
SPRING-COMPRESSION Price: $172.33 |
| 4 |
169839 |
Spindle Assembly, R.H. Price: Call Us |
| 4 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 5 |
6266H |
Bearing, Race, Thrust, Hardened Price: Call Us |
| 5 |
71-2550 |
WASHER-SHAFT, LATCH Price: $39.70 |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 6 |
69-9680 |
DISCONTINUED Price: Call Us |
| 7 |
111-1290 |
ENGINE - KUBOTA V1505-E2B-HAYTER-1 This part replaces 92-4806. Price: $3,715.61 |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 8 |
12000029 |
Ring, Klip Price: Call Us |
| 8 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 9 |
3366R |
Bearing, Steering Column Price: Call Us |
| 9 |
92-4804 |
BLOCK-LATCH, PIVOT Price: $236.12 |
| 10 |
175121 |
Draglink Price: Call Us |
| 10 |
32121-49 |
PIN-ROLL Price: $2.37 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
92-4805 |
CAM-TRIP, SPRING Price: $283.27 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Price: Call Us |
| 12 |
86-8100-01 |
BALL JOINT ASM Price: $137.53 |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 13 |
21-3000-01 |
NUT-JAM, PUSH ARM Price: $37.02 |
| 14 |
92-4094 |
ROLLER-LATCH Price: $14.45 |
| 15 |
145212 |
Hexflange Lock Price: Call Us |
| 15 |
256-172 |
BUSHING Price: $4.57 |
| 16 |
69-1630-03 |
ARM-PIVOT Price: $110.89 |
| 17 |
180641 |
Shaft Assembly, Steering Price: Call Us |
| 17 |
69-9100 |
WASHER-LATCH Price: $104.98 |
| 18 |
3220-22 |
NUT-JAM Price: $61.63 |
| 19 |
21-3001 |
NUT-JAM This part replaces 21-3001-03. Price: $10.04 |
| 20 |
86-8101-01 |
JOINT-BALL, LH This part replaces 86-8101-03. Price: $64.64 |
| 21 |
106-0310 |
SPACER-PLASTIC Price: $9.24 |
| 26 |
126847X |
Bushing, Link, Drag Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 29 |
17000612 |
Screw, 3/8-16 x 3/4 Price: Call Us |
| 30 |
76020412 |
Pin Price: Call Us |
| 32 |
130465 |
Rod, Tie Price: Call Us |
| 36 |
155099 |
Bushing, Steering Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
140045X428 |
Cap, Steering Wheel Price: Call Us |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 40 |
73540600 |
Nut Crownlock 3/8-24 Price: Call Us |
| 41 |
186737 |
Adaptor, Steering Wheel Price: Call Us |
| 42 |
145054X428 |
Boot, Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 44 |
180640 |
Shaft Extension Steering Price: Call Us |
| 46 |
121232X |
Cap, Spindle Price: Call Us |
| 47 |
183226 |
Fitting, Grease Price: Call Us |
| 51 |
73540400 |
Nut 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 x 1-1/4 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt, Rdhd Sq 3/8-16 unc x 2-1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Shoulder Bolt Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
