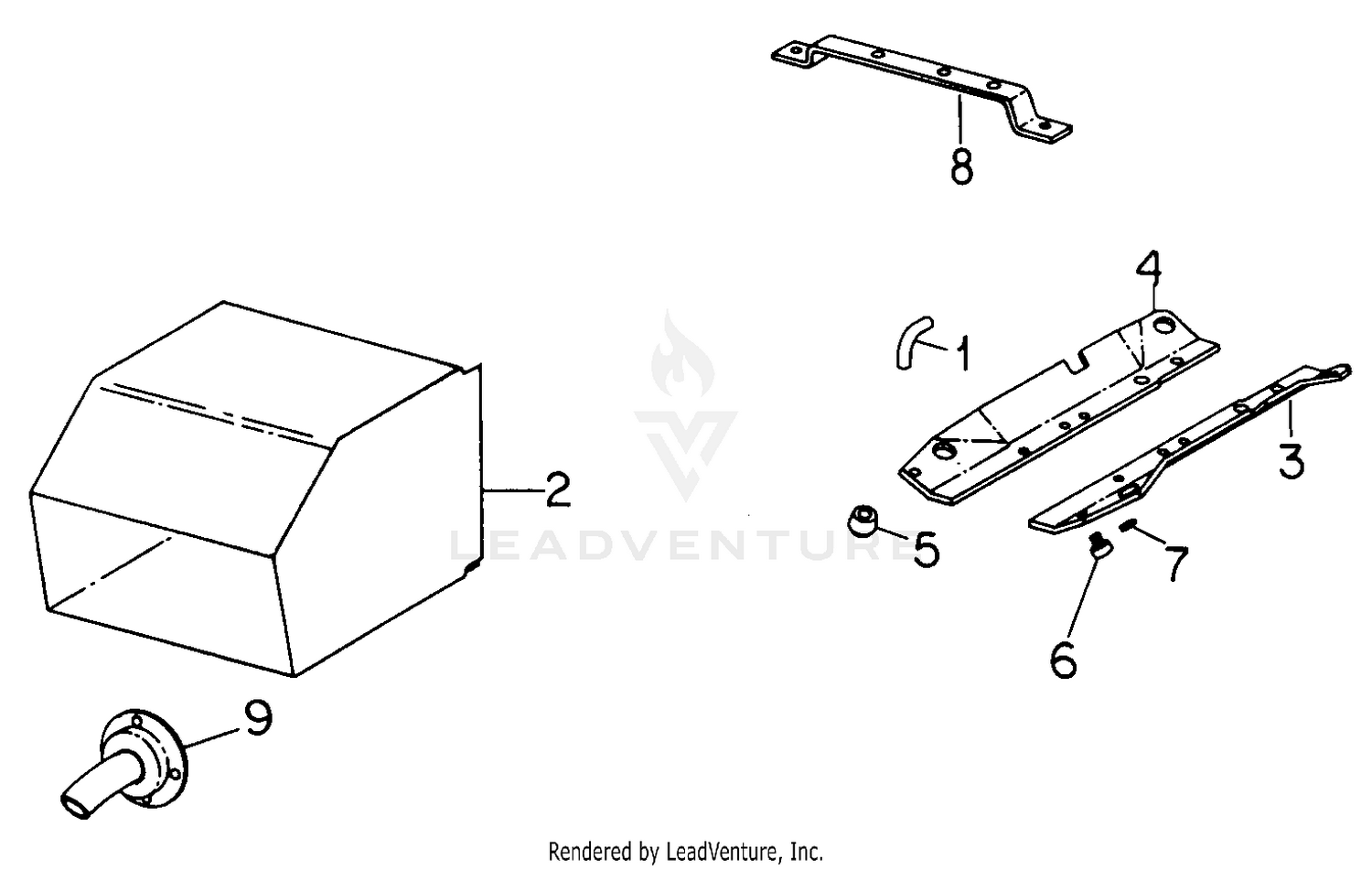

| Ref | Part Number | Description |
|---|
| 1 |
32152-10 |
LOCKNUT Price: $0.81 |
| 1 |
751-3000 |
OIL DRAIN PIPE Not Available Price: |
| 1 |
751-3001 |
PLUG-HEX HEAD 1/4" Not Available Price: |
| 2 |
70-2780 |
PISTON Price: $133.22 |
| 2 |
703-0039 |
DUCT-AIR Not Available Price: |
| 2 |
710-3010 |
Screw, 1/4-20 X 1/4 Znd Hex Hd Flange Lock Price: $6.01 |
| 3 |
703-0042-0637 |
FRAME-ENG MOUNTING (LH) Not Available Price: |
| 3 |
98-7353 |
DISCONTINUED This part replaces 93-7990. Price: Call Us |
| 4 |
703-0043-0637 |
ENGINE FRAME MOUNTING (RH) Not Available Price: |
| 4 |
93-7991 |
COLLAR Price: $73.29 |
| 5 |
710-3011 |
Bolt, 3/8 X 2-1/4 Type 5 Price: $6.49 |
| 5 |
75-3790 |
SHAFT W/TUBE Price: $205.50 |
| 6 |
93-9312 |
DISCONTINUED Price: Call Us |
| 7 |
510083201 |
MOUNT, F/F INSERT Price: $4.99 |
| 7 |
712-3006 |
HEX NUT Price: $4.05 |
| 7 |
86-7330 |
SEAL KIT Price: $95.00 |
| 8 |
529279603 |
MOUNT, RT TANK, BLK Price: $44.99 |
| 8 |
703-0045 |
BAR-ENGINE MTG 482 Not Available Price: |
| 8 |
710-0514 |
Bolt, 3/8 X 1 Type 5 Price: $3.78 |
| 8 |
712-3005 |
Nut, Hex Flange Lock, 3/8-16 GR5 This part replaces 912-3005. Price: $5.99 |
| 9 |
529279703 |
MOUNT, LT TANK, BLK Price: $44.99 |
| 9 |
751-3002-0637 |
EXHAUST TUBE ASSEMBLY Not Available Price: |
| 10 |
529279903 |
XX MOUNT, TANK, RT-BLK Price: $59.99 |
| 11 |
529280003 |
MOUNT, TANK, LT-BLK Price: $29.99 |
| 12 |
510040302 |
Brackets This part replaces 510040301. Price: $12.99 |
| 13 |
539102845 |
SPRING Price: $2.99 |
| 14 |
575811501 |
BUMPER, 1/4-20 STUD, 1/4 Price: $5.99 |
| 15 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 16 |
539109867 |
DOUBLE TUBE CLAMP Price: $5.99 |
| 17 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 18 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 19 |
596241601 |
Bolts This part replaces 539131780. Price: $1.99 |
| 20 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 21 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 22 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 23 |
595901401 |
Bolts This part replaces 539100145. Price: $2.99 |
| 24 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 25 |
594977401 |
Nuts This part replaces 539111028. Price: $1.99 |
| 26 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 27 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 28 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 29 |
596565001 |
Washers This part replaces 539109600. Price: $2.99 |
