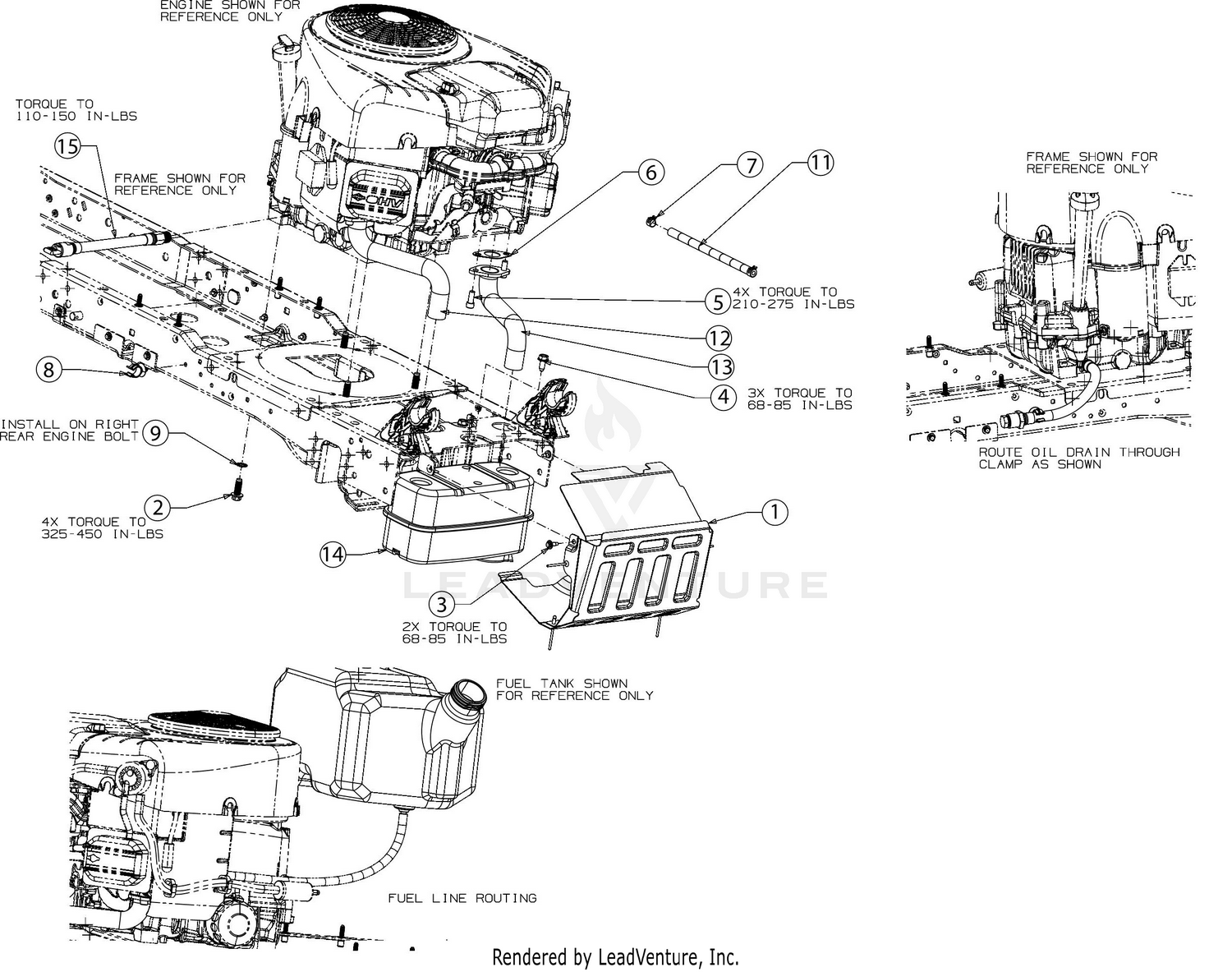

| Ref | Part Number | Description |
|---|
| 1 |
983-05142C |
MUFFLER SHIELD ASSEMBLY This part replaces 983-05142A. Price: $71.68 |
| 2 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 3 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 4 |
710-06256 |
SCREW M8-1.25 x .750 Price: $2.72 |
| 5 |
710-1314A |
SCREW 5/16-18 x .625 Price: $4.05 |
| 6 |
721P0460 |
MUFFLER GASKET This part replaces 721-0460. Price: $6.17 |
| 7 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 8 |
731-10746A |
DRAIN HOSE CLIP Price: $6.51 |
| 9 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 10 |
N/A |
OIL:SAE 10W30 |
| 11 |
751-10349-13 |
FUEL HOSE LOW PERMEATION Price: $15.58 |
| 12 |
751-14475 |
EXHAUST PIPE (RH) (B&S) Price: $40.68 |
| 13 |
751-14476 |
EXHAUST PIPE (LH) (B&S) Price: $37.84 |
| 14 |
951-14503D |
EXHAUST MUFFLER (TWIN) This part replaces 951-14503A. Price: $65.12 |
