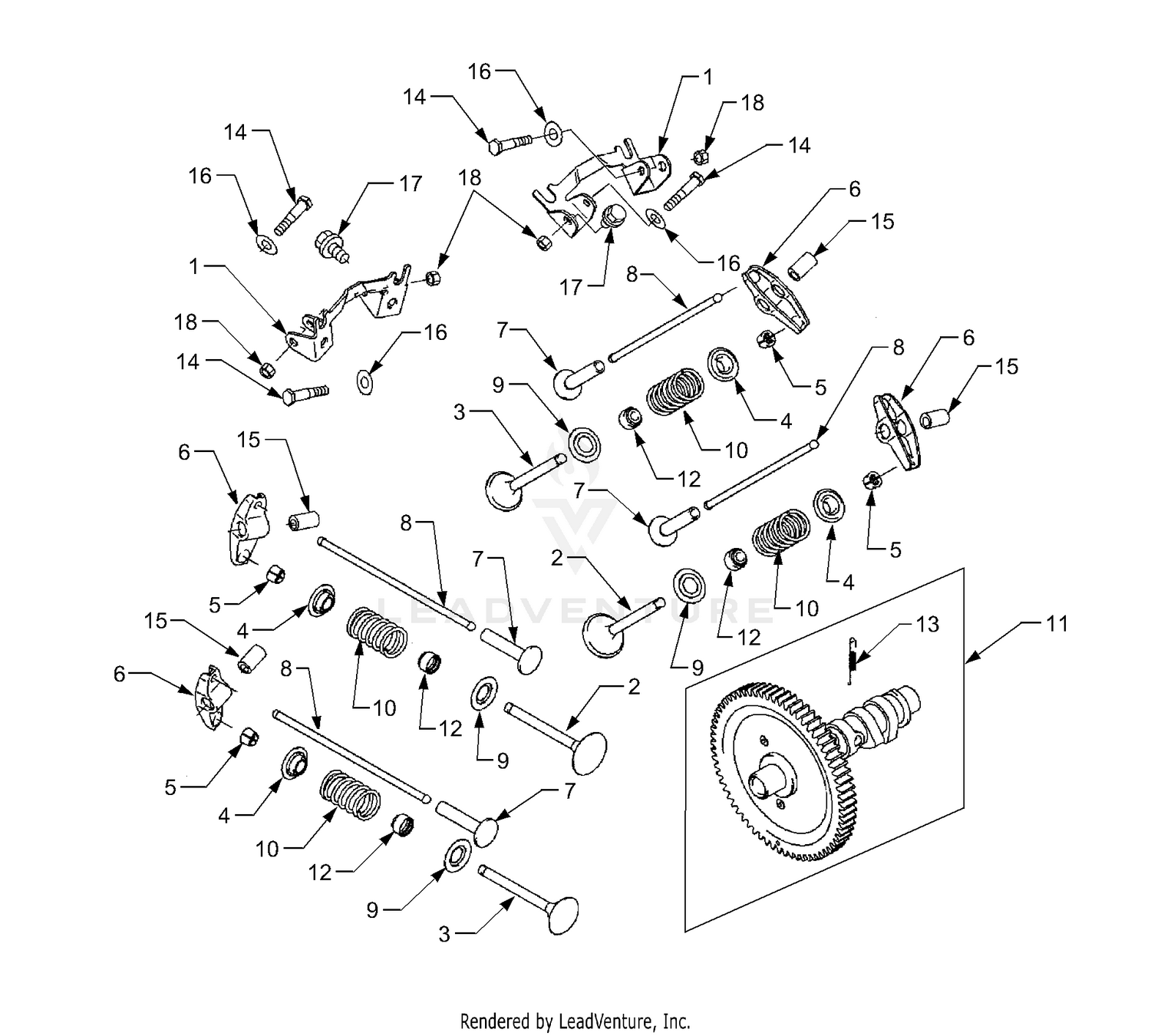

Valves And Camshaft
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 1 | KM-11051-2092 | BRACKET-ROCKER ARM Not Available Price: |
| 2 | 33006-00 | NUT-HF Price: $1.22 |
| 2 | KM-12004-2113 | INTAKE VALVE Not Available Price: |
| 3 | 93-5440-03 | BUMPER ASM Price: $222.85 |
| 3 | KM-12005-2100 | EXHAUST VALVE Not Available Price: |
| 4 | 33106-030 | SCREW-HHF Price: $1.15 |
| 4 | KM-12009-2060 | RETAINER-VALVE SPRING Not Available Price: |
| 5 | 2410-42 | CAP-END Price: $11.62 |
| 5 | KM-12011-2052 | COLLET Price: $2.32 |
| 6 | 33004-00 | NUT-HF Price: $0.34 |
| 6 | KM-12016-6005 | ROCKER ARM Not Available This part replaces KM-12016-2063. Price: |
| 7 | 93-5450 | NUT-CLINCH Price: $4.13 |
| 7 | KM-12032-2060 | TAPPET VALVE Not Available Price: |
| 8 | 95-5622 | HANGER-RUBBER Price: $34.18 |
| 8 | KM-13116-2074 | PUSH ROD Not Available Price: |
| 9 | 93-5023 | SPACER Price: $8.77 |
| 9 | KM-16007-2052 | SEAT-VALVE SPRING Not Available Price: |
| 10 | 93-5594-03 | GUARD-MUFFLER ASM Price: $220.91 |
| 10 | KM-49078-2060 | VALVE SPRING Not Available Price: |
| 11 | 33104-035 | SCREW-HHF Price: $0.88 |
| 11 | KM-49118-2138 | CAMSHAFT ASSEMBLY Not Available Price: |
| 12 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 12 | KM-92049-2100 | VALVE STEM SEAL Not Available Price: |
| 13 | 93-5946 | MUFFLER W/ SPARK ARRESTOR Price: $757.04 |
| 13 | KM-92145-2085 | SPRING-CAMSHAFT Not Available Price: |
| 14 | 2112-6 | CLAMP-MUFFLER Price: $7.53 |
| 14 | KM-92151-2165 | BOLT-PIVOT ROCKER Not Available Price: |
| 15 | KM-92152-2077 | COLLAR-ROCKER ARM Not Available Price: |
| 16 | KM-92200-2707 | WASHER 8.1X18X0.5 This part replaces KM-92200-2128. Price: $0.95 |
| 17 | KM-130BA0814 | FLANGED BOLT 8X14 This part replaces KM-130G0814. Price: $2.55 |
