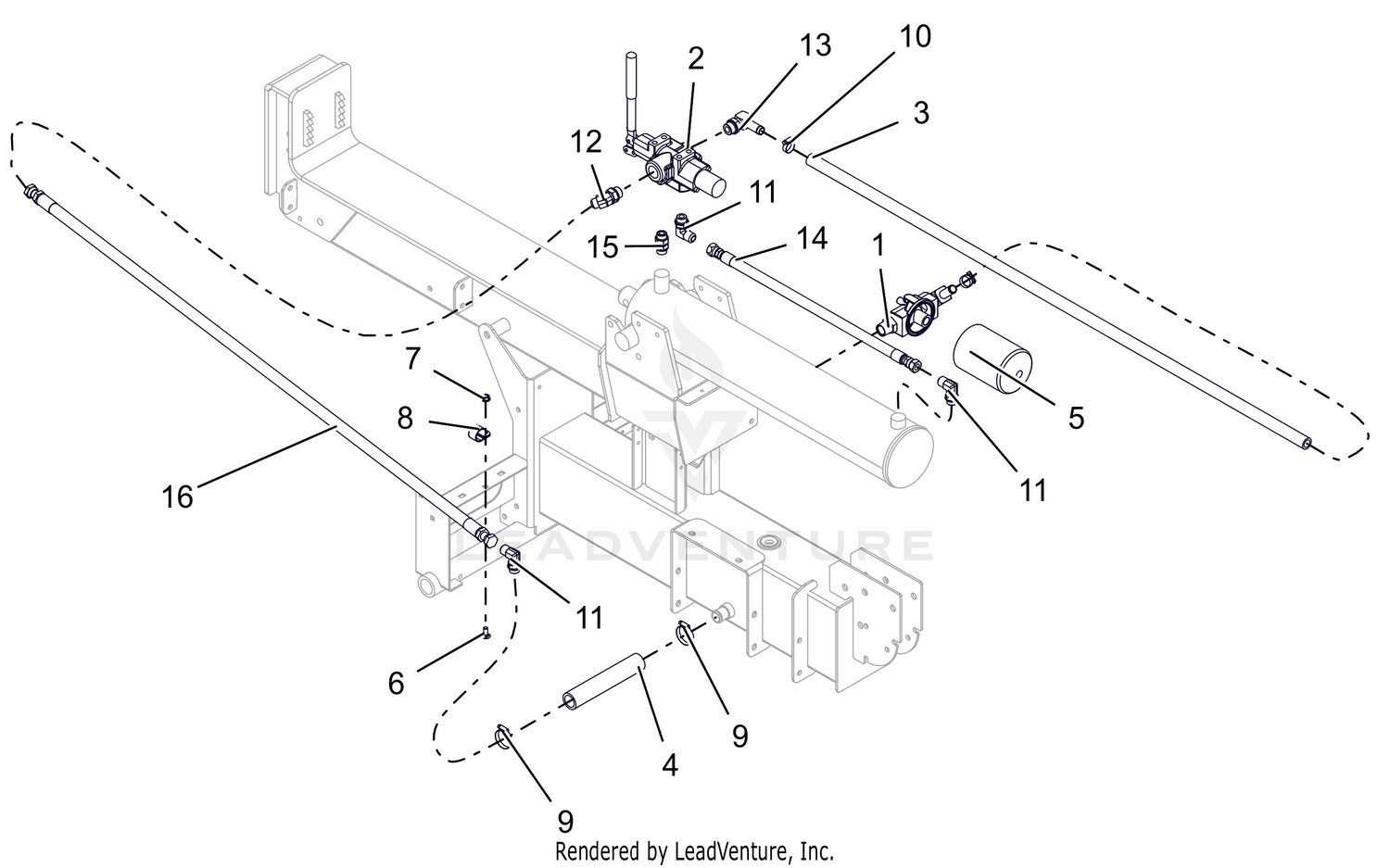

| Ref | Part Number | Description |
|---|
| 1 |
11-5089 |
RH ROLLER BRACKET ASM Price: $80.99 |
| 1 |
61700400 |
ASM, FILTER HEAD Price: $65.45 |
| 2 |
03846300 |
VALVE CONTROL-SPLITTER Price: $234.95 |
| 2 |
3-4010 |
BUSHING ASM Price: $14.71 |
| 3 |
03859600 |
HOSE,HYD RETURN 10LOLA X 53" Price: $72.45 |
| 3 |
47-4380 |
NUT-ROLLER, RH Price: $18.41 |
| 4 |
04594300 |
HOSE, HYD - SUCTION 7.375" Price: $26.95 |
| 4 |
5-4527 |
WASHER-THRUST Price: $3.00 |
| 5 |
04975800 |
FILTER,HYDRAULIC OIL-NO BYPASS Price: $35.45 |
| 5 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 6 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 6 |
8-3990 |
REAR ROLLER ASM Price: $352.13 |
| 7 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 7 |
4-5189-01 |
ROLLER AND END CAP ASM This part replaces 4-5659. Price: $216.78 |
| 8 |
06917900 |
CLAMP, COUSHIONED STEEL REV Price: $13.45 |
| 8 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
06922200 |
CLAMP-HOSE 1.50X.81X1.42 Price: $5.45 |
| 9 |
253-122 |
SEAL-OIL Price: $6.83 |
| 10 |
06923500 |
CLAMP,.88 DIA. HOSE Price: $1.95 |
| 10 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 11 |
07001535 |
FTG,HYD 6801-8-8 Price: $25.95 |
| 11 |
254-78 |
BEARING-CONE Price: $12.22 |
| 12 |
07001537 |
FTG,HYD 6802-8-10 Price: $20.45 |
| 12 |
5-4523 |
SLEEVE Price: $22.20 |
| 13 |
07001538 |
FTG,HYD 4601-10-10 Price: $36.45 |
| 13 |
253-117 |
SEAL-OIL Price: $5.72 |
| 14 |
07001540 |
HOSE, HYD - 22" Price: $61.45 |
| 14 |
8-3980 |
SHAFT-ROLLER Price: $76.62 |
| 15 |
07001713 |
FTG, HYD - STR 08MAORB-08MORB Price: $14.45 |
| 15 |
47-7510 |
WASHER-NYLON Price: $1.15 |
| 16 |
3220-7 |
NUT-JAM Price: $4.09 |
| 17 |
47-4390 |
NUT-ROLLER, LH Price: $18.41 |
| 18 |
11-5079 |
LH ROLLER BRACKET ASM Price: $80.99 |
| 19 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 20 |
325-7 |
SCREW-HH Price: $1.53 |
