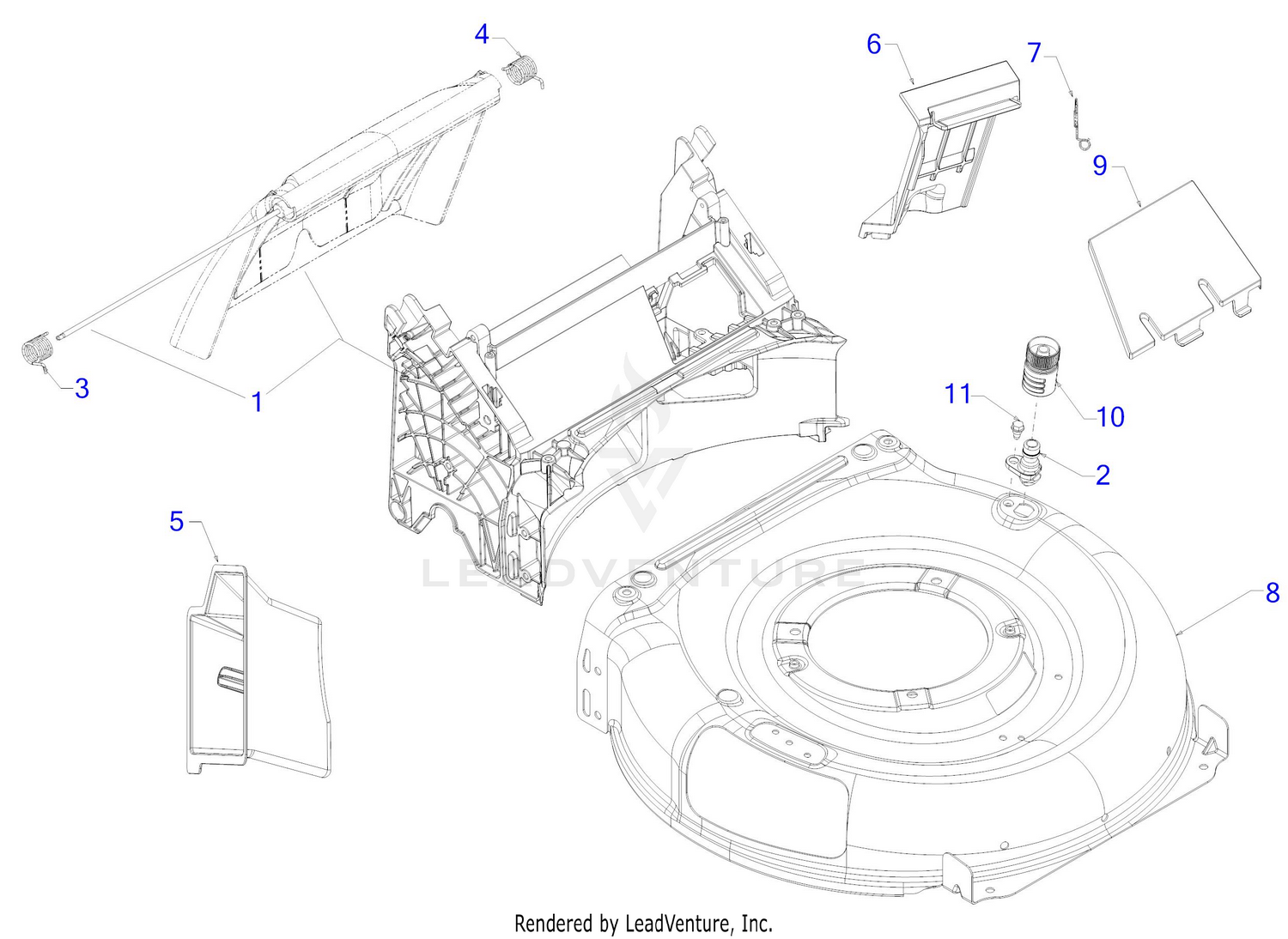

Deck Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 631-05046C | REAR BAFFLE ASSEMBLY Price: $83.08 |
| 2 | 731-07487 | DECK WASH NOZZLE Price: $3.86 |
| 3 | 732-05061B | TORSION SPRING (RH) This part replaces 732-05061A. Price: $4.64 |
| 4 | 732-05062A | TORSION SPRING (LH) Price: $4.64 |
| 5 | 731-09208 | MULCH PLUG Price: $13.21 |
| 6 | 731-09264 | TRANSMISSION COVER (FRONT) Price: $29.53 |
| 7 | 732-05530 | CABLE CLIP Not Available Price: |
| 9 | 731-09265 | TRANSMISSION COVER (REAR) Price: $25.96 |
| 10 | 921-04041 | WATER NOZZLE Price: $20.19 |
