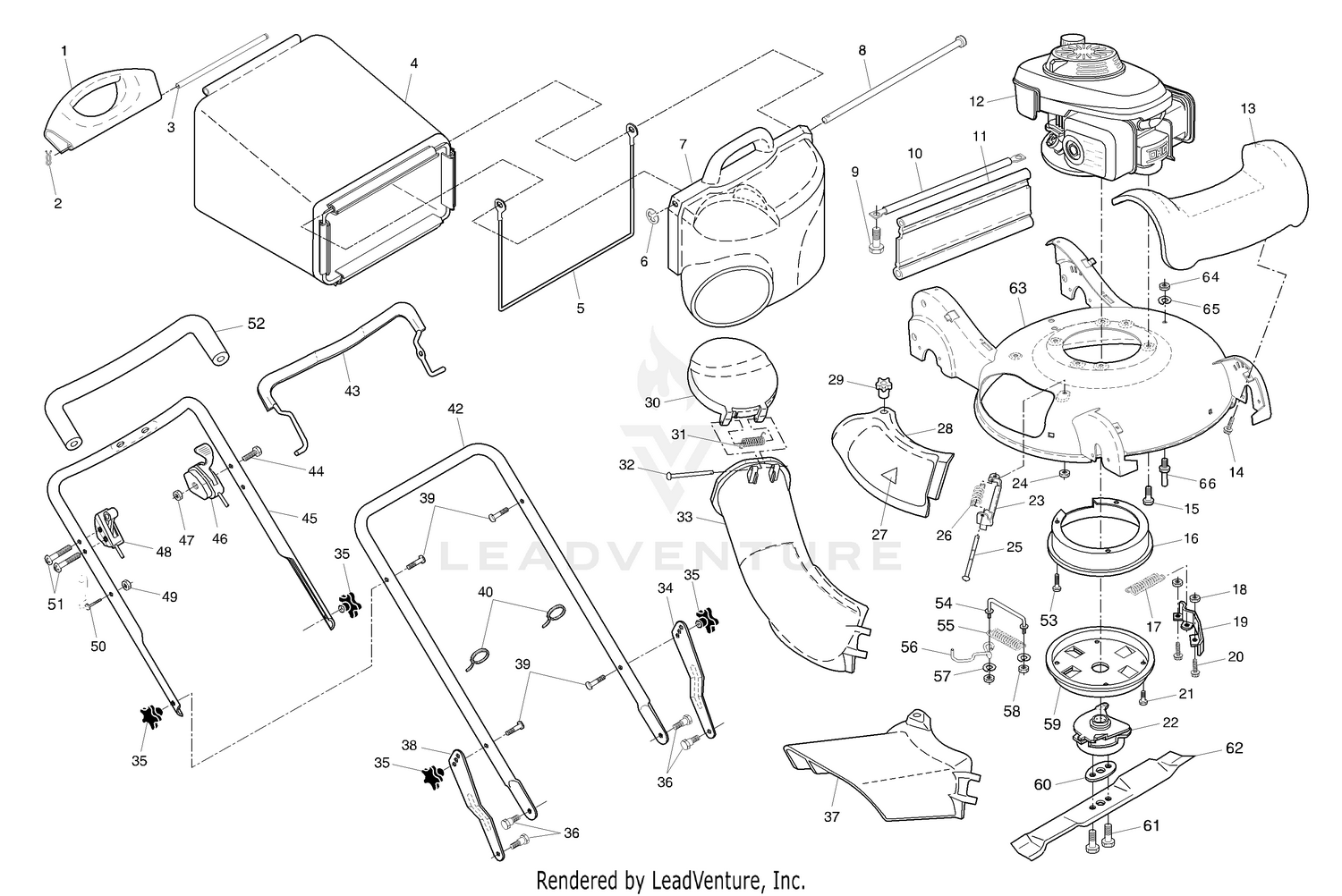

| Ref | Part Number | Description |
|---|
| 1 |
532188505 |
HANDLE GRASSBAG REAR BLACK This part replaces 532186003. Price: $17.99 |
| 1 |
92-1724 |
HOSE ASM Price: $189.75 |
| 2 |
237-78 |
O-RING Price: $3.85 |
| 2 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 3 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 3 |
532183483 |
ROD.REAR.HANDLE.YELLOW Price: $4.99 |
| 4 |
237-21 |
O-RING Price: $0.70 |
| 4 |
532410670 |
GBAG.52510010.BLK.GEN.SERVIC This part replaces 532185228. Price: $69.99 |
| 5 |
532188506 |
FRAME, GRASSBAG This part replaces 532183481. Price: $22.99 |
| 5 |
92-1722 |
HOSE ASM Price: $97.53 |
| 6 |
812000014 |
E-RING Price: $3.99 |
| 6 |
92-1725 |
DISCONTINUED Price: Call Us |
| 7 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 7 |
532188498 |
DOOR.GRASSBAG.H-GRAY This part replaces 532186002. Price: $43.99 |
| 8 |
237-22 |
O-RING Price: $2.43 |
| 8 |
532183479 |
ROD, PIVOT Price: $12.99 |
| 9 |
817411318 |
SCREW.HWH.13-16X1.12 Price: $2.99 |
| 9 |
92-1719 |
HOSE ASM Price: $165.50 |
| 10 |
532184331 |
TUBE Price: $7.99 |
| 10 |
92-1717 |
DISCONTINUED Price: Call Us |
| 11 |
532183463 |
SKIRT.REAR.21".HI-VAC.BLACK Price: $7.99 |
| 11 |
92-1723 |
DISCONTINUED Price: Call Us |
| 12 |
237-79 |
O-RING Price: $5.46 |
| 13 |
586531501 |
COVER.FRONT.21.HI-VAC.BLK This part replaces 532183770. Price: $9.99 |
| 13 |
88-9460 |
HOSE Price: $129.98 |
| 14 |
340-21 |
FITTING Price: $55.94 |
| 14 |
532194189 |
SCREW.HWH.13-16-5.8.BZP This part replaces 532184572. Price: $4.99 |
| 15 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 15 |
92-1718 |
HOSE ASM Price: $98.56 |
| 16 |
532180459 |
BLADE.21".BBC Price: $22.99 |
| 16 |
92-1721 |
HOSE ASM Price: $127.69 |
| 17 |
532180393 |
SPRING.BBC Price: $4.99 |
| 17 |
92-8759 |
HYDRAULIC MOTOR Price: $944.20 |
| 18 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 18 |
92-1727 |
HOSE ASM Price: $144.54 |
| 19 |
532187492 |
Brake, Clutch Price: $2.27 |
| 20 |
596582501 |
Bolts This part replaces 874780410. Price: $2.99 |
| 20 |
85-4390 |
DISCONTINUED Price: Call Us |
| 21 |
3235-20 |
SCREW-HEX HD Price: $3.59 |
| 21 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 22 |
92-4079 |
HOLDER - HALL SENSOR Price: $9.02 |
| 23 |
532183609 |
BRACKET.ASM.HINGE Price: $4.99 |
| 23 |
93-8732-01 |
END CAP (MACHINED) This part replaces 92-4080. Price: $38.57 |
| 24 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
| 24 |
85-4380 |
MAGNET - 40 POLE Price: $120.41 |
| 25 |
3235-22 |
SCREW-HH, LOCK This part replaces 30-2120. Price: $2.59 |
| 25 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 26 |
12-0450 |
NO. 14 CAPLUG Price: $4.29 |
| 26 |
532183446 |
SPRING.MULCH.DOOR Price: $4.99 |
| 27 |
253-61 |
SEAL-OIL Price: $9.11 |
| 27 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 28 |
532188010 |
DOOR.ASM.MULCH.HV.GRY.EFS.DECA This part replaces 532185995. Price: $22.99 |
| 28 |
92-1728 |
DISCONTINUED Price: Call Us |
| 29 |
532183447 |
KNOB.MULCH.DOOR Price: $4.99 |
| 29 |
92-1726 |
HOSE ASM Price: $92.84 |
| 30 |
532188497 |
DOOR, DISCHARGE CHUTE This part replaces 532186001. Price: $5.99 |
| 31 |
532183478 |
SPRING Price: $6.99 |
| 32 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 33 |
532188504 |
DISCHARGE CHUTE, PLASTIC This part replaces 532186000. Price: $27.99 |
| 34 |
532187063 |
BRKT.ADJ.LOWER.HDL.LH This part replaces 532187425. Price: $8.99 |
| 35 |
532185588 |
KNOB.HANDLE.STAR.HUSQ.GRAY Price: $5.99 |
| 36 |
532194187 |
SCREW.5/16X.680.TRIM.H This part replaces 532183465. Price: $5.99 |
| 37 |
532185996 |
GUARD.CLIP.ON.21.HV.GRAY Price: $21.99 |
| 38 |
532187064 |
BRACKET.ADJ.LOWER.HDL.RH.BLACK This part replaces 532187426. Price: $8.99 |
| 39 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 This part replaces 532184568. Price: $5.99 |
| 40 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 42 |
532187096 |
HANDLE.LOWER.GREY Price: $27.99 |
| 43 |
583754701 |
BAIL.CONTROL.HV.BBC.BLACK This part replaces 532186299. Price: $34.99 |
| 44 |
532187499 |
SCREW Price: $2.99 |
| 46 |
532196541 |
CONTROL.BBC.HV.GRY/ORG This part replaces 532183707. Price: $49.99 |
| 47 |
532184569 |
HEX NUT Price: $2.99 |
| 48 |
532192077 |
KIT.THROTTLE.CONT/BRKT.BBS.CRA This part replaces 532185779. Price: $44.99 |
| 49 |
532184569 |
HEX NUT Price: $2.99 |
| 50 |
532183469 |
ROPE GUIDE Price: $2.42 |
| 51 |
583608401 |
SCREW YTV This part replaces 532183449. Price: $1.99 |
| 52 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 53 |
532150408 |
MANUAL OPERATORS FRENCH Price: $17.99 |
| 54 |
532180188 |
LINK.TORQUE.BBC Price: $12.99 |
| 55 |
532180394 |
SPRING.LINK.BBC Price: $2.99 |
| 56 |
532186130 |
GUIDE, BELT Price: $5.48 |
| 57 |
532053998 |
WASHER Price: $3.71 |
| 58 |
873510600 |
NUT Price: $4.99 |
| 59 |
532183610 |
BELT COVER Price: $11.99 |
| 60 |
532185046 |
SPACER Price: $15.99 |
| 61 |
532186291 |
BOLT.BLADE.BBC Price: $5.99 |
| 62 |
532180459 |
BLADE.21".BBC Price: $22.99 |
| 63 |
532186957 |
HOUSING KIT Price: $120.97 |
| 64 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 65 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 66 |
532182131 |
STUC.GUIDE.BELT.RWGD Price: $14.99 |
