| Ref | Part Number | Description |
|---|
| 1 |
49-6200-01 |
LEVER-CUTTING Price: $100.17 |
| 2 |
283-61 |
PIN-YOKE Price: $1.56 |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 4 |
3220-2 |
NUT-JAM Price: $0.50 |
| 5 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 6 |
49-6110-01 |
GUARD-ROD, TRANSMISSION Price: $65.82 |
| 7 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 |
10-7850 |
LATCH-BRAKE, PARKING Price: $111.12 |
| 9 |
95-1628 |
DISCONTINUED Price: Call Us |
| 10 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 11 |
83-0640-01 |
PLATE-FOOTREST Price: $105.48 |
| 12 |
49-6120 |
PAD-FOOTREST Price: $33.37 |
| 13 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 14 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 15 |
95-1629 |
HINGE-LOWER Price: $10.72 |
| 16 |
93-8075 |
DECAL-MOW/LIFT Price: $6.44 |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 18 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 19 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 20 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
83-0200-01 |
PLATE-COVER, LH Price: $46.92 |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
93-9901-01 |
BRACKET-LOCKOUT, MOW Price: $92.00 |
| 27 |
83-0080 |
SPRING-PIVOT, LIFT Price: $20.57 |
| 28 |
106-6396 |
LIFT-PIVOT V This part replaces 83-0060. Price: $63.16 |
| 29 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 30 |
10-8100-01 |
STRAP-SHAFT, BRAKE Price: $34.17 |
| 31 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 32 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH Price: $42.90 |
| 33 |
3256-38 |
WASHER-FLAT Price: $0.49 |
| 34 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 35 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 36 |
93-7631 |
PAD-FOOT, LIFT Price: $8.10 |
| 37 |
106-6395 |
CUTTING CONTROL SHAFT ASM This part replaces 88-9660. Price: $151.92 |
| 38 |
83-2590 |
BOLT-SHOULDER, PIVOT Price: $50.18 |
| 39 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 40 |
106-6394 |
MOW PEDAL ASM This part replaces 83-0140. Price: $72.96 |
| 41 |
93-7630 |
PAD-FOOT Price: $8.20 |
| 42 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 43 |
88-9630-01 |
BRACKET-LIFT PIVOT, RH Price: $42.90 |
| 44 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 45 |
321-11 |
SCREW-HH Price: $0.36 |
| 46 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 47 |
69-9760 |
COVERPLATE Price: $5.38 |
| 48 |
56-7970 |
CLAMP-TUBE Price: $10.02 |
| 49 |
93-2548 |
DECAL - GR 3100 3WD Price: $26.43 |
| 50 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 51 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
93-9898 |
DECAL-LOCK Price: $5.59 |
| 53 |
93-9903 |
PIN-MOW, LOCKOUT Price: $65.65 |
| 54 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 55 |
27-2320 |
BEARING Price: $15.22 |
| 56 |
3-1506 |
BUSHING Price: $2.42 |
| 57 |
76-0410 |
SPRING-COMPRESSION Price: $5.92 |
| 58 |
93-9904 |
ARM-MOW, LOCKOUT Price: $29.06 |
| 59 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 56561401 |
56561401 |
Price: Call Us |
| 151407807 |
151407807 |
Price: $7.30 |
| 506505401 |
506505401 |
SPACER Price: $3.99 |
| 506518401 |
506518401 |
BEARING HOUSING Price: $49.99 |
| 506518501 |
506518501 |
Price: $32.14 |
| 506518502 |
506518502 |
CENTRE SHAFT Price: $35.07 |
| 506518601 |
506518601 |
Price: $6.80 |
| 506518701 |
506518701 |
BEARING COVER Price: $6.99 |
| 506519001 |
506519001 |
DOUBLE PULLEY ASSY Price: $89.99 |
| 506519101 |
535482101 |
PULLEY This part replaces 506519101. Price: $22.99 |
| 506519501 |
586966601 |
BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 506532701 |
506532701 |
PULLEY Price: $39.99 |
| 506533401 |
506533401 |
Price: $86.70 |
| 506533402 |
506533402 |

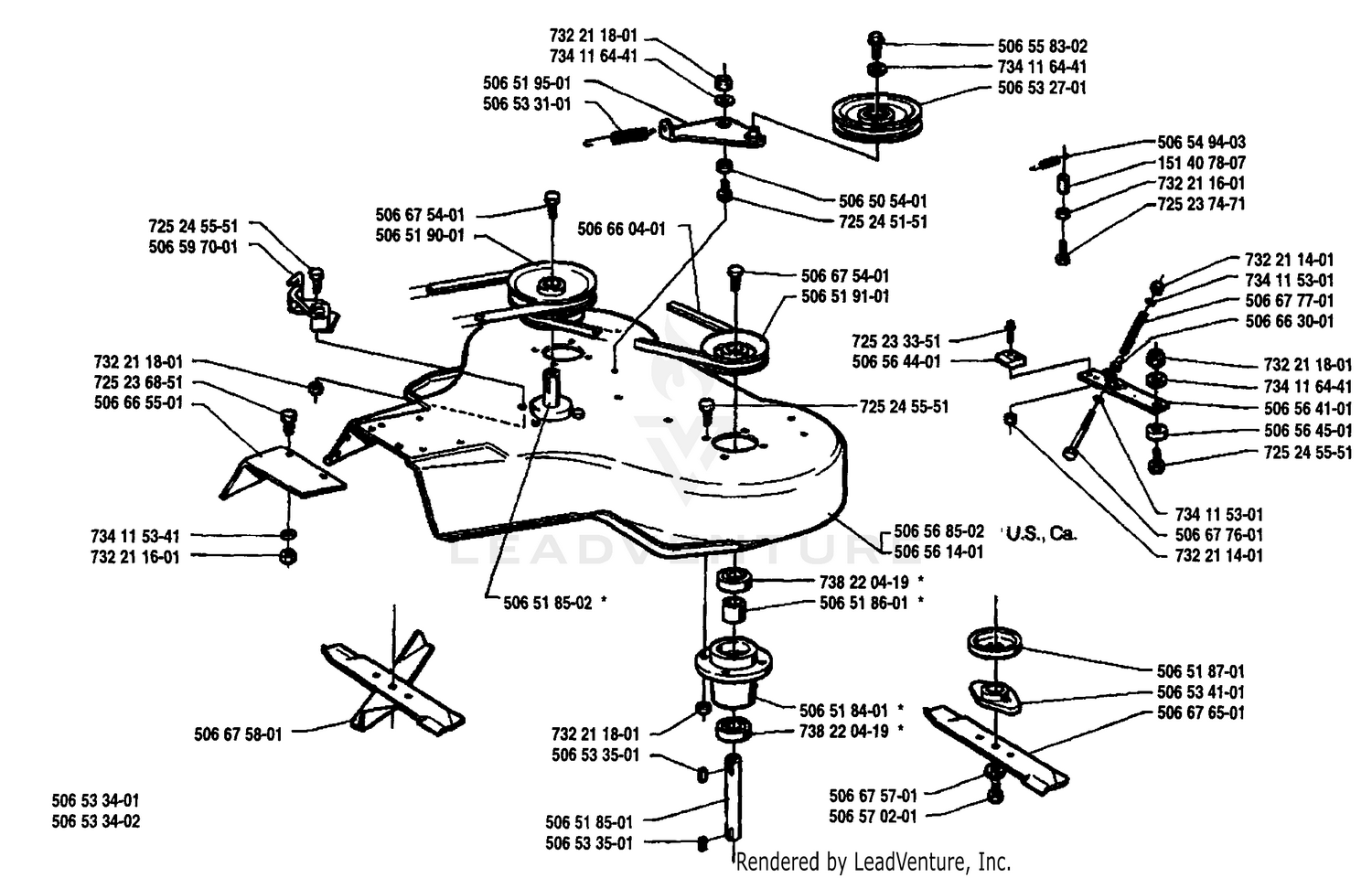

BLADE BEARING CPL Price: $120.06 |
| 506533501 |
506533501 |
KEY Price: $3.99 |
| 506534101 |
506534101 |
BLADE BOSS Price: $17.99 |
| 506549403 |
506549403 |
Price: $7.33 |
| 506558302 |
506558302 |
BOLT Price: $3.99 |
| 506564101 |
506564101 |
Price: $40.23 |
| 506564401 |
506564401 |
Price: $21.41 |
| 506564501 |
506564501 |
SPACER Price: $6.30 |
| 506568502 |
506568502 |
Price: $189.04 |
| 506570201 |
506675401 |
BOLT This part replaces 506570201. Price: $4.99 |
| 506597001 |
506597001 |
Price: $32.14 |
| 506660401 |
589530801 |
BELT This part replaces 506660401. Price: $32.99 |
| 506663001 |
506663001 |
SPACER Price: $17.99 |
| 506665501 |
506665501 |
Price: $20.21 |
| 506675401 |
506675401 |
BOLT Price: $4.99 |
| 506675701 |
734117441 |
WASHER This part replaces 506675701. Price: $3.99 |
| 506675801 |
506675801 |
SPREADER BLADE Price: $24.99 |
| 506676501 |
531005011 |
BLADE This part replaces 506676501. Price: $17.63 |
| 506677601 |
506677601 |
BOLT Price: $4.34 |
| 506677701 |
506677701 |
SPRING Price: $3.51 |
| 725233351 |
725233351 |
SCREW M6S 5X25 Price: $2.99 |
| 725236851 |
725236851 |
Screw Price: $1.32 |
| 725237471 |
725237471 |
SCREW M6S 6X30 Price: $4.99 |
| 725245151 |
725245151 |
SCREW 8X20 Price: $4.99 |
| 725245551 |
725245551 |
SCREW Price: $3.99 |
| 732211401 |
732211401 |
LOCKNUT M5 Price: $2.99 |
| 732211601 |
732211601 |
LOCKNUT M6 Price: $4.99 |
| 732211801 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 734115301 |
734115301 |
Washer Price: $0.34 |
| 734115341 |
734115341 |
Washer Price: $1.20 |
| 734116441 |
734116441 |
SPACER Price: $3.99 |
| 738220419 |
738220419 |
BALL-BEARING 6204-2RS Price: $14.99 |
