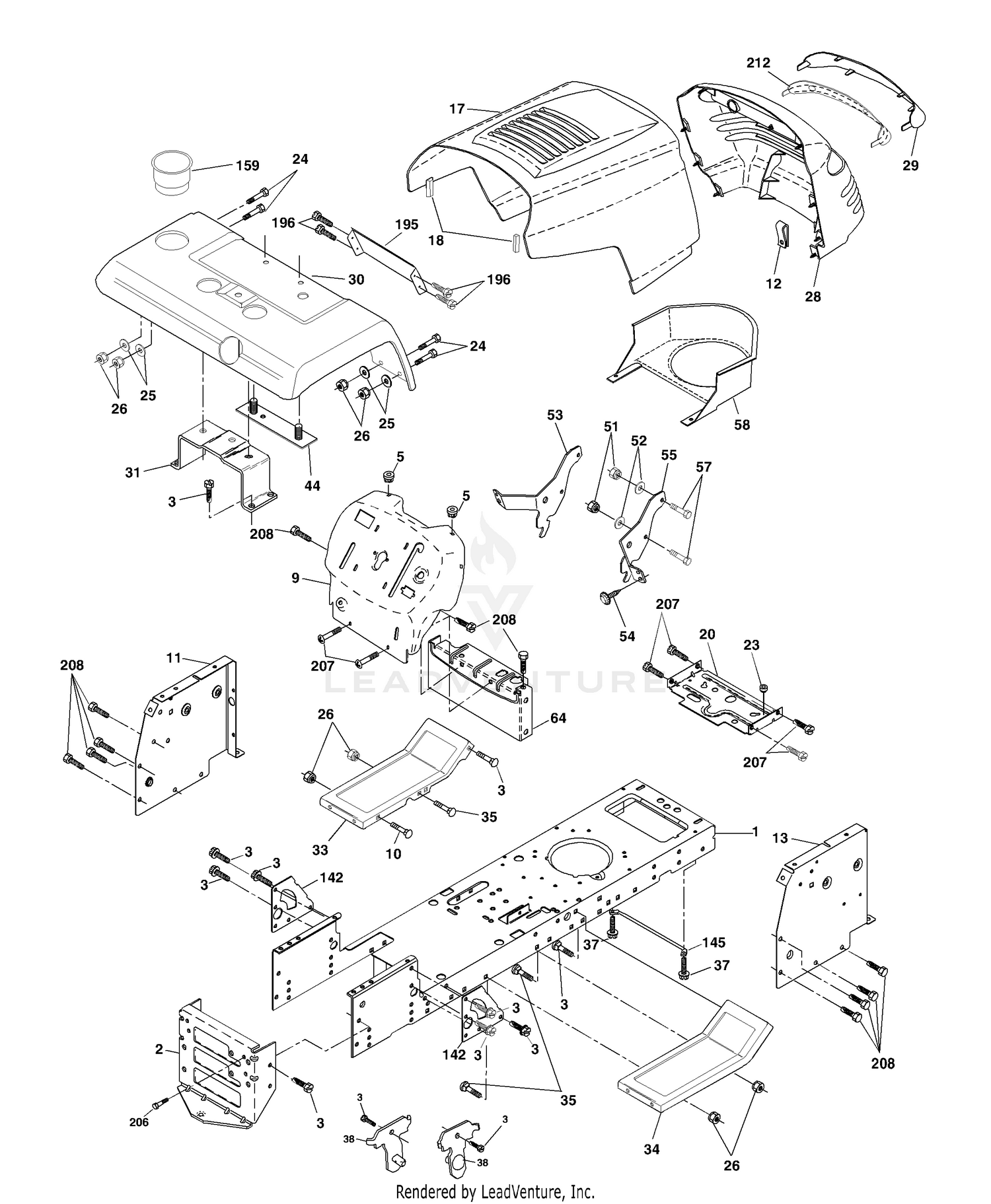

| Ref | Part Number | Description |
|---|
| 1 |
532169830 |
CHASSIS Price: $99.99 |
| 1 |
72-6580 |
ADJUSTER Price: $6.04 |
| 2 |
532176554 |
DRAWBAR, 12GA This part replaces 532169061. Price: $37.99 |
| 2 |
72-6570 |
SPRING Price: $6.53 |
| 3 |
72-6420 |
PILOT JET Price: $15.78 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
72-6320 |
SEAL Price: $5.85 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
72-6310 |
RING Price: $9.24 |
| 6 |
72-6300 |
SPRING Price: $10.56 |
| 7 |
72-6280 |
THROTTLE VALVE Price: $17.05 |
| 8 |
72-6270 |
DISCONTINUED Price: Call Us |
| 9 |
532168346 |
DASH SLKSCRN. This part replaces 532171682. Price: $29.54 |
| 9 |
72-6290 |
DISCONTINUED Price: Call Us |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
72-6330 |
SCREW Price: $1.27 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 11 |
72-6360 |
BOLT Price: $1.16 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 12 |
72-6350 |
CHOKE LEVER ASM Price: $48.23 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 13 |
72-6340 |
CHOKE VALVE Price: $24.87 |
| 14 |
72-6370 |
RING Price: $12.04 |
| 15 |
72-6380 |
RING Price: $2.85 |
| 16 |
72-6390 |
SPRING Price: $7.49 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 17 |
72-6400 |
CAP Price: $4.33 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 18 |
72-6410 |
SEAL Price: $2.42 |
| 19 |
72-6480 |
DISCONTINUED Price: Call Us |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 20 |
72-6490 |
AIR JET Price: $13.73 |
| 21 |
72-6510 |
PACKING Price: $8.04 |
| 22 |
72-6450 |
NEEDLE ASM Price: $23.82 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 23 |
72-6460 |
DISCONTINUED Price: Call Us |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 24 |
72-6470 |
DISCONTINUED Price: Call Us |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 25 |
72-6520 |
FLOAT BODY ASM Price: $35.33 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 26 |
72-6550 |
STOP SPRING Price: $3.85 |
| 27 |
72-6560 |
DISCONTINUED Price: Call Us |
| 28 |
532179845 |
GRILLE/LENS ASM This part replaces 532170475. Price: $173.99 |
| 28 |
72-6540 |
BOLT Price: $14.31 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 29 |
72-6530 |
PACKING Price: $2.24 |
| 30 |
532167287 |
FENDER This part replaces 532169426. Price: $109.23 |
| 30 |
72-6440 |
NOZZLE Price: $38.90 |
| 31 |
532183569 |
BRACKET ASM., FENDER This part replaces 532175315. Price: $9.99 |
| 31 |
72-6430 |
MAIN NOZZLE Price: $37.35 |
| 32 |
72-6500 |
JET This part replaces 72-6650. Price: $8.96 |
| 33 |
532147203 |
FOOT REST LH Price: $9.15 |
| 33 |
72-6260 |
DISCONTINUED Price: Call Us |
| 34 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532147202. Price: $9.15 |
| 34 |
72-6500 |
JET Price: $8.96 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 35 |
72-6600 |
HOSE Price: $23.02 |
| 36 |
72-6610 |
SCREW Price: $11.47 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 44 |
532140675 |
STRAP Price: $5.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532174930 |
DUCT, INTAKE AIR Price: $19.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 159 |
583710501 |
CUPHOLDER.YTGT.TWIST LOCK.418 This part replaces 532166625. Price: $9.99 |
| 195 |
532177070 |
PANEL PNT FENDER YT/GT Price: $26.12 |
| 196 |
596437001 |
Screws This part replaces 817580408. Price: $2.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
