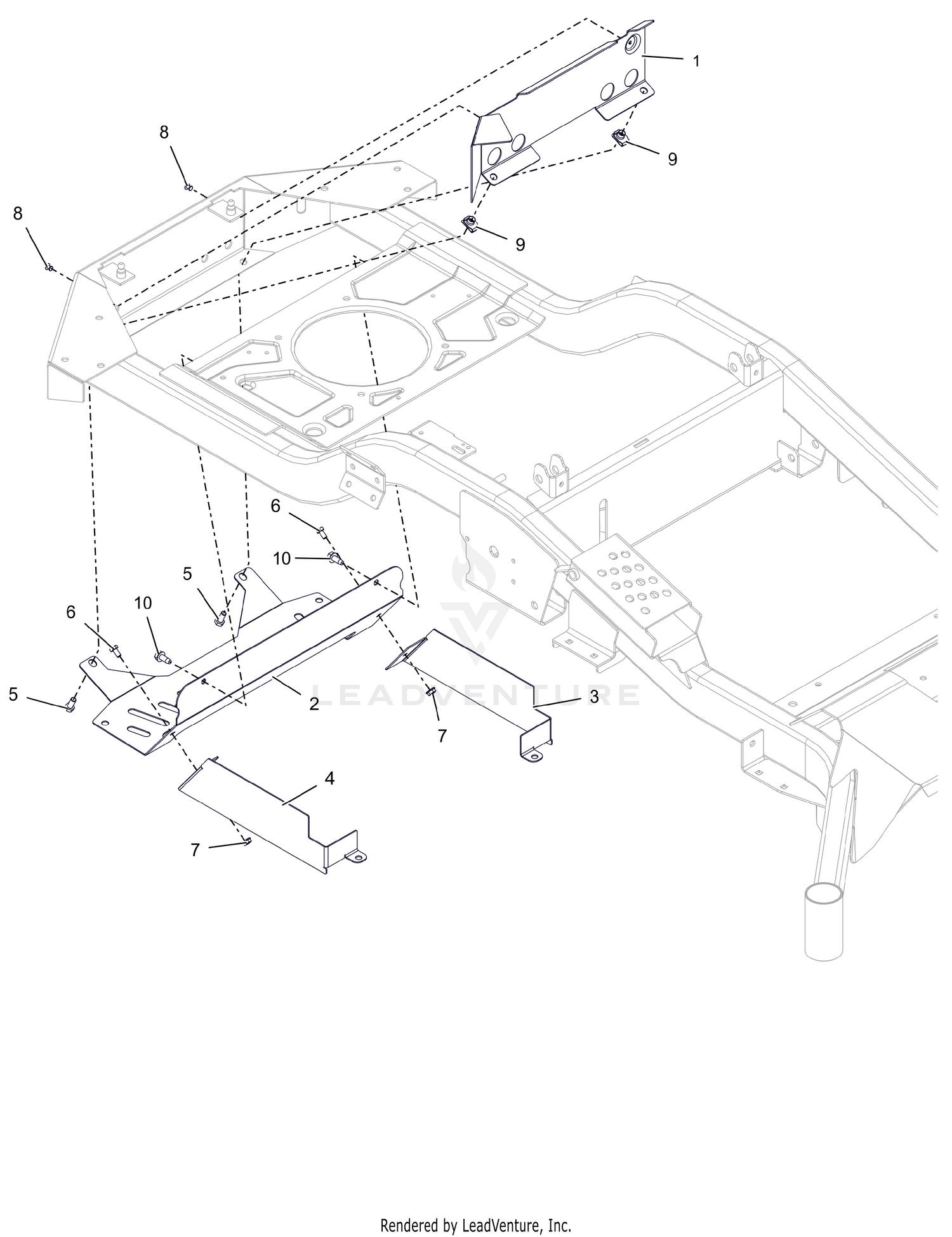

Heat Shield
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 30279351 | BAFFLE, HEAT SHIELD (BLACK) Price: $12.45 |
| 2 | 05082851 | SHIELD, HEAT (HD) Price: $40.95 |
| 3 | 05140751 | GUARD,REAR CLUTCH LH Price: $30.95 |
| 4 | 05140851 | GUARD,REAR CLUTCH RH Price: $30.95 |
| 5 | 05901704 | BLT,HEX .31-18X.75 G5 ZCC Price: $1.45 |
| 6 | 05901705 | BLT,HEX .25-20X.50 G5 ZCC Price: $0.45 |
| 7 | 06500903 | NUT-LK-TOP-FLG .250-20 GF ZCC Price: $0.95 |
| 8 | 06800228 | RVT-POP .187x.250 (#64) BLK Price: $0.45 |
| 9 | 07000829 | NUT-CLIP RETAINER 5/16-18X.56 Price: $2.45 |
