| Ref | Part Number | Description |
|---|
| 1 |
94-3645 |
KEY Price: $13.07 |
| 2 |
94-6359 |
SHAFT-DRIVE Price: $675.42 |
| 3 |
94-6363 |
BEARING Price: $38.77 |
| 4 |
98-4640 |
SCREW-CAP Price: $7.46 |
| 5 |
98-4644 |
PLATE-COVER Price: $310.82 |
| 6 |
100-3179 |
O-RING Price: $21.08 |
| 7 |
100-3182 |
SHIM KIT Price: $404.35 |
| 8 |
98-4639 |
BEARING-CONE Price: $74.90 |
| 9 |
94-3646 |
KEY Price: $6.56 |
| 10 |
100-3175 |
CAMPLATE Price: $1,100.72 |
| 11 |
76-6070 |
ROTATING KIT Price: $1,788.80 |
| 12 |
33-4930 |
GASKET-HOUSING Price: $24.06 |
| 13 |
100-3180 |
PLATE-VALVE Price: $373.14 |
| 14 |
94-6368 |
BEARING Price: $37.58 |
| 15 |
76-6150 |
PIN-DOWEL Price: $1.42 |
| 16 |
100-3177 |
BACK PLATE ASM Price: $1,291.57 |
| 18 |
70-1240 |
PLUG ASM Price: $51.46 |
| 19 |
100-3178 |
SPRING Price: $8.96 |
| 20 |
94-3644 |
SEAT Price: $103.95 |
| 21 |
100-3181 |
DISCONTINUED Price: Call Us |
| 22 |
76-6170 |
CAPSCREW Price: $2.65 |
| 23 |
76-6160 |
CAPSCREW Price: $3.95 |
| 25 |
98-4645 |
PLATE-COVER Price: $645.16 |
| 29 |
100-3176 |
HOUSING ASM Price: $1,172.62 |
| 30 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 31 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 32 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 33 |
33-3720 |
WASHER Price: $11.87 |
| 34 |
104-4861 |
SEAL-SHAFT This part replaces 42-2720. Price: $28.44 |
| 35 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 39 |
98-4635 |
INSERT-PLATE, CAM Price: $167.59 |
| 42 |
74-9040 |
COUPLER Price: $73.91 |
| 503200823 |
725533355 |
SCREW MC6S 5X25 This part replaces 503200823. Price: $3.99 |

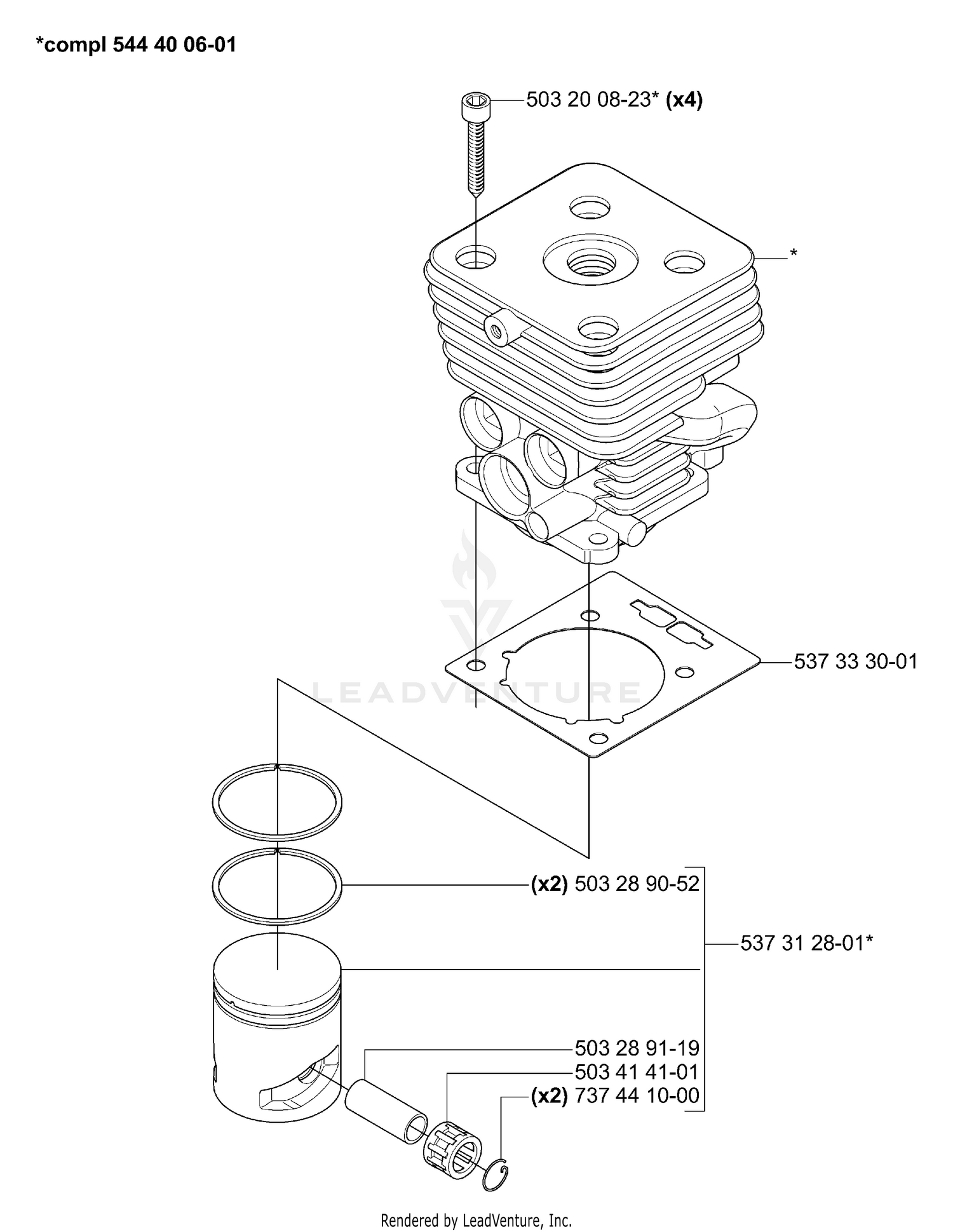

| 503289052 |
503289052 |
PISTON RING Price: $22.99 |
| 503289119 |
503289119 |
PISTON BOLT Price: $5.99 |
| 503414101 |
503414101 |
SUPPORT BUSHING Price: $11.99 |
| 537312801 |
585998302 |
PISTON ASSY This part replaces 537312801. Price: $74.99 |
| 537333001 |
537333002 |
GASKET CYLINDER This part replaces 537333001. Price: $4.99 |
| 544400601 |
574364301 |
CYLINDER ASSY This part replaces 544400601. Price: $159.99 |
