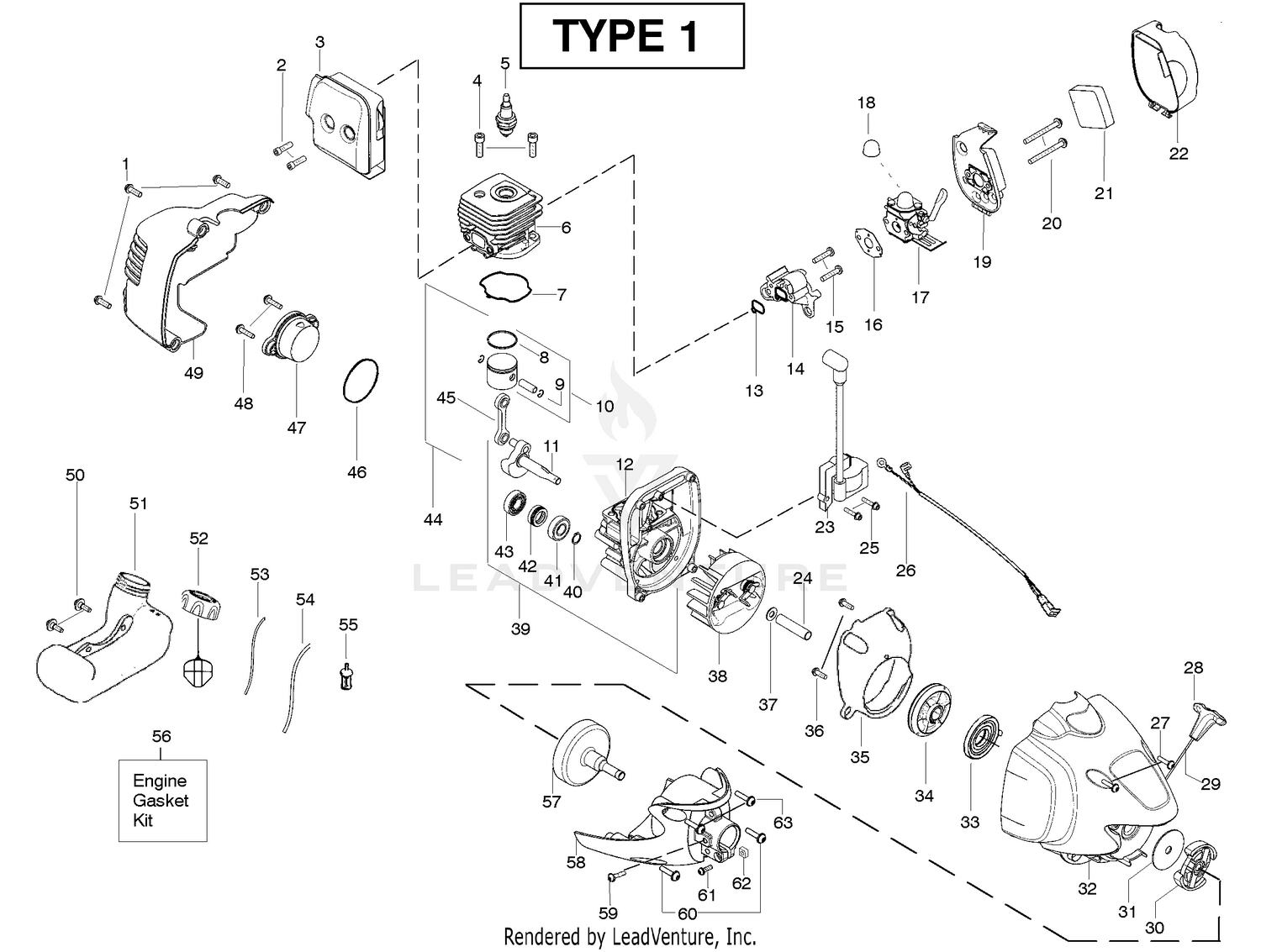

| Ref | Part Number | Description |
|---|
| 1 |
40-3950 |
WASHER Price: $2.49 |
| 1 |
530015880 |
Screw Price: $1.99 |
| 2 |
39-9500 |
DISCONTINUED Price: Call Us |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 3 |
40-3960 |
DISCONTINUED Price: Call Us |
| 4 |
40-3970 |
DISCONTINUED Price: Call Us |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
40-3980 |
DISCONTINUED Price: Call Us |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 |
40-3990 |
DISCONTINUED Price: Call Us |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
40-4000 |
DISCONTINUED Price: Call Us |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
40-4010 |
ROLLER Price: $10.88 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
40-4020 |
DISCONTINUED Price: Call Us |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 10 |
40-4030 |
DISCONTINUED Price: Call Us |
| 11 |
40-4040 |
DISCONTINUED Price: Call Us |
| 11 |
545145802 |
ASSY CRANKSHAFT This part replaces 530012579. Price: $17.99 |
| 12 |
40-4050 |
DISCONTINUED Price: Call Us |
| 13 |
40-4060 |
DISCONTINUED Price: Call Us |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
1-613235 |
WASHER This part replaces 40-4070. Price: $1.49 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
40-4080 |
U-TRACK Price: $16.69 |
| 15 |
530016441 |
Screw Price: $1.99 |
| 16 |
40-4090 |
RIVET Price: $2.50 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 17 |
40-4100 |
TRIBLE BRG Price: $258.78 |
| 18 |
39-9310 |
DISCONTINUED Price: Call Us |
| 18 |
530058709 |
Bulb - Purge Price: $4.99 |
| 19 |
40-4110 |
DISCONTINUED Price: Call Us |
| 19 |
545077501 |
Air Box Price: $7.99 |
| 20 |
40-4120 |
RUBBER Price: $5.47 |
| 20 |
530016429 |
Screw Price: $1.99 |
| 21 |
40-4130 |
DISCONTINUED Price: Call Us |
| 21 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 22 |
39-9520 |
DISCONTINUED Price: Call Us |
| 22 |
530057545 |
Cover-Air Box Price: $3.99 |
| 23 |
40-4140 |
DISCONTINUED Price: Call Us |
| 23 |
530035505 |
Ignition Module Price: $29.99 |
| 24 |
40-4150 |
ROLLER Price: $7.98 |
| 24 |
530059758 |
Spacer-Flywheel Price: $4.99 |
| 25 |
40-4160 |
GUIDE-SLEEVE Price: $4.51 |
| 25 |
530016357 |
Screw Price: $1.99 |
| 26 |
40-4170 |
HANDLE Price: $14.31 |
| 26 |
545015601 |
Assy-Switch wire Price: $11.99 |
| 27 |
40-4180 |
TOGGLE Price: $36.79 |
| 27 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 28 |
40-4190 |
DISCONTINUED Price: Call Us |
| 28 |
530054834 |
Handle-Starter Price: $1.99 |
| 29 |
40-4200 |
DISCONTINUED Price: Call Us |
| 29 |
530071798 |
Kit - Rope Price: $3.99 |
| 30 |
40-4210 |
DISCONTINUED Price: Call Us |
| 30 |
530055122 |
Assy-Clutch Price: $8.99 |
| 31 |
40-4220 |
DISCONTINUED Price: Call Us |
| 31 |
530094189 |
Washer-Clutch Price: $2.99 |
| 32 |
40-4230 |
PLUG Price: $6.02 |
| 32 |
545016004 |
Assy.-Fan Hsg Price: $17.99 |
| 33 |
40-4240 |
DISCONTINUED Price: Call Us |
| 33 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 34 |
40-4250 |
DISCONTINUED Price: Call Us |
| 34 |
545050407 |
Kit-Starter Pulley Price: $11.99 |
| 35 |
40-4260 |
DISCONTINUED Price: Call Us |
| 35 |
545080601 |
Baffle Price: $6.99 |
| 36 |
40-4270 |
DISCONTINUED Price: Call Us |
| 36 |
530015880 |
Screw Price: $1.99 |
| 37 |
40-4280 |
DISCONTINUED Price: Call Us |
| 37 |
530016463 |
Washer-Clutch Flat Price: $1.99 |
| 38 |
40-4290 |
DISCONTINUED Price: Call Us |
| 38 |
530039243 |
Assy-Flywheel Price: $27.99 |
| 39 |
40-4300 |
DISCONTINUED Price: Call Us |
| 40 |
40-4310 |
BEARING-THRUST, NEEDLE Price: $36.99 |
| 40 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 41 |
40-4320 |
SHOCK ABSORBER Price: $153.23 |
| 41 |
530055728 |
Outer Bearing Price: $6.99 |
| 42 |
40-4330 |
COIL SPRING Price: $82.62 |
| 42 |
530019264 |
Seal-C'shaft Price: $2.99 |
| 43 |
40-4340 |
SPRING-COIL Price: $13.82 |
| 43 |
530032125 |
Inner Bearing Price: $11.99 |
| 44 |
40-4350 |
SPRING-COIL Price: $6.64 |
| 45 |
40-4360 |
PLATE Price: $6.60 |
| 45 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 46 |
40-4370 |
BOLT Price: $1.05 |
| 46 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 48 |
530016386 |
Screw Price: $5.99 |
| 49 |
530057539 |
Shroud-Rear Price: $7.99 |
| 50 |
530016445 |
Retainer-Tank Price: $1.99 |
| 52 |
530057973 |
Assy-Fuel Cap Price: $7.99 |
| 53 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 54 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 55 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 57 |
530150247 |
Assy-Clutch Drum Price: $17.99 |
| 59 |
530016319 |
Screw-Align Price: $1.99 |
| 60 |
530015772 |
Screw Price: $1.99 |
| 61 |
530016381 |
Screw 12-24 Price: $2.99 |
| 62 |
530016382 |
Nut 12-24 Price: $2.99 |
