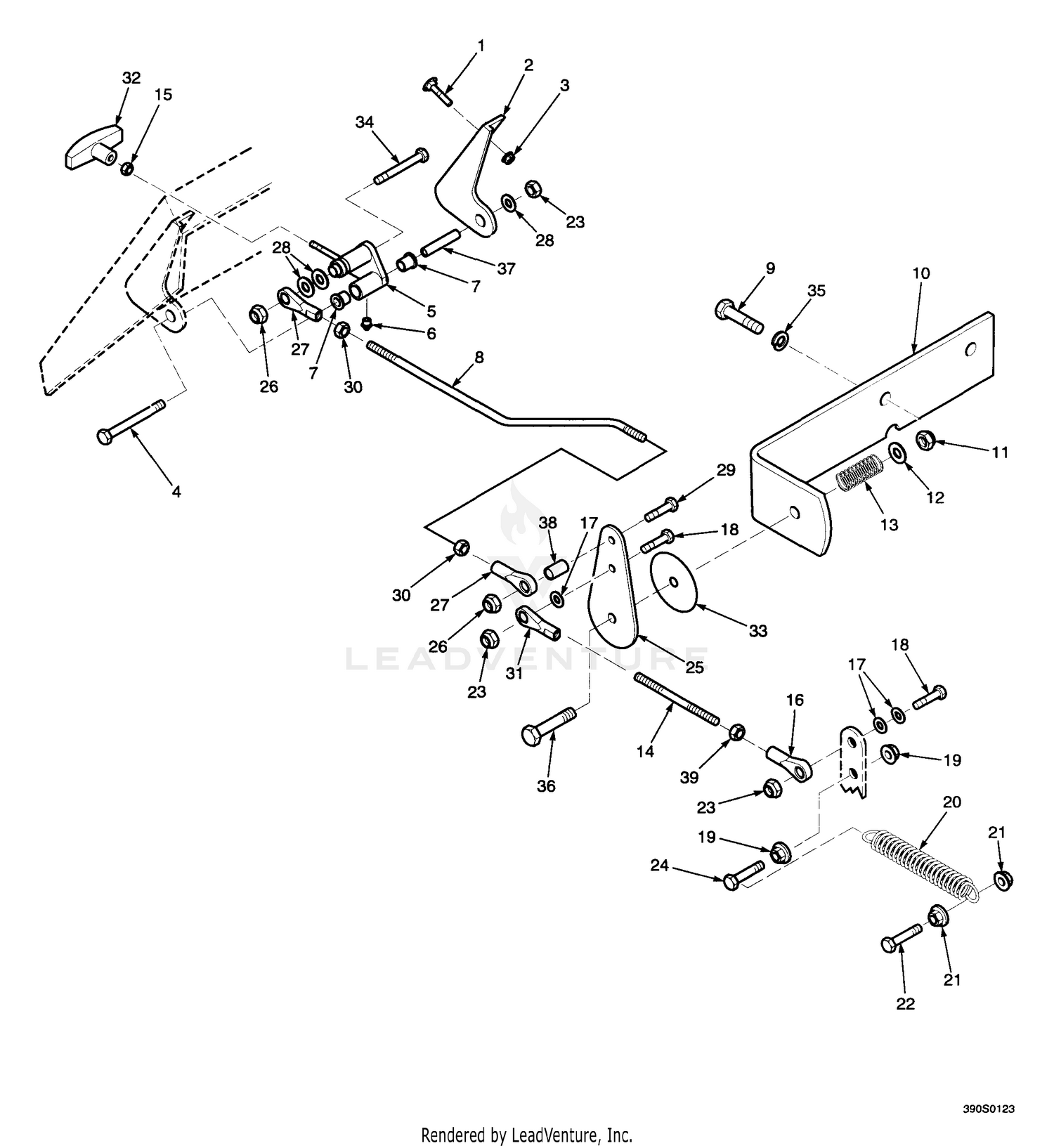

Throttle Linkage

Throttle Linkage

Parts (37)

RefPart NumberDescription
1 04003-02 Carriage Bolt, 1/4-20 x .75 Price: Call Us
2 421776 Mounting Base, Throttle Price: Call Us
3 04019-02 Serr. Fl. Hex Nut, 1/4-20 Price: Call Us
4 04001-13 Bolt, Hex Head, 5/16-18 x 2-3/4 Price: Call Us
6 48114-05 Grease Fitting Price: Call Us
7 48100-04 Bushing, Oilite - .5O I.D. Price: Call Us
8 44115 Rod, Throttle Control Price: Call Us
9 04002-11 Bolt, Hex Head, M10 - 1.25 x 30 Price: Call Us
10 45822 Mounting Bracket, Throttle Price: Call Us
11 04021-13 Hex Locknut, Elastic Stop, 5/8-11 Price: Call Us
12 04041-10 Flatwasher, 5/8 Price: Call Us
13 481244 Spring, Friction Control Price: Call Us
14 04004-26 Stud, 5/16-24 x 4.50 Price: Call Us
15 04020-03 Hex Nut, 5/16-18 Price: Call Us
16 481189 Rod End, 5/16-24 RH Thread Price: Call Us
17 04040-04 Flatwasher, 5/16 (.344 x.688 x .065) Price: Call Us
18 04001-10 Bolt, Hex Head, 5/16-18 x 1-1/4 Price: Call Us
19 04019-02 Serr. Fl. Hex Nut, 1/4-20 Price: Call Us
20 481314 Spring, Throttle Control Price: Call Us
21 04019-03 Serr. Fl. Hex Nut, 5/16-18 Price: Call Us
22 04001-39 Bolt, Hex Head, 5/16-18 x 2-1/4 Price: Call Us
23 04021-10 Hex Locknut, Elastic Stop, 5/16-18 Price: Call Us
24 04001-59 Bolt, Hex Head, 1/4-20 x 1-14 Price: Call Us
25 421997 Lever, Throttle Price: Call Us
26 04021-09 Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us
27 48464 Ball Joint, 3/8-24 RH Thread Price: Call Us
28 04040-04 Flatwasher, 5/16 Price: Call Us
29 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us
30 04020-14 Hex Nut, 3/8-24 Price: Call Us
31 481188 Rod End, 5/16-24 LH Thread Price: Call Us
32 481092 Knob, Shifter Price: Call Us
33 481243 Disc, Friction Price: Call Us
34 04001-51 Bolt, Hex Head, 3/8-16 x 3-3/4 Price: Call Us
35 04030-05 Lockwasher, 7/16” Spring Price: Call Us
36 04001-125 Bolt, Hex Head, 5/8-11 X 3-1/2 Price: Call Us
37 43110 Sleeve Price: Call Us
38 43212 Spacer, Deck Assist Price: Call Us
