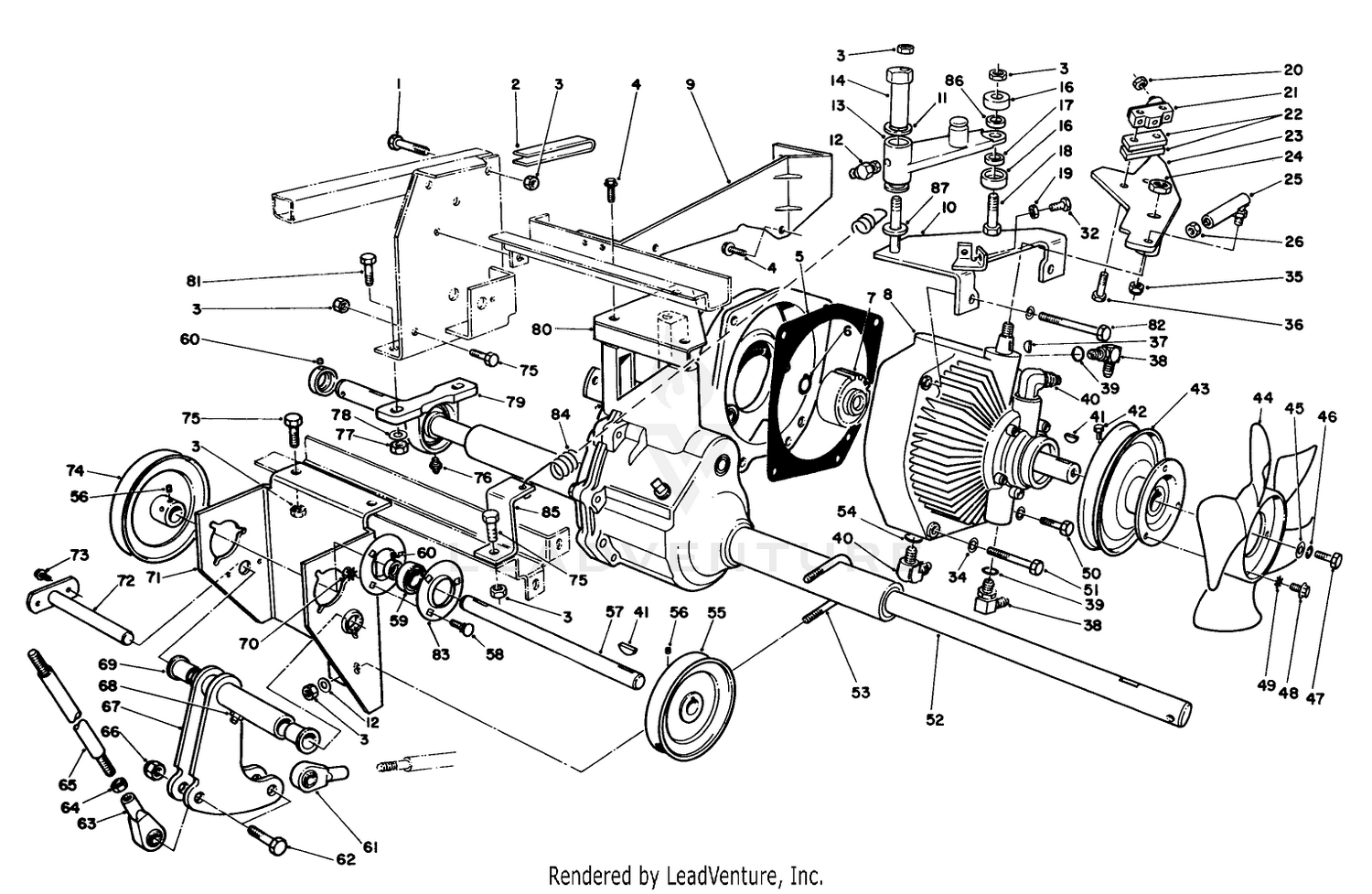

| Ref | Part Number | Description |
|---|
| 1 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 2 |
80-3750 |
TUBE SPACER Price: $12.20 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 5 |
108319 |
GASKET This part replaces 55-4320. Price: $5.88 |
| 6 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 7 |
54-0320 |
GEAR-SPUR Price: Call Us |
| 8 |
54-0080 |
HYDROSTATIC TRANS. Price: Call Us |
| 9 |
59-1620-03 |
TRANSAXLE BRKT This part replaces 59-1620. Price: $52.33 |
| 10 |
92-6270-03 |
TRACTION PLATE WA This part replaces 92-6270. Price: $129.46 |
| 11 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 12 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 13 |
92-6289 |
Swing Arm Assembly (Incl. Ref.# 24) Price: Call Us |
| 14 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 16 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 17 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 18 |
322-7 |
SCREW-HH Price: $0.89 |
| 19 |
3217-6 |
NUT-HEX Price: $1.19 |
| 20 |
3296-9 |
NUT-HEX Price: $0.25 |
| 21 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 22 |
75-4130 |
PLATE-SWITCH Price: $13.26 |
| 23 |
92-6269 |
Lever-Traction Price: Call Us |
| 24 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 25 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 26 |
3220-1 |
NUT-JAM Price: $0.99 |
| 32 |
322-6 |
SCREW-HH Price: $0.45 |
| 35 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 36 |
3250-46 |
SCREW-PPH Price: $18.99 |
| 37 |
3257-24 |
KEY-WOODRUFF Price: $2.49 |
| 38 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 39 |
237-79 |
O-RING Price: $5.46 |
| 40 |
353-370 |
FITTING-ELBOW, 90 DEG Price: $74.99 |
| 41 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 42 |
3241-7 |
SCREW-SQH This part replaces 3241-2. Price: $3.39 |
| 43 |
54-0930 |
TRANS PULLEY Price: Call Us |
| 44 |
54-0240 |
FAN 8" Price: Call Us |
| 45 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 46 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 47 |
321-2 |
SCREW-HH Price: $2.79 |
| 48 |
32144-19 |
SCREW-SHWH Price: $0.89 |
| 49 |
3255-5 |
WASHER-LOCK, EXT Price: $0.25 |
| 50 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 51 |
323-16 |
SCREW-HH Price: $2.89 |
| 52 |
98-2850 |
ASM-TRANSAXLE/DIFF. This part replaces 13-5969. Price: $1,840.29 |
| 53 |
54-8970 |
U-BOLT Price: $11.66 |
| 54 |
237-80 |
O-RING Price: $6.10 |
| 55 |
54-2380 |
JACKSHAFT INPUT PULLEY Price: $63.75 |
| 56 |
3241-1 |
SCREW-SET, SQH Price: $22.99 |
| 57 |
54-1600 |
JACKSHAFT Price: $124.41 |
| 58 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 59 |
251-288 |
BEARING-BALL Price: $85.99 |
| 60 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 61 |
251-304 |
BALL JOINT LH Price: $51.06 |
| 62 |
324-7 |
SCREW-HH Price: $1.79 |
| 63 |
251-305 |
BALL JOINT RH Price: $76.99 |
| 64 |
3220-4 |
NUT-JAM Price: $2.49 |
| 65 |
54-1490-03 |
DISCONTINUED This part replaces 54-1490. Price: Call Us |
| 66 |
32152-9 |
NUT-HEX Price: $7.99 |
| 67 |
54-2060 |
Bellcrank (Incl. Ref. #68 69) Price: Call Us |
| 68 |
302-49 |
GREASE FITTING Price: $3.29 |
| 69 |
46-6680 |
BUSHING PM Price: $15.97 |
| 70 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 71 |
60-9130 |
Bracket-Jackshaft Price: Call Us |
| 72 |
59-1470-03 |
BELLCRANK SHFT ASM This part replaces 59-1470. Price: $34.07 |
| 73 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 74 |
54-2390 |
JACKSHAFT OUTPUT PULLEY Price: $56.42 |
| 75 |
322-4 |
SCREW-HH Price: $0.35 |
| 76 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 77 |
33296-44 |
Nut-Lock Price: Call Us |
| 78 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 79 |
72-4060 |
BEARING - PILLOW BLOCK Price: Call Us |
| 80 |
60-8990 |
TRANSAXLE PLATE Price: $18.31 |
| 81 |
323-8 |
SCREW-HH Price: $1.20 |
| 82 |
323-14 |
SCREW-HH Price: $1.34 |
| 83 |
251-341 |
FLANGE Price: $10.73 |
| 84 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 85 |
92-6273-03 |
SPRING ANCHOR BRKT This part replaces 92-6273. Price: $36.81 |
| 86 |
92-6290 |
SPACER Price: $2.84 |
