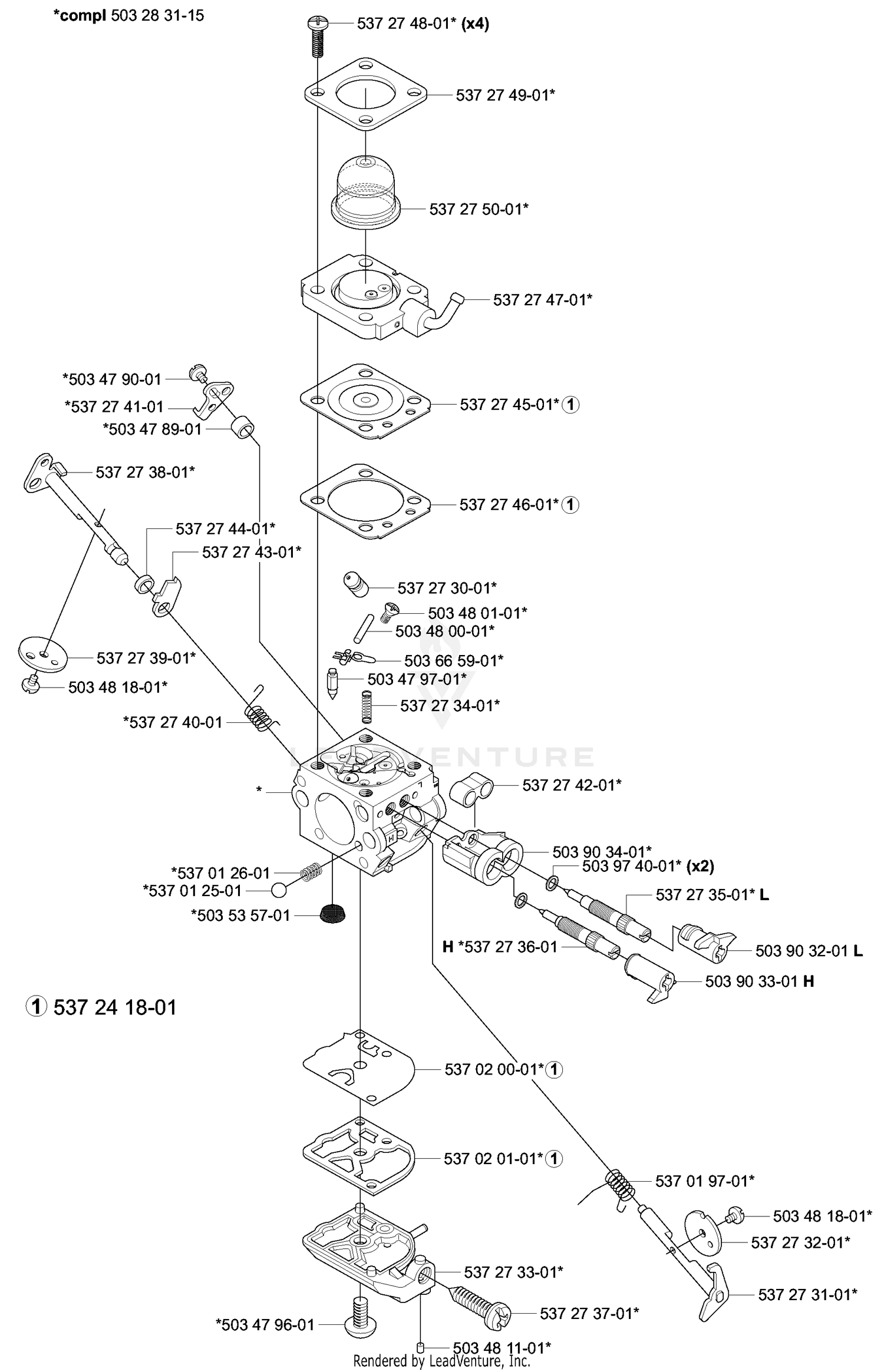

Carburetor Parts
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 503283115 | 544112501 | CARBURETOR This part replaces 503283115. Price: $109.99 |
| 503478901 | 503478901 | SPACER Price: $3.99 |
| 503479001 | 503479001 | SCREW Price: $2.99 |
| 503479601 | 503479601 | SCREW Price: $2.99 |
| 503479701 | 503479701 | INLET NEEDLE Price: $8.99 |
| 503480001 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 503480101 | 503480101 | SCREW Price: $2.99 |
| 503481101 | 503481101 | PLUG Price: $3.99 |
| 503481801 | 503481801 | SCREW Price: $2.99 |
| 503535701 | 503535701 | STRAINER Price: $3.99 |
| 503665901 | 503665901 | LEVER Price: $3.99 |
| 503903201 | 503903201 | LIMITER CAP Price: $4.99 |
| 503903301 | 503903301 | LIMITER CAP Price: $3.99 |
| 503903401 | 503903401 | SLEEVE Price: $6.99 |
| 503974001 | 503974001 | WASHER Price: $2.99 |
| 537012501 | 537012501 | BALL Price: $2.99 |
| 537012601 | 537012601 | SPRING Price: $2.99 |
| 537019701 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 537020001 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 537020101 | 537020101 | GASKET Price: $3.99 |
| 537241801 | 537241801 | GASKET SET Price: $24.99 |
| 537273001 | 537273001 | JET Price: $23.99 |
| 537273101 | 537273101 | SHAFT Price: $23.99 |
| 537273201 | 537273201 | WASHER Price: $6.99 |
| 537273301 | 537273301 | COVER Price: $32.99 |
| 537273401 | 537273401 | SPRING Price: $4.99 |
| 537273501 | 537273501 | LOW SPEED NEEDLE Price: $22.99 |
| 537273601 | 537383801 | NEEDLE HIGH SPEED This part replaces 537273601. Price: $14.99 |
| 537273701 | 537273701 | SCREW Price: $12.99 |
| 537273801 | 537273801 | SHAFT Price: $22.17 |
| 537273901 | 537273901 | WASHER Price: $4.99 |
| 537274001 | 537274001 | SPRING Price: $3.99 |
| 537274101 | 537274101 | ARM Price: $5.99 |
| 537274201 | 537274201 | SLEEVE Price: $5.99 |
| 537274301 | 537274301 | ARM Price: $4.78 |
| 537274401 | 537274401 | WASHER Price: $3.16 |
| 537274501 | 537274501 | DIAPHRAGM Price: $17.73 |
| 537274601 | 537274601 | GASKET Price: $5.99 |
| 537274701 | 537274701 | COVER Price: $74.99 |
| 537274801 | 537274801 | SCREW Price: $2.99 |
| 537274901 | 537274901 | WASHER Price: $4.99 |
