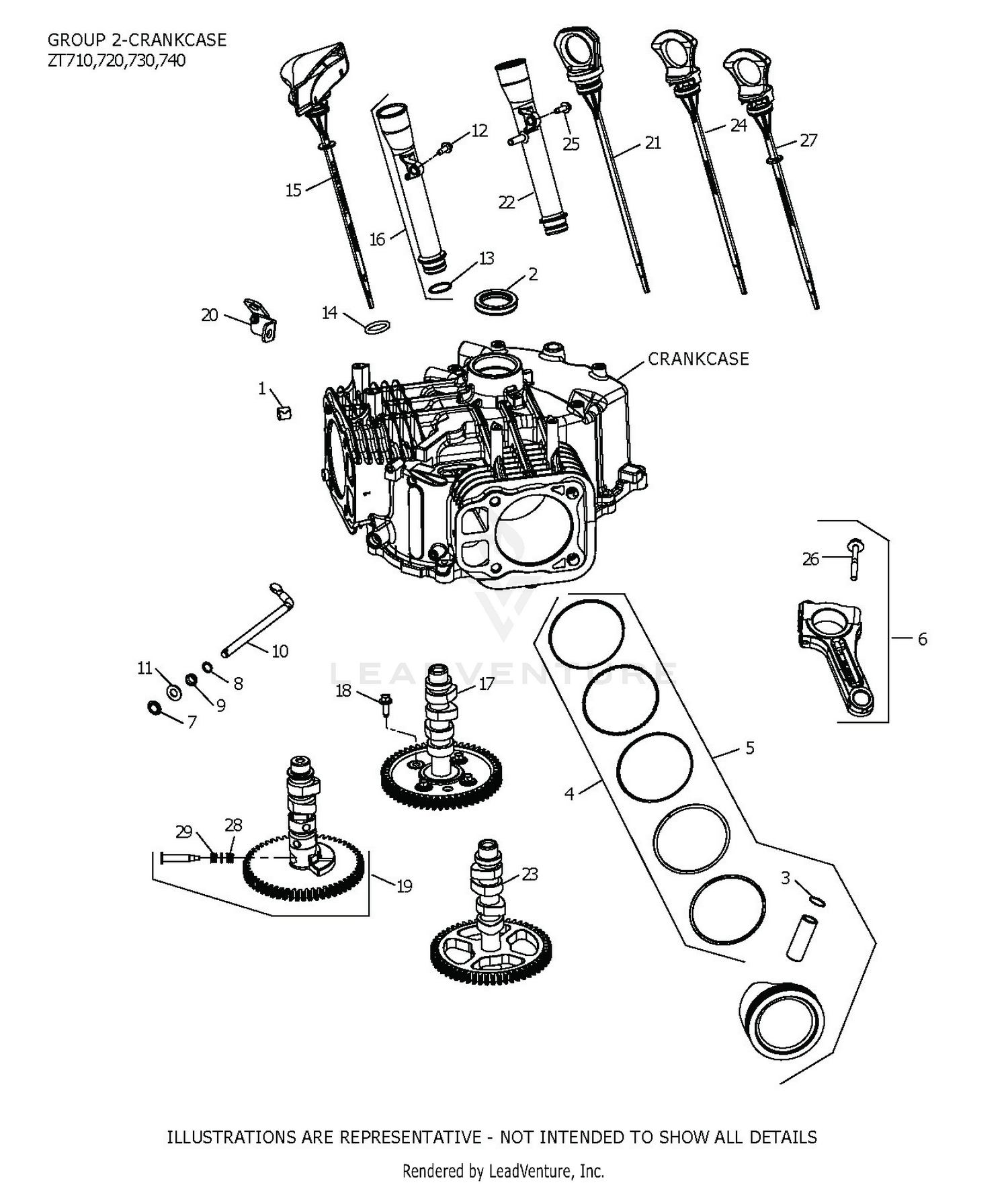

ZT740-3055 CrankCase
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | KH-24-380-16-S | PIN-SPLIT DOWEL Price: $4.02 |
| 2 | KH-24-032-19-S | OIL SEAL Price: $6.93 |
| 3 | KH-24-018-01-S | RETAINER-PISTON Price: $2.29 |
| 4 | KH-25-108-01-S | RING SET(STD)STYLE B-1.2mm Tp RING THICK Price: $61.62 |
| 4 | KH-25-108-02-S | RING SET(.08)STYLE B-1.2mm Tp RING THICK Price: $23.53 |
| 4 | KH-25-108-03-S | RING SET(.25)STYLE B-1.2mm Tp RING THICK Price: $25.30 |
| 4 | KH-25-108-04-S | RING SET(.50)STYLE B-1.2mm Tp RING THICK Price: $100.05 |
| 5 | KH-25-874-14-S | PISTON KIT (STD) Price: $169.62 |
| 5 | KH-25-874-18-S | PISTON KIT (+0.08) Price: $173.62 |
| 5 | KH-25-874-19-S | PISTON KIT (+0.25) Price: $212.05 |
| 5 | KH-25-874-20-S | PISTON KIT (+0.50) Price: $209.71 |
| 6 | KH-25-067-04-S | CONNECTING ROD ASSEMBLY Price: $57.73 |
| 8 | KH-24-468-15-S | WASHER-1/4 FLAT Price: $2.29 |
| 9 | KH-28-032-09-S | SEAL Price: $3.19 |
| 10 | KH-32-755-22-S | CROSS CARBURETOR SHAFT KIT Price: $3.91 |
| 11 | KH-M-931010-S | WASHER-9MM FLAT Price: $2.11 |
| 13 | KH-12-153-07-S | O-RING This part replaces KH-12-153-07. Price: $2.22 |
| 14 | KH-25-153-09-S | O-RING DIPSTICK Price: $3.24 |
| 16 | KH-32-123-14-S | DIPSTICK TUBE Price: $6.67 |
| 20 | KH-24-126-243-S | BRACKET-OIL FILL TUBE Price: $9.30 |
| 23 | KH-32-010-07-S | CAMSHAFT ASSEMBLY Price: $83.02 |
| 24 | KH-32-038-14-S | DIPSTICK Price: $8.89 |
| 25 | KH-25-086-398-S | Thread Forming Screw This part replaces KH-25-086-651-S. Price: $3.45 |
| 26 | KH-25-086-677-S | ROD BOLTS KIT This part replaces KH-25-086-452-S. Price: $1.94 |
