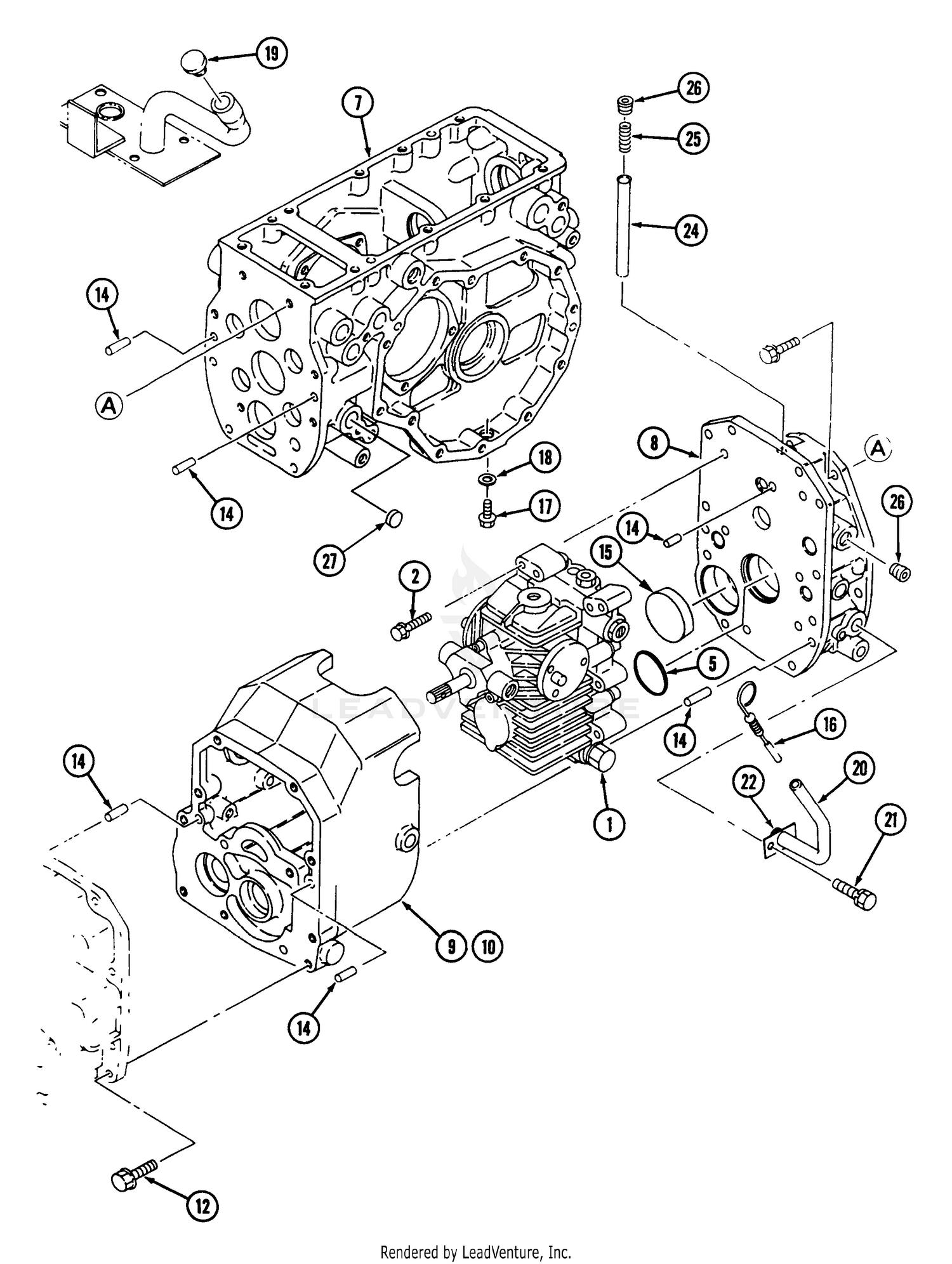

Transmission Live - 2WD
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 75-6180 | HOSE Price: $72.14 |
| 1 | MA-19631301000 | HST UNIT Not Available Price: |
| 2 | 237-21 | O-RING Price: $0.70 |
| 2 | MA-F1550110055 | BOLT,W/SPRING WASH Not Available Price: |
| 3 | 340-92 | FITTING-STRAIGHT Price: $12.29 |
| 4 | 237-78 | O-RING Price: $3.85 |
| 5 | 353-512 | PLUG Price: $15.26 |
| 5 | MA-08300500560 | O-RING Not Available Price: |
| 6 | 321-11 | SCREW-HH Price: $0.36 |
| 7 | 75-1180 | BLOCK-MANIFOLD, 4 PORT Price: $187.64 |
| 8 | 340-132 | FITTING-ELBOW, 90 DEG Price: $24.64 |
| 8 | MA-19631302AG0 | CASE CENTER Not Available Price: |
| 9 | 93-0118 | HOSE ASM Price: $123.69 |
| 10 | 32128-33 | NUT-HF Price: $0.25 |
| 10 | MA-19631304AG0 | CASE HST Not Available Price: |
| 11 | 340-143 | ELBOW-SWIVEL, 90 DEG Price: $58.91 |
| 12 | MA-F1552110035 | Bolt Price: Call Us |
| 13 | 82-8270 | FLOW CONTROL VALVE Price: $181.62 |
| 14 | 75-6080 | HOSE ASM Price: $53.86 |
| 14 | MA-05401010020 | PIN Not Available Price: |
| 15 | 75-6070 | HOSE Price: $35.77 |
| 15 | MA-08340062100 | SEAL CAP 14 Not Available Price: |
| 16 | 94-4920-03 | PLATE-MOUNTING, VALVE This part replaces 94-4920. Price: $29.80 |
| 16 | MA-19081017001 | GUAGE OIL Not Available Price: |
| 17 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 17 | MA-F5000-16000 | PLUG Not Available Price: |
| 18 | 32128-20 | NUT-HF Price: $0.99 |
| 18 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 19 | MA-11911211000 | CAP Not Available Price: |
| 20 | MA-19631331AG0 | PIPE GUAGE Not Available Price: |
| 21 | MA-F1550110020 | BOLT,W/SPRING WASH Not Available Price: |
| 22 | MA-08301100120 | O-RING Not Available This part replaces MA-08300100120. Price: |
| 24 | MA-19631332000 | PIPE Not Available Price: |
| 25 | MA-35232746000 | SPRING Not Available Price: |
| 26 | MA-A6010A01700 | PLUG Not Available Price: |
| 502167201 | 502167201 | GASKET Price: $5.42 |
| 502167301 | 502167301 | INSULATOR ASSY Price: $22.99 |
| 502167401 | 502167401 | PLATE Price: $8.90 |
| 502167501 | 502167501 | GASKET Price: $6.99 |
| 502167601 | 502167601 | INLET TUBE NLA Price: $9.15 |
| 502167701 | 502167701 | GASKET Price: $2.69 |
| 502168401 | 502168401 | FILTER HOLDER Price: $19.15 |
| 502168501 | 502168501 | CHOKE CONTROL Price: $19.39 |
| 502168601 | 502168601 | FILTER COVER Price: $3.99 |
| 502168701 | 502168701 | FILTER ELEMENT Price: $5.99 |
| 502169001 | 502169001 | SCREW AND WASHER NLA Price: $3.75 |
| 502180001 | 502180001 | O-RING Price: $0.94 |
| 502180101 | 502180101 | RETAINING RING Price: $1.26 |
| 502180201 | 502180201 | WASHER NLA Price: $3.38 |
| 503218317 | 502185101 | SCREW NLA This part replaces 503218317. Price: $3.94 |
| 503218319 | 502169901 | SCREW 5 X 23 This part replaces 503218319. Price: $1.37 |
| 731231005 | 731231005 | NUT Price: $2.99 |
