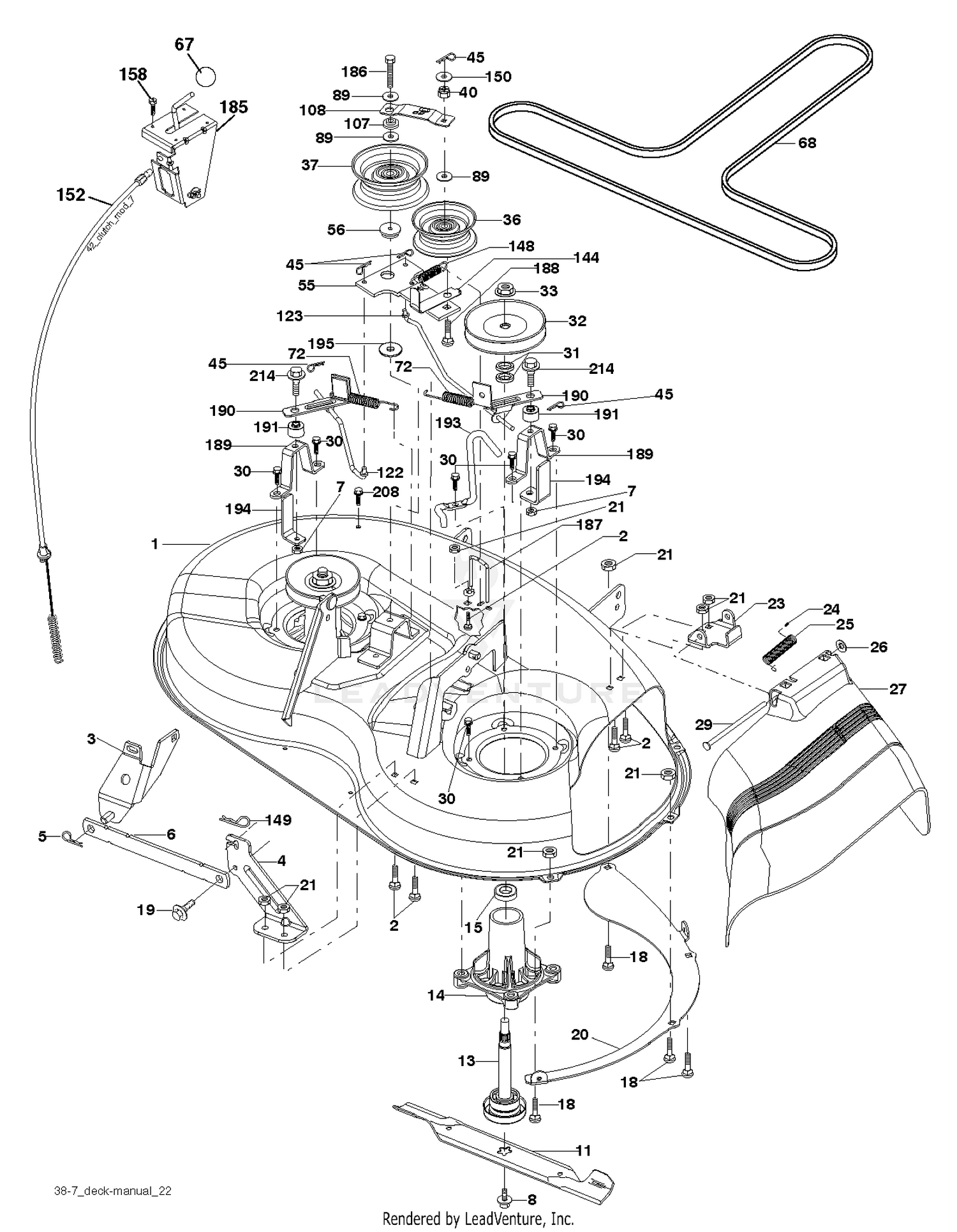

| Ref | Part Number | Description |
|---|
| 1 |
532192556 |
DECK.WELDMENT.38"2005 Price: $229.99 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
532138017 |
BRKT ASM SWAY BAR Price: $7.99 |
| 4 |
532192568 |
BRACKET DECK SWAY BAR 38"/42"" Price: $7.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
532178024 |
BAR SWAY DECK Price: $5.99 |
| 7 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 18 |
872140505 |
BOLT Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
532400095 |
BAFFLE.VORTEX.FRONT.38" Price: $12.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532192572 |
SHIELD.DEFLECTOR.MOWER.38" This part replaces 532193968. Price: $49.99 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YEL DICHROMA This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 37 |
532193198 |
PULLEY.IDLER.FLAT.UNPLATED Price: $22.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 55 |
532133840 |
IDLER ARM Price: $4.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532193214 |
V-BELT.MOWER.38"2005+ Price: $32.99 |
| 72 |
532193216 |
SPRING.BRAKE.RETURN.38" Price: $3.99 |
| 89 |
819131311 |
Washer 13/32 x 13/16 x 11 Ga. (AYP part number) Price: $3.99 |
| 107 |
532133502 |
SPACER.IDLER.ARM Price: $2.99 |
| 108 |
532133503 |
STIFFENER.IDLER.ARM Price: $3.99 |
| 122 |
532410189 |
LINK.BRAKE.38"LEFT.2007 Price: $11.99 |
| 123 |
532410190 |
LINK.BRAKE.38"RIGHT Price: $11.99 |
| 144 |
532193414 |
KEEPER BELT Price: $3.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $2.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 152 |
532193235 |
CABLE.CLUTCH.38".SERVICE Price: $29.99 |
| 158 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
| 186 |
817490644 |
SCREW.HXWSH.3/8 Price: $4.99 |
| 187 |
532193412 |
KEEPER BELT Price: $3.99 |
| 188 |
532171977 |
BOLT, CARRIAGE IDLER BLACK This part replaces 532165891. Price: $3.99 |
| 189 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532192559. Price: $14.99 |
| 190 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532192560. Price: $14.99 |
| 191 |
532192561 |
BRAKE.SPACER.38".DECK Price: $2.99 |
| 193 |
532193413 |
KEEPER BELT RH MANDREL Price: $7.99 |
| 194 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532194105. Price: $14.99 |
| 195 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 214 |
532193782 |
BOLT/WASHER ASM 5/16-18 Price: $4.99 |
