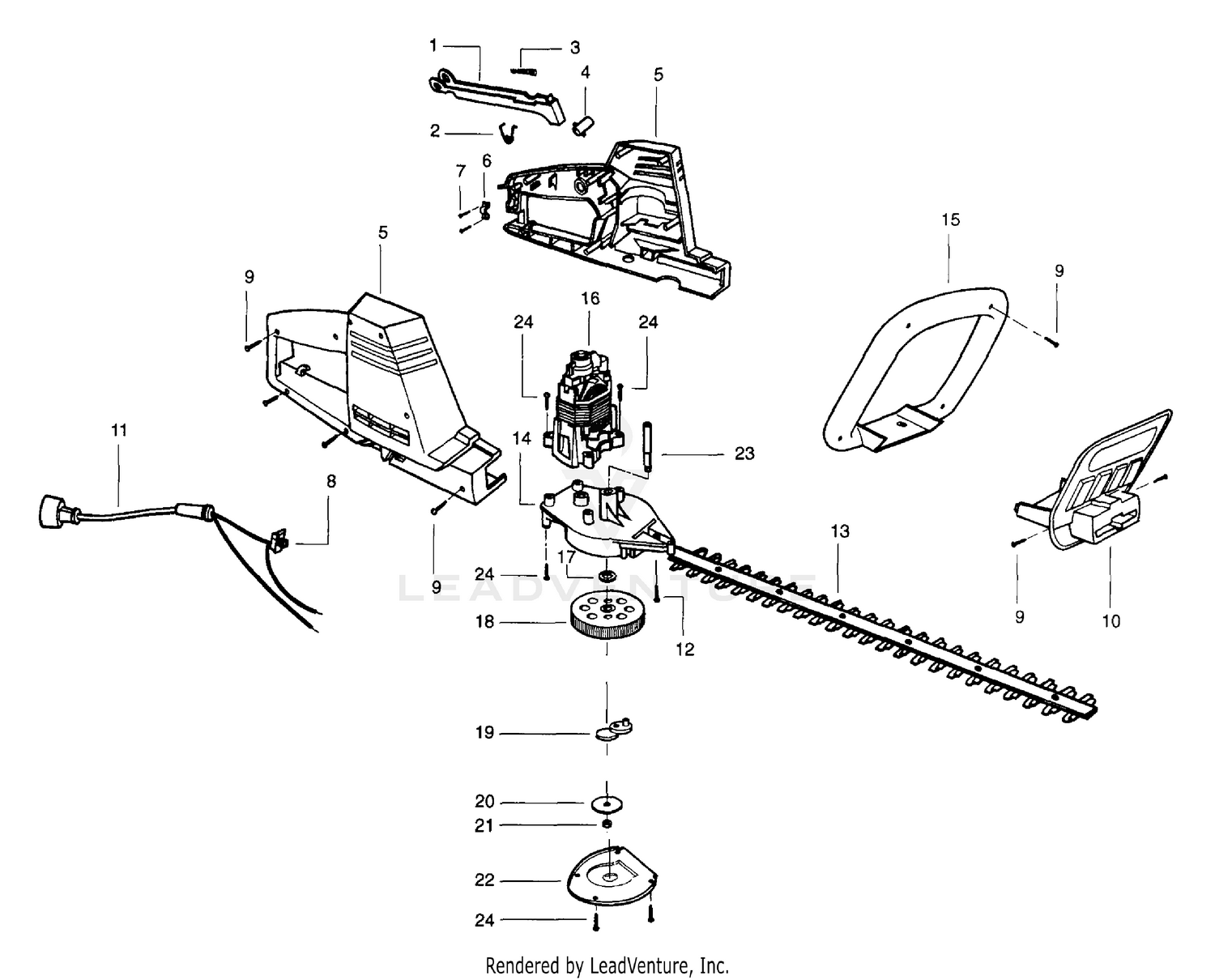

Electric Hedgetrimmer Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530403285 | Trigger Switch Price: $1.99 |
| 2 | 530403299 | Spring Clip Price: $1.99 |
| 3 | 530403300 | Spring - Trigger Lock Price: $1.99 |
| 4 | 530403286 | Button - Trigger Lock Price: $1.99 |
| 5 | 530403279 | Housing Set (R & L) Price: $17.99 |
| 6 | 530403287 | Cordset Clamp Price: $1.99 |
| 7 | 534826801 | Screw Price: $1.99 |
| 8 | 530401503 | Switch (On/Off) Price: $1.99 |
| 9 | 530340179 | Screw Price: $0.99 |
| 10 | 530403282 | Shield Price: $5.99 |
| 11 | 530403293 | Cordset Price: $6.99 |
| 12 | 530016086 | Screw Price: $1.99 |
| 13 | 530403230 | Blade Ass'y. 18" Price: $34.99 |
| 13 | 530403231 | Blade Ass'y. 22" Price: $44.99 |
| 14 | 530403278 | Gear Box Ass'y. Price: $22.99 |
| 15 | 530053578 | Handle Ass'y. Price: $8.16 |
| 16 | 530403277 | Motor Ass'y. Price: $54.99 |
| 17 | 530401228 | Washer - Thrust Price: $1.99 |
| 18 | 530400859 | Gear Price: $14.99 |
| 19 | 530400980 | Drive Cam Price: $5.99 |
| 20 | 530400876 | Washer - Cam Price: $1.99 |
| 21 | 530401229 | Locknut Price: $1.99 |
| 22 | 530403295 | Plate Cover Price: $1.99 |
| 23 | 530403296 | Shaft Price: $2.99 |
| 24 | 530015875 | Screw Price: $1.99 |
| 71 | 270158 | Screw Price: Call Us |
| 72 | 270889 | Washer Price: Call Us |
| 73 | 4801501 | Head, Cylinder Price: Call Us |
