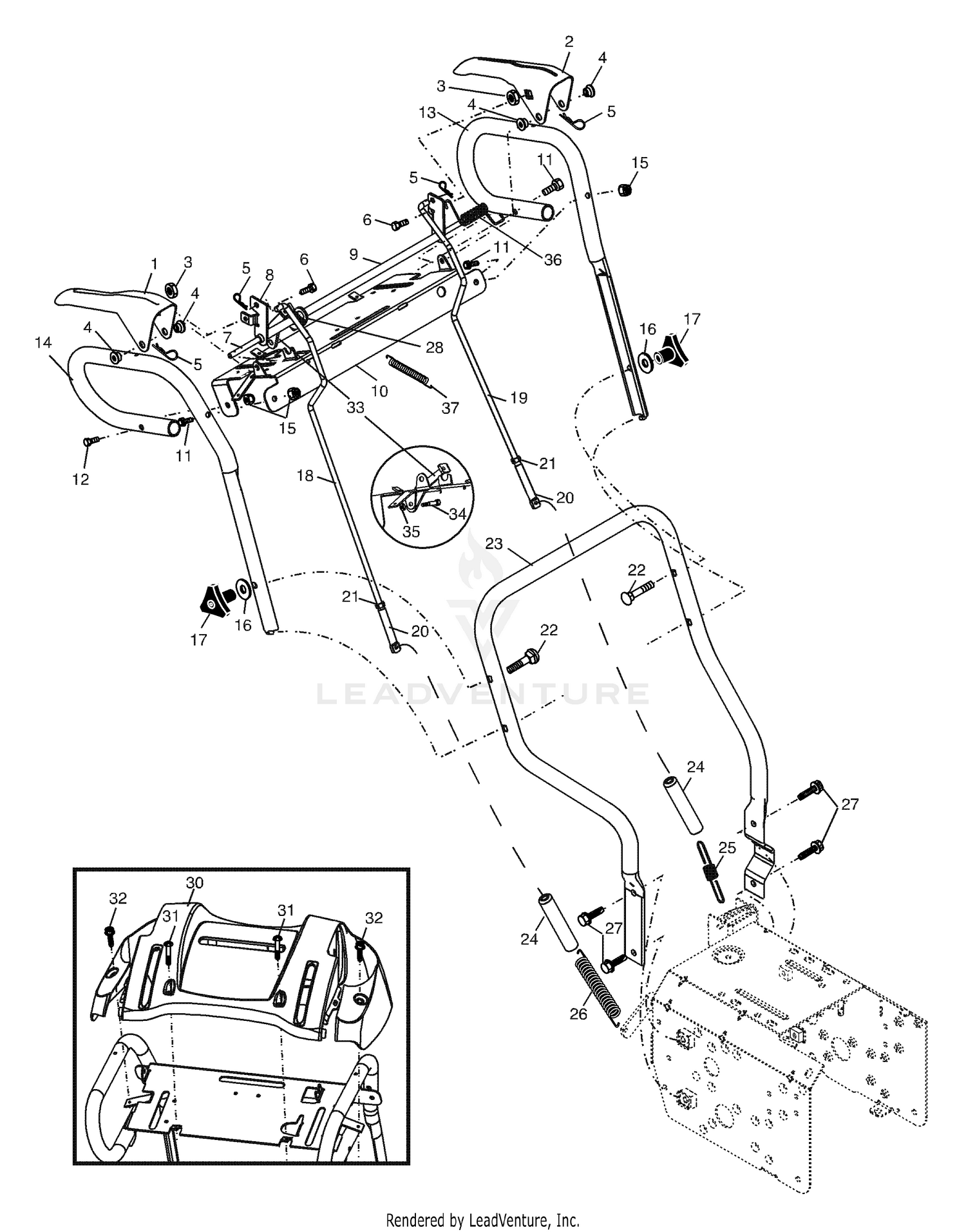

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532184110. Price: $22.99 |
| 1 |
67-4160 |
GASKET This part replaces 67-4310. Price: $4.78 |
| 2 |
532184109 |
LEVER, TRACTION DRIVE CONTROL Price: $9.99 |
| 2 |
67-4250 |
COVER Price: $37.89 |
| 3 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 3 |
532179439 |
NUT, CAGE 1/4-20 Price: $2.99 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 4 |
72-6870 |
COVER GASKET Price: $3.55 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 5 |
72-6860 |
COVER Price: $11.76 |
| 6 |
532199640 |
SCREW HEX This part replaces 532180402. Price: $3.99 |
| 6 |
72-7070 |
BOLT W/WASHER Price: $1.11 |
| 7 |
42-8690 |
SEAL METAL MK99200001 Price: $3.26 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 8 |
42-8700 |
WIRE Price: $6.33 |
| 8 |
532184003 |
TUBE ASSM, INTERLOCK Price: $13.99 |
| 9 |
42-9420 |
DISCONTINUED Price: Call Us |
| 9 |
532178651 |
TUBE.WELDMENT.INTERLOCK.LH Price: $20.99 |
| 10 |
532178645 |
PANEL, CONTROL This part replaces 532184106. Price: $22.99 |
| 10 |
67-4290 |
NUT Price: $0.91 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 11 |
72-6660 |
O RING Price: $1.95 |
| 12 |
72-6670 |
DISCONTINUED Price: Call Us |
| 12 |
874780528 |
SCREW Price: $4.99 |
| 13 |
532436114 |
TUBE.HANDLE.LOOP.LH.BLACK This part replaces 532184107. Price: $54.99 |
| 13 |
67-4120 |
PIN Price: $1.25 |
| 14 |
532407857 |
TUBE.HANDLE.LOOP.RH.BLACK This part replaces 532184108. Price: $39.99 |
| 14 |
72-6710 |
DUST SEAL Price: $2.47 |
| 15 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 15 |
72-6700 |
THROTTLE LEVER Price: $28.85 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
67-3260 |
WASHER Price: $1.58 |
| 17 |
42-9640 |
JAM NUT Price: $4.69 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
532184594 |
ROD.AUGER.CONTROL Price: $54.99 |
| 18 |
67-3990 |
LEVER ASSEMBLY Price: $41.40 |
| 19 |
532179098 |
ROD.TRACTION.CONTROL Price: $12.99 |
| 19 |
67-4000 |
DISCONTINUED Price: Call Us |
| 20 |
532180428 |
ROD, END CONTROL Price: $8.99 |
| 20 |
67-4270 |
BOLT Price: $0.89 |
| 21 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 21 |
67-4230 |
STOPPER Price: $25.34 |
| 22 |
67-4160 |
GASKET Price: $4.78 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
42-8830 |
O-RING Price: $2.96 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 24 |
72-6630 |
GOVERNOR SPRING LEVER Price: $8.38 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 25 |
67-3260 |
WASHER Price: $1.58 |
| 26 |
42-9640 |
JAM NUT Price: $4.69 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
72-6690 |
INNER LEVER ASM Price: $122.83 |
| 27 |
871210616 |
Screw, Hex Head 3/8-16 x 1 Price: $4.99 |
| 28 |
42-9430 |
SCREW-HH Price: $0.30 |
| 28 |
532180494 |
PANEL CLIP Price: $2.64 |
| 29 |
72-6720 |
DISCONTINUED Price: Call Us |
| 30 |
532183352 |
CONSOLE, HANDLE Price: $24.99 |
| 30 |
72-6730 |
SLIDING SHAFT ASM Price: $119.92 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 31 |
72-6640 |
DISCONTINUED Price: Call Us |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 32 |
67-4050 |
SHAFT Price: $30.29 |
| 33 |
532184111 |
ARM.LATCH.INTERLOCK.YELLOW Price: $3.99 |
| 33 |
72-7050 |
GOVERNOR SPRING Price: $4.65 |
| 34 |
532183518 |
BOLT, SHOULDER Price: $2.99 |
| 34 |
72-7040 |
BUSHING Price: $79.91 |
| 35 |
72-6620 |
PLUG Price: $9.25 |
| 35 |
873850400 |
This part replaces 532068038. Price: $2.51 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
