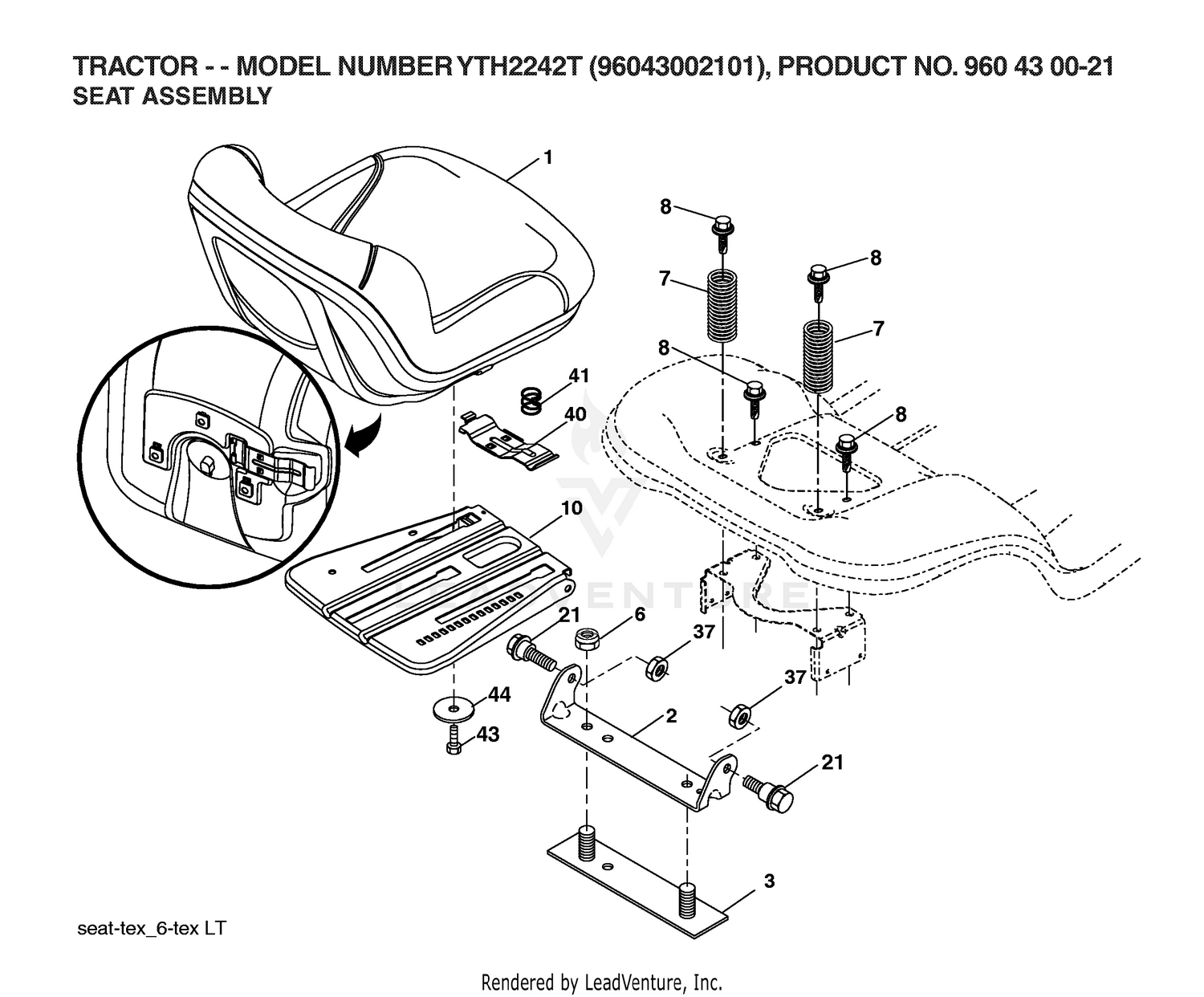

| Ref | Part Number | Description |
|---|
| 1 |
532439819 |
SEAT.TH130.GREY.HUSQ.TEX This part replaces 532197518. Price: $209.99 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
108-1438 |
WASHER-HARDENED Price: $1.76 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 4 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 5 |
112-4874 |
SCREW-HH, TAP Price: $8.70 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
120-5905-03 |
ARM-TRAILING Price: $265.67 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
117-8465-03 |
LINK-LIFT Price: $29.79 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
119-6301-03 |
ARM-GAUGE, WHEEL Price: $153.51 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
117-8484 |
TAB-LOCKING Price: $36.51 |
| 10 |
117-8544 |
WHEEL-CASTER Price: $120.71 |
| 11 |
119-2985 |
BUSHING Price: $7.60 |
| 12 |
119-6184 |
BLOCK-PIVOT Price: $36.42 |
| 14 |
119-6191 |
TUBE-PIVOT Price: $4.68 |
| 15 |
119-6192 |
TUBE-PIVOT Price: $6.50 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
323-6 |
SCREW-HH Price: $0.66 |
| 18 |
3234-40 |
SCREW-HF Price: $3.38 |
| 19 |
325-14 |
SCREW-HH Price: $2.64 |
| 20 |
3217-11 |
NUT-HEX Price: $0.95 |
| 21 |
119-6253 |
SPACER-LIMITER Price: $9.65 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
69-8930 |
WASHER Price: $0.81 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
