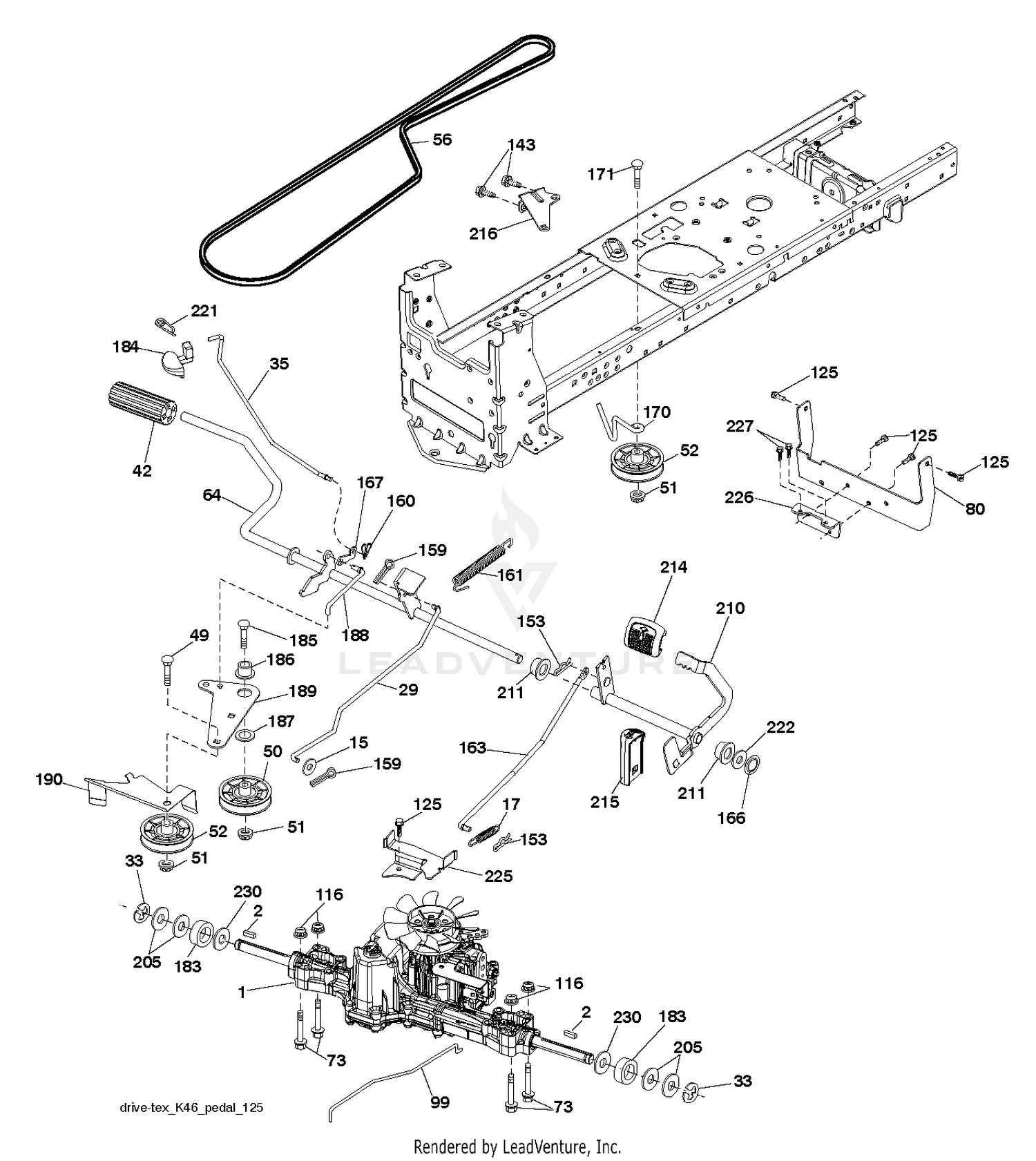

| Ref | Part Number | Description |
|---|
| 2 |
3244-21 |
SCREW-SQH Price: $10.59 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 4 |
107-1050 |
CLUTCH-CENTRIFUGAL Price: $5,481.65 |
| 5 |
13-3320 |
SHEAVE Price: $893.43 |
| 6 |
13-2800 |
SHEAVE Price: $961.42 |
| 7 |
13-2970 |
BUSHING Price: $182.26 |
| 8 |
13-3330 |
BUSHING Price: $47.20 |
| 9 |
3-9155 |
KEY-SQUARE Price: $11.44 |
| 10 |
321-6 |
SCREW-HH Price: $0.25 |
| 12 |
117-8510-03 |
GUARD-BELT Price: $341.40 |
| 13 |
321-4 |
SCREW-HH Price: $0.99 |
| 14 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
4-1920 |
WASHER Price: $26.67 |
| 17 |
323-10 |
SCREW-HH Price: $0.89 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
3218-5 |
NUT-JAM Price: $0.27 |
| 19 |
119-6137-03 |
PLATE-ADAPTER Price: $45.14 |
| 20 |
323-9 |
SCREW-HH Price: $1.29 |
| 21 |
13-2650 |
BELT-V Price: $177.37 |
| 22 |
93-0183 |
BELT-V, IMPELLER Price: $173.29 |
| 23 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 24 |
121-2850-03 |
SHIELD-MUFFLER Price: $217.97 |
| 25 |
121-2851-03 |
SHIELD-HEAT, FRONT BOTTOM Price: $61.95 |
| 27 |
120-5956 |
MUFFLER ASM Price: $180.87 |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 29 |
323-6 |
SCREW-HH Price: $0.66 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 32 |
324-31 |
SCREW-HH Price: $6.65 |
| 33 |
3255-16 |
WASHER-LOCK/EXT Price: $0.61 |
| 34 |
37-4700 |
SPACER-WHEEL Price: $34.54 |
| 35 |
324-13 |
SCREW-HH Price: $1.22 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 36 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 37 |
104-7201 |
NUT-HF Price: $0.69 |
| 38 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 39 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 40 |
105-7864 |
KEY-SQUARE Price: $19.67 |
| 41 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 43 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 44 |
121-2848-03 |
SHIELD-HEAT, BACK BOTTOM Price: $62.20 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532440619. Price: $19.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 This part replaces 532441407. Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
