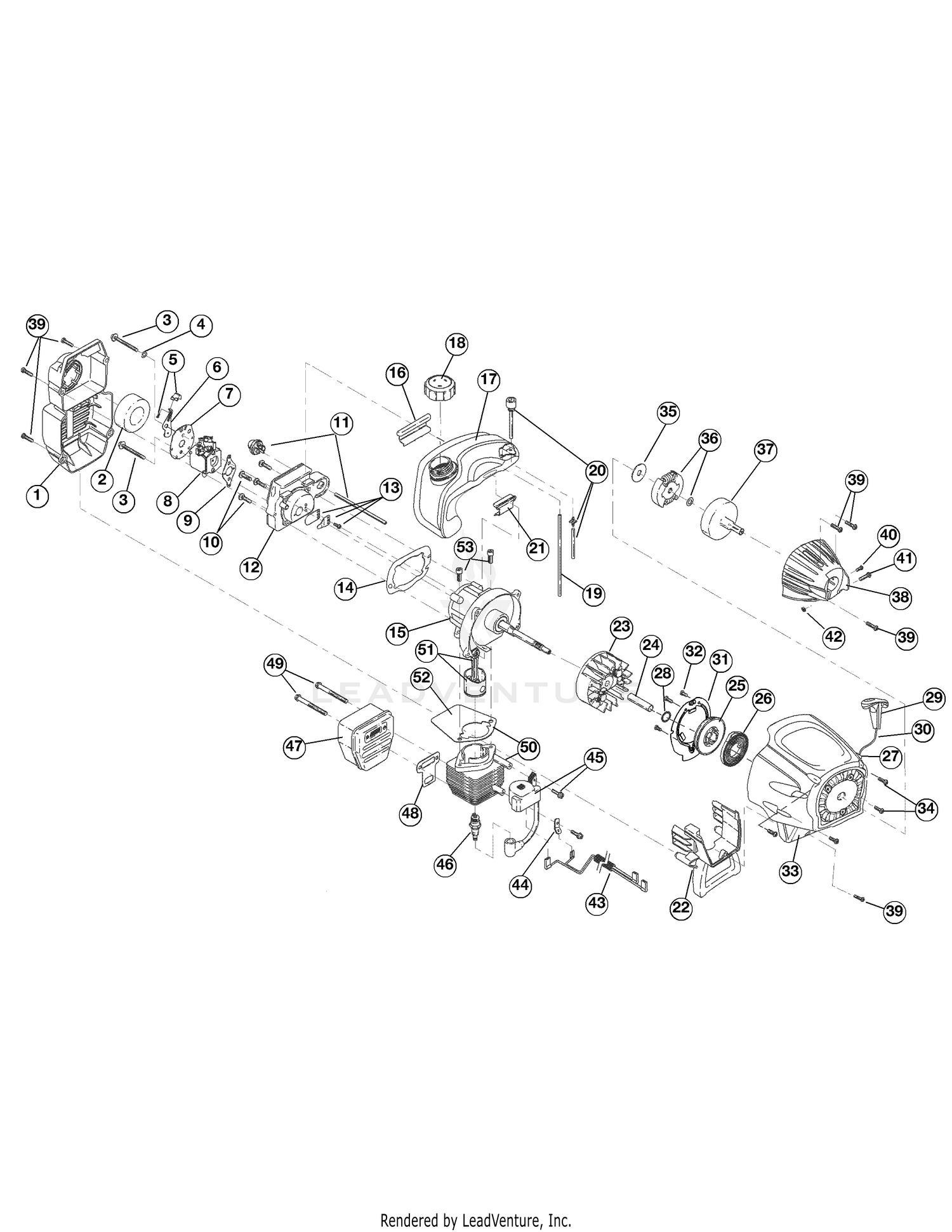

| Ref | Part Number | Description |
|---|
| 1 |
753-04511 |
Air Cleaner Cover Assembly (includes 2 & 37) Price: $35.99 |
| 2 |
791-180350B |
Air Cleaner Filter Price: $9.24 |
| 3 |
791-180351 |
ASSEMBLY, CARBURETOR MO Not Available Price: |
| 4 |
936-0271 |
SPRING WASHER .317 X .625 X .020 This part replaces 791-180226. Price: $3.93 |
| 5 |
791-182202 |
ASSEMBLY, CHOKE KNOB & Not Available Price: |
| 6 |
753-04418 |
CHOKE LEVER ASSEMBLY:W/ Not Available Price: |
| 7 |
753-04419 |
PLATE ASSEMBLY:CHOKE:WV Not Available Price: |
| 8 |
753-05133 |
DUAL CARBURETOR ASSEMBLY Not Available Price: |
| 9 |
791P610675 |
CARBURETOR GASKET This part replaces 791-610675. Price: $3.83 |
| 10 |
791-181860 |
SCREW, 10-24X.75 T-2 Not Available Price: |
| 11 |
791-683974B |
Primer & Hose Assembly Price: $19.93 |
| 12 |
753-1196 |
CARBURETOR MOUNT ASSEMBLY Not Available Price: |
| 13 |
791-684451 |
REED VALVE ASSEMBLY Not Available Price: |
| 14 |
753-1208 |
Carburetor Mount Gasket Price: $15.73 |
| 15 |
753-04401 |
CRANKCASE ASSEMBLY-SERVICE Not Available Price: |
| 16 |
791-612134 |
PAD, REAR MOUNT PAD Not Available Price: |
| 17 |
753-04307 |
TANK ASSEMBLY:BK CAP W/ Not Available Price: |
| 18 |
753-04084 |
Fuel Cap Assembly Not Available Price: |
| 19 |
791-181086 |
Fuel Return Line Price: $6.20 |
| 20 |
753-04233 |
Fuel Line Assembly Not Available Price: |
| 21 |
791-145308 |
PAD, FRONT MOUNTING Not Available Price: |
| 22 |
753-04702 |
EXT-SHROUD W/HOLE Not Available Price: |
| 23 |
753-05240 |
Flywheel Assembly This part replaces 791-182736. Price: $67.61 |
| 24 |
791-181525 |
Spacer Price: $19.61 |
| 25 |
753-04823 |
START ASSEMBLY:S/A:PUL Not Available This part replaces 753-04459. Price: |
| 26 |
753-04286 |
Recoil Spring Price: $24.35 |
| 27 |
753-1200 |
GDE:ROPE:START Not Available Price: |
| 28 |
753-04288 |
Pulley Retainer Price: $9.62 |
| 29 |
631-04164B |
Pull Handle This part replaces 791-181079. Price: $3.38 |
| 30 |
791-613103 |
Rope Price: $8.97 |
| 31 |
753-04417 |
PLATE:PRESSURE Not Available Price: |
| 32 |
1755 |
Screw This part replaces 753-1202. Price: $3.37 |
| 33 |
753-04402 |
Starter Housing Assembly (includes 25-32, 34 & 39) Price: $61.84 |
| 34 |
1964 |
SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 35 |
9162-1 |
Washer This part replaces 791-182368. Price: $3.91 |
| 36 |
753-05860 |
Clutch Assembly This part replaces 791-182369. Price: $22.50 |
| 37 |
791-153592 |
Clutch Drum Assembly Price: $45.60 |
| 38 |
753-04403 |
CLUTCH HOUSING Not Available Price: |
| 39 |
791-181345 |
Cover Screw Price: $3.75 |
| 40 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 41 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 42 |
712-0161 |
Nut-Hex Ins L-#10- This part replaces 791-180217. Price: $4.02 |
| 43 |
753-05025 |
WIRE:LEAD:RED/BK Not Available Price: |
| 44 |
791-611063 |
TAB, GROUND Not Available Price: |
| 45 |
753-04336 |
PULSE MDL ASSEMBLY:W/HD Not Available Price: |
| 46 |
791-610311B |
Spark Plug Price: $13.23 |
| 47 |
753-05169 |
MUFFLER ASM CAT NLAUD Not Available Price: |
| 48 |
753-04619 |
Exhaust Gasket Price: $8.45 |
| 49 |
710-04188A |
Muffler Screws This part replaces 753-04620. Price: $3.63 |
| 50 |
753-04814 |
Cylinder Assembly (includes 40 & 41) Not Available This part replaces 753-04323. Price: |
| 51 |
753-04367 |
PISTON ASSEMBLY:W/ROD/RIN Not Available Price: |
| 52 |
753-04182 |
Cylinder Gasket Price: $14.79 |
| 53 |
791-182723 |
Cylinder Bolt Price: $4.02 |
