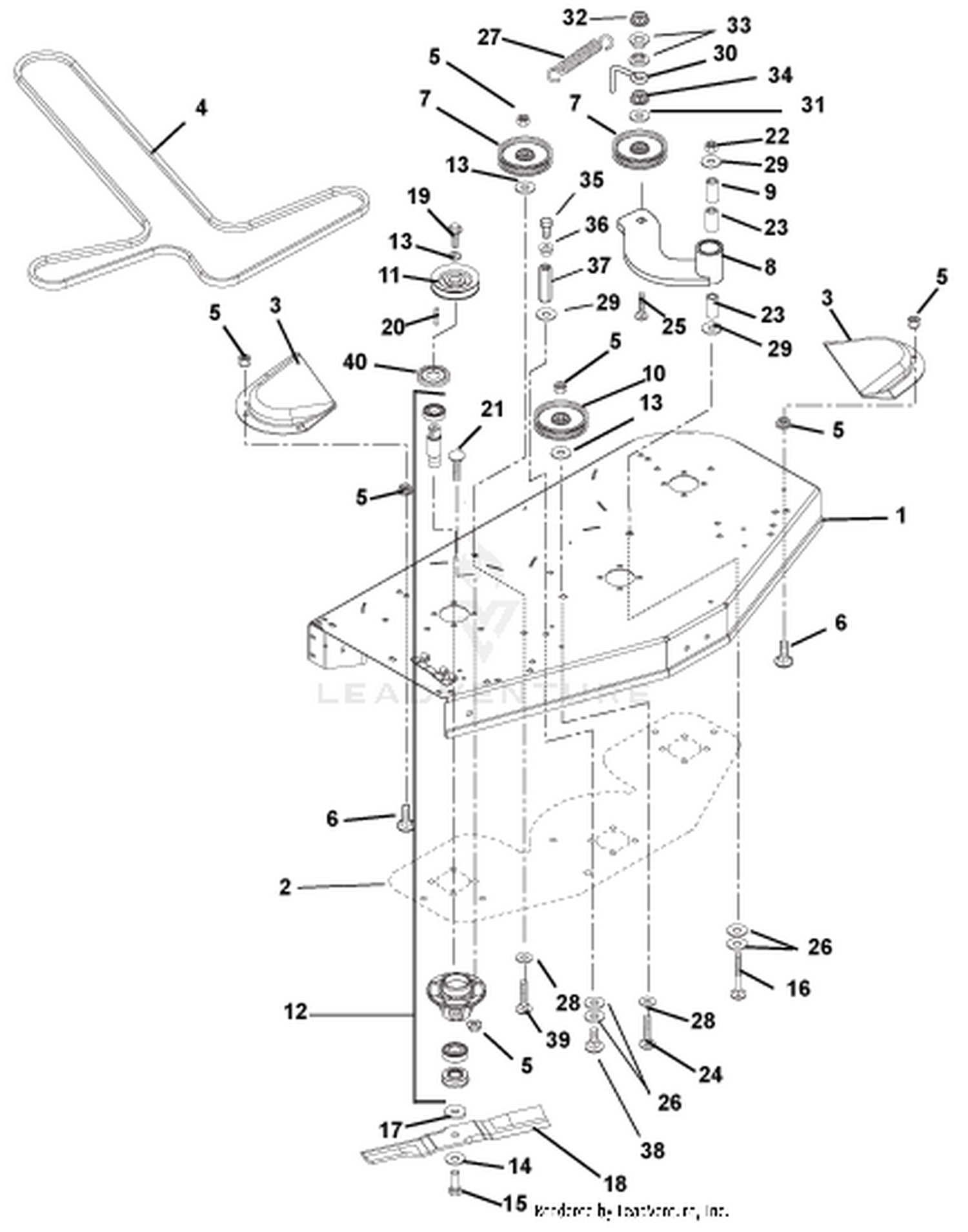

| Ref | Part Number | Description |
|---|
| 3 |
01520100 |
COVER Price: $53.45 |
| 5 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 6 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 7 |
07350100 |
IDLER, FLAT - 4.06" X .75" This part replaces 07300006. Price: $43.95 |
| 8 |
00429900 |
WMT, IDLER ARM Price: $74.45 |
| 9 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 10 |
07327100 |
PULLEY, IDLER 4.00 Price: $33.95 |
| 12 |
51510000 |
ASSEMBLY, SPINDLE Price: $204.95 |
| 13 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 06400006. Price: $3.95 |
| 14 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 15 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 16 |
06200317 |
BLT, RHSN .50-13X3.50 G5 ZCC This part replaces 06225000. Price: $5.45 |
| 17 |
06400829 |
WSHR-FLT .640X1.75X.250 This part replaces 06435200. Price: $3.95 |
| 19 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05974500. Price: $1.95 |
| 20 |
06611100 |
KEY, SQ .25 X .38 X .25 Price: $0.95 |
| 21 |
06200416 |
BLT, RHSN .38-16X1.50 G5 ZCC This part replaces 06224200. Price: $3.95 |
| 22 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 23 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 24 |
06200314 |
BLT, RHSN .38-16X2.00 G5 ZCC This part replaces 06220500. Price: $3.45 |
| 25 |
06200418 |
BLT, RHSN .38-16X3.00 G5 ZCC This part replaces 06228100. Price: $3.95 |
| 26 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06441500. Price: $3.45 |
| 27 |
08300020 |
EXTENSION SPRING Price: $23.45 |
| 28 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 29 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 30 |
00391900 |
BELT FINGER Price: $18.45 |
| 31 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC This part replaces 06444000. Price: $2.45 |
| 32 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 33 |
05515800 |
BSHG-FLG .406X.88X.270X.140 Price: $8.45 |
| 34 |
06543900 |
NUT-SPIRALOCK-FLG .50-13 PLN Price: Call Us |
| 35 |
05901929 |
BLT, HEX .50-13X2.00 G5 ZCC This part replaces 05959700. Price: $2.95 |
| 36 |
06500814 |
NUT,HEX .50-13 G2 ZCC This part replaces 06537300. Price: $3.95 |
| 37 |
06500013 |
NUT, COUPLING 1/2-13X1.75 YWZC Price: $3.45 |
| 38 |
06200325 |
BLT, RHSN .50-13X1.25 G5 ZCC This part replaces 06224700. Price: $5.95 |
| 39 |
06200316 |
BLT, RHSN .38-16X2.75 G5 ZCC This part replaces 06225400. Price: $3.95 |
