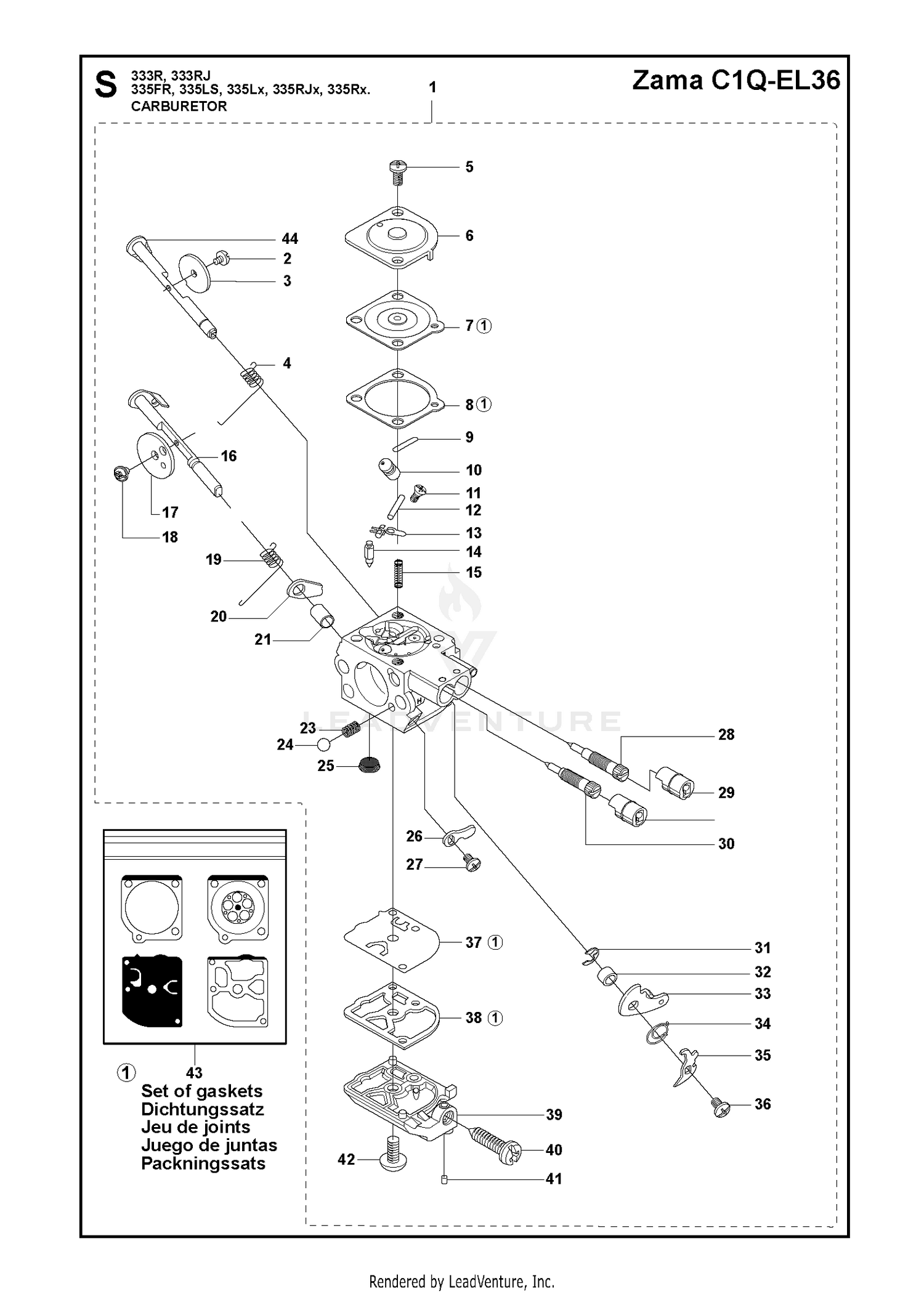

CARBURETOR 4
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| NN10901 | GASKET | KIT This part replaces 82-0760. Price: $54.67 NN10901 |
| 1 | 581167501 | CARBURETTOR This part replaces 544325601. Price: $39.99 |
| 1 | 72-3860 | CHOKE KIT SHAFT Price: $82.10 |
| 2 | 503479201 | SCREW Price: $2.99 |
| 2 | 72-3870 | DISCONTINUED Price: Call Us |
| 3 | 537417201 | THROTTLE Price: $6.99 |
| 3 | 82-0750 | JET-IDLE Price: $67.00 |
| 4 | 544372401 | RETURN SPRING Price: $3.99 |
| 4 | 82-0790 | JET-POWER Price: $13.69 |
| 5 | 503480501 | SCREW Price: $2.99 |
| 5 | 82-0800 | SOLENOID - FUEL CUT OFF Price: $245.99 |
| 6 | 503974301 | COVER Price: $5.99 |
| 6 | 82-0740 | JET-FIXED, HIGH ALTITUDE Price: $7.62 |
| 7 | 537048901 | DIAPHRAGM Price: $11.99 |
| 7 | 82-0780 | REPAIR KIT Price: $1,261.99 |
| 8 | 537020401 | GASKET Price: $3.99 |
| 8 | 82-0850 | GASKET-CARBURETOR Price: $23.99 |
| 9 | 503535601 | PLUG Price: $3.99 |
| 9 | 82-0810 | THROTTLE SHAFT KIT Price: $104.71 |
| 10 | 537387301 | JET Price: $12.99 |
| 11 | 503480101 | SCREW Price: $2.99 |
| 12 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 13 | 503665901 | LEVER Price: $3.99 |
| 14 | 503479701 | INLET NEEDLE Price: $8.99 |
| 15 | 537273401 | SPRING This part replaces 537020301. Price: $4.99 |
| 16 | 544372201 | CHOKE SHAFT Price: $19.99 |
| 17 | 537370301 | CHOKE CAP This part replaces 537021101. Price: $6.99 |
| 18 | 503481801 | SCREW Price: $2.99 |
| 19 | 544372601 | SPRING Price: $2.99 |
| 20 | 544372501 | LEVER Price: $6.99 |
| 21 | 544427001 | SLEEVE Price: $4.99 |
| 23 | 537012601 | SPRING Price: $2.99 |
| 24 | 537012501 | BALL Price: $2.99 |
| 25 | 503481301 | FUEL INLET SCREEN Price: $2.99 |
| 26 | 544372301 | LEVER Price: $6.99 |
| 27 | 503479001 | SCREW Price: $2.99 |
| 28 | 537416901 | IDLE SCREW Price: $7.99 |
| 30 | 537387501 | SCREW Price: $12.99 |
| 31 | 537385201 | CLIP Price: $2.99 |
| 32 | 537417701 | SLEEVE Price: $6.99 |
| 33 | 537417301 | LEVER Price: $6.99 |
| 34 | 537417801 | SPRING Price: $3.99 |
| 35 | 537417401 | LEVER Price: $5.99 |
| 36 | 503479001 | SCREW Price: $2.99 |
| 37 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 38 | 537020101 | GASKET Price: $3.99 |
| 39 | 537416801 | COVER Price: $24.99 |
| 40 | 537020701 | SCREW Price: $6.99 |
| 41 | 503481101 | PLUG Price: $3.99 |
| 42 | 503479601 | SCREW Price: $2.99 |
| 43 | 531004552 | GASKET KIT (ZAMA GND39) Price: $9.99 |
| 44 | 537387401 | THROTTLE SHAFT Price: $22.99 |
