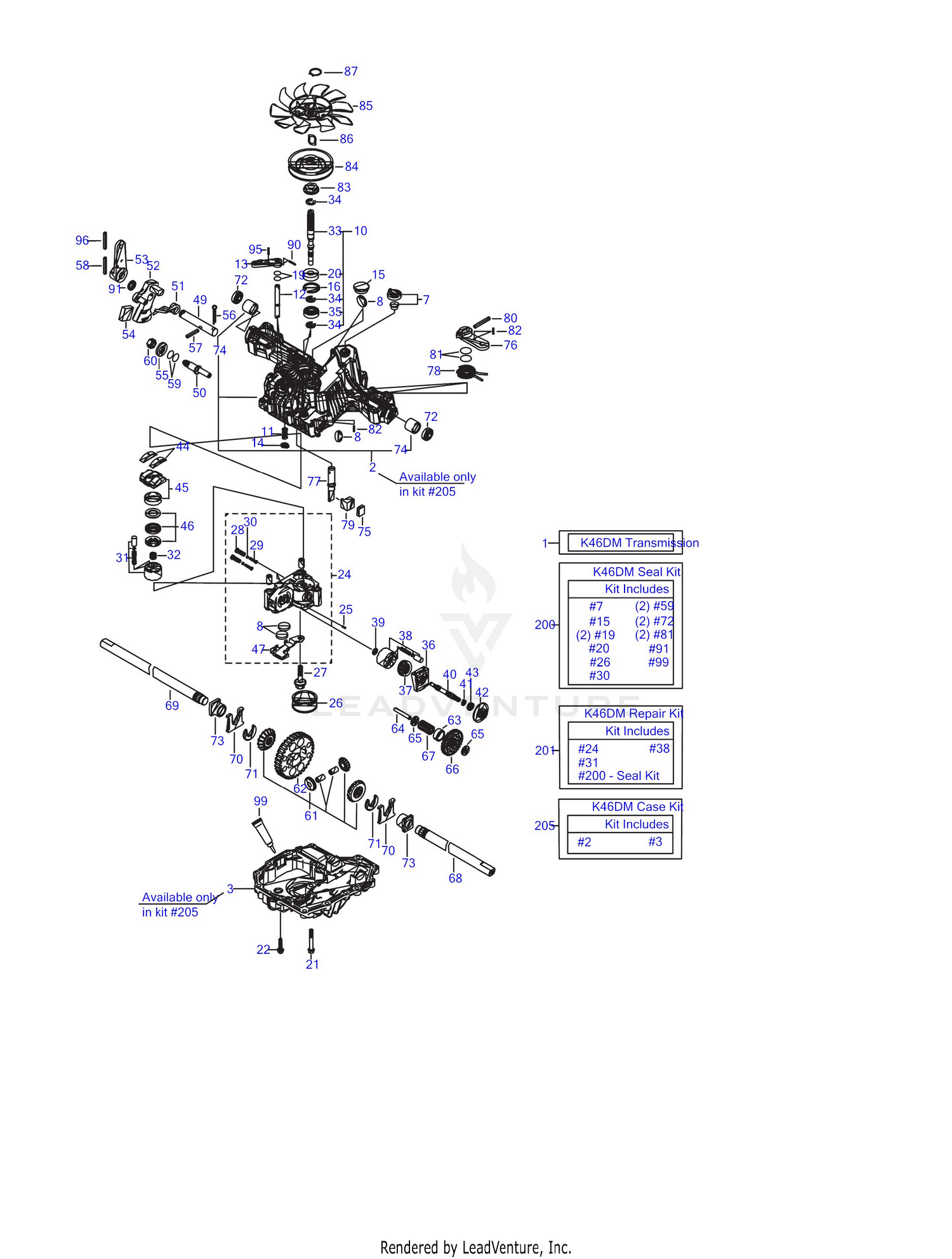

Transmission
Parts (86)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 918-07207A | TRANSMISSION ASSEMBLY This part replaces 918-07207. Price: $1,028.02 |
| 2 | N/A | Kit, Housing |
| 3 | N/A | Lower Case |
| 7 | TT-168T2024250 | Vent Valve Price: $25.34 |
| 8 | TT-19216324360 | Magnet Price: $2.70 |
| 10 | TT-1A646099950 | Pump Shaft/Bearing Kit Price: $47.06 |
| 11 | TT-19215427281 | Spring 25 Price: $2.29 |
| 12 | TT-1A646029510 | Bypass Shaft A Price: $23.67 |
| 13 | TT-1A632029520 | Bypass Lever Price: $6.06 |
| 14 | TT-22242000100 | SNAP RING Price: $0.35 |
| 15 | TT-187T0136300 | Sealing Cap 30 Price: $6.24 |
| 16 | TT-22252000350 | Snap Ring C 35 Price: $2.29 |
| 19 | TT-24311240100 | O-Ring 1A P10A Price: $2.29 |
| 20 | TT-187T0134380 | Seal TC 153507 Price: $3.70 |
| 21 | TT-26476080552 | Tapping Screw 8 x 55 Price: $1.56 |
| 22 | TT-26476080302 | Tapping Screw 8 x 30 Price: $2.92 |
| 24 | TT-1A646098400 | REPAIR KIT (K46DM AAY W/OIL) This part replaces TT-187T0199070. Price: $561.22 |
| 25 | TT-19216824760 | Pin 3 x 9.8 Price: $2.29 |
| 26 | TT-187Q1625221 | FILTER 105 This part replaces TT-168T2025220. Price: $13.79 |
| 27 | TT-168T2099990 | Bolt 10 x 75 Price: $2.16 |
| 28 | TT-1A646024800 | IDS Valve 1.2 Price: $9.16 |
| 29 | TT-1A646024761 | SPRING-IDS Not Available Price: |
| 30 | TT-1A646024790 | FILTER-IDS 300 Not Available Price: |
| 31 | TT-168T2025090 | Kit, Cylinder Block (Pump) Price: $108.31 |
| 32 | TT-1A646025200 | Spring Price: $1.58 |
| 33 | TT-1A646025251 | Pump Shaft Price: $39.95 |
| 34 | TT-22272000120 | E-RING Price: $2.29 |
| 35 | TT-1A646034790 | BALL BEARING This part replaces TT-1A646034770. Price: $8.26 |
| 36 | TT-19216824210 | Motor Housing Price: $11.63 |
| 37 | TT-1A646034750 | Thrust Bearing 51106 Price: $29.92 |
| 38 | TT-168T2025080 | Kit, Cylinder Block Price: $149.14 |
| 39 | TT-19216825230 | Washer 12 x 24 x 1 Price: $2.29 |
| 40 | TT-1A646025271 | Motor Shaft Price: $24.30 |
| 41 | TT-19215425310 | Snap Ring S15 Price: $0.54 |
| 42 | TT-1A646025400 | Brake Disc/Motor Gear Price: $12.44 |
| 43 | TT-1A646034780 | BALL BEARING This part replaces TT-1A646034760. Price: $8.61 |
| 44 | TT-187T0027060 | Thrust, Plastic Price: $2.29 |
| 45 | TT-168T2084570 | Swash Plate Clamp Price: $27.30 |
| 46 | TT-19216399000 | Kit, Thrust Bearing (Pump) Price: $42.14 |
| 47 | TT-1A646029010 | Magnet Holder Price: $3.43 |
| 49 | TT-1A646029911 | Control Shaft Price: $14.96 |
| 50 | TT-168T2029920 | Fulcrum Price: $21.91 |
| 51 | TT-168T2029800 | Torsion Spring, Standard Price: $11.70 |
| 52 | TT-1A646029740 | Control Lever Price: $38.90 |
| 53 | TT-1A646029400 | Control Lever F Price: $10.72 |
| 54 | TT-168T2029360 | Jerky Plate Price: $3.93 |
| 55 | TT-22137120000 | Washer 12 Price: $1.96 |
| 56 | TT-1A646029940 | Cotter Pin 1/8" x 3/4" Price: $1.47 |
| 57 | TT-22351060036 | Spring Pin 6 x 36 Price: $0.78 |
| 58 | TT-22351060040 | Roll Pin 6 x 40 Price: $2.29 |
| 59 | TT-24311000140 | O-Ring P14 Price: $1.97 |
| 60 | TT-26776120002 | Nut 12 Price: $1.97 |
| 61 | TT-1A646031570 | Diff Gear Kit Price: $47.91 |
| 62 | TT-1A646033520 | Final Gear (54T) This part replaces TT-1A646033540. Price: $66.06 |
| 63 | TT-1A646033250 | Final Pinion Collar Price: $2.95 |
| 64 | TT-1A646033410 | Reduction Shaft Price: $9.74 |
| 65 | TT-19216833420 | Washer 12 x 32 x 3.2 Price: $1.69 |
| 66 | TT-1A646033450 | Reduction Gear (37T) Price: $16.37 |
| 67 | TT-168T2033540 | Final Pinion Gear (10T) Price: $15.60 |
| 68 | TT-1A646034270 | LEFT SIDE AXLE Price: $41.13 |
| 69 | TT-1A646034280 | RIGHT SIDE AXLE Price: $51.92 |
| 70 | TT-19216334261 | Thrust Washer Price: $7.90 |
| 71 | TT-19216834270 | Ring 17 Price: $2.29 |
| 72 | TT-187T0134280 | Seal 19 x 32 x 8 Price: $9.74 |
| 73 | TT-19216834350 | Bushing 19 x 25 Price: $2.29 |
| 74 | TT-1A646034500 | AXLE BUSHING This part replaces TT-168T2034240. Price: $3.05 |
| 75 | TT-1A646036121 | Brake Shoe Price: $2.29 |
| 76 | TT-1A646036160 | Brake Lever Price: $6.30 |
| 77 | TT-1A646036171 | Brake Shaft Price: $32.49 |
| 78 | TT-168T2036180 | Brake Return Spring Price: $3.95 |
| 79 | TT-1A646036200 | Brake Actuator Price: $2.15 |
| 80 | TT-22351050032 | Spring Pin 5 x 32 Price: $2.29 |
| 81 | TT-24311000120 | O-Ring 1A P12 Price: $2.29 |
| 82 | TT-22351040016 | Spring Pin 4 x 16 Price: $1.97 |
| 83 | TT-1A646025300 | Spline Collar Price: $2.52 |
| 84 | TT-1A646025760 | Pulley B Price: $20.39 |
| 85 | TT-1A646083070 | Fan, Black Price: $19.81 |
| 86 | TT-1A646083060 | Wave Washer Price: $2.29 |
| 87 | TT-19215489090 | Snap Ring Price: $2.29 |
| 90 | TT-22351030020 | Spring Pin 3.0A x 20 Price: $2.29 |
| 91 | TT-1A646024440 | Oil Seal 16 x 22 x .03 Price: $3.37 |
| 95 | TT-22351030016 | Spring Pin 3.0A x 16 Price: $2.29 |
| 96 | TT-22351035040 | Roll Pin 3.5 x 40 Price: $2.29 |
| 99 | TT-1A646099500 | SEALANT Price: $23.68 |
| 200 | TT-1A646098240 | SEAL KIT This part replaces TT-1A646099141. Price: $91.12 |
| 201 | TT-1A646098400 | REPAIR KIT (K46DM AAY W/OIL) This part replaces TT-1A646099461. Price: $561.22 |
