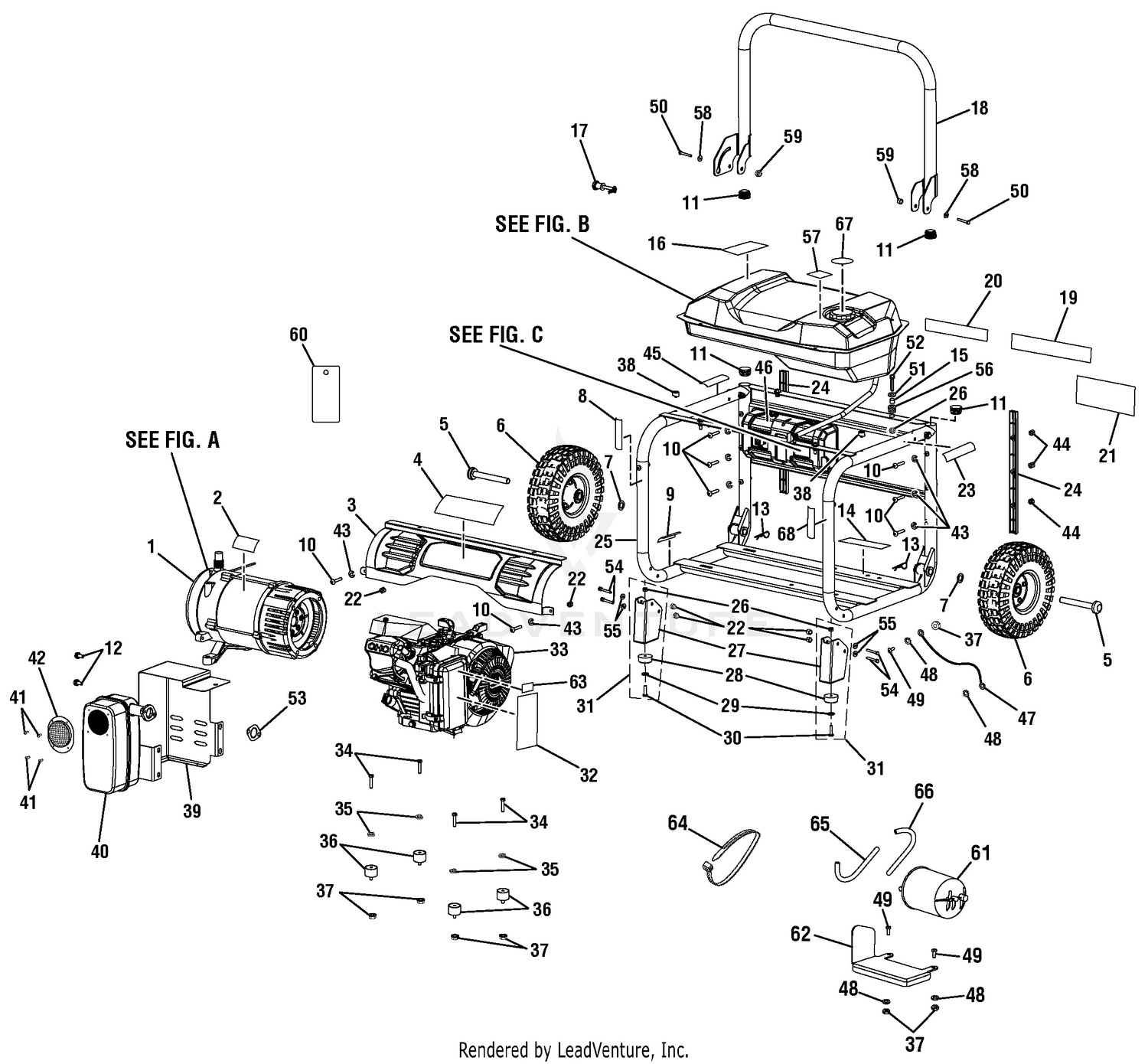

| Ref | Part Number | Description |
|---|
| 1 |
353-601 |
DISCONTINUED Price: Call Us |
| 1 |
483341 |
Cable, Deck Lift Price: Call Us |
| 2 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 2 |
20000644 |
DATA LABEL Price: $3.00 |
| 2 |
353-600 |
DISCONTINUED Price: Call Us |
| 3 |
353-588 |
COVER MOTOR Price: $400.82 |
| 3 |
453488 |
Park Brake Support, WLMT Price: Call Us |
| 4 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 4 |
20000647 |
BACK PANEL LOGO LABEL Price: $4.95 |
| 4 |
353-599 |
PIN-DOWEL Price: $2.65 |
| 5 |
04001-71 |
Bolt, Hex Head 1/2-13 x 1-1/2", (STT-52 & STTII-52) Price: Call Us |
| 5 |
20000592 |
AXLE Price: $4.95 |
| 5 |
353-597 |
BRIDGING INSERT Price: $5.51 |
| 6 |
20000563 |
WHEEL Price: $21.95 |
| 6 |
353-598 |
GASKET INSERT Price: $10.55 |
| 6 |
453423 |
Brake Hub Weldment, LH Price: Call Us |
| 7 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 7 |
353-593 |
IDLER GEAR ASM Price: $465.66 |
| 8 |
20000646 |
HOT SURFACE LABEL Price: $2.95 |
| 8 |
353-591 |
BLOCK ANTI EXTRUSION Price: $12.16 |
| 8 |
487644 |
Spring, Brake Price: Call Us |
| 9 |
04041-14 |
Flatwasher, 1" (1.062 x 1.50 x .048") Price: Call Us |
| 9 |
32151-41 |
RING-SNAP Price: $0.41 |
| 10 |
48114-08 |
Grease Fitting, 90 Degree Price: Call Us |
| 10 |
92-8863 |
REPAIR KIT This part replaces 353-585. Price: $53.91 |
| 11 |
04001-92 |
Bolt, Hex Head 5/16-18 x 3-1/4" Price: Call Us |
| 11 |
20000579 |
END CAP Price: $2.95 |
| 11 |
353-590 |
SPACER Price: $1.09 |
| 12 |
353-589 |
DISCONTINUED Price: Call Us |
| 12 |
463652 |
Brake Lever w/Grip Price: Call Us |
| 13 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 13 |
20000628 |
HITCH PIN Price: $3.45 |
| 13 |
353-586 |
NEEDLE BEARING Price: $32.35 |
| 14 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 14 |
20000864 |
ENGINE LUBRICANT LABEL This part replaces 20000649. Price: $2.95 |
| 14 |
353-594 |
SEAL ASM Price: $47.39 |
| 15 |
04001-18 |
Bolt, Hex Head, 3/8-16 x 3/4" Price: Call Us |
| 15 |
353-595 |
DISCONTINUED Price: Call Us |
| 16 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 16 |
20000854 |
CPSC LABEL This part replaces 20000641. Price: $7.95 |
| 16 |
353-592 |
DRIVE SHAFT Price: $419.20 |
| 17 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 17 |
20000562 |
HANDLE RELEASE PIN ASSEMBLY Price: $5.45 |
| 18 |
20000570 |
HANDLE ASSEMBLY Price: $14.95 |
| 18 |
431205 |
Shaft, Brake Price: Call Us |
| 19 |
20000648 |
DANGER LABEL Price: $4.95 |
| 19 |
453512 |
Brake Hub Weldment, RH Price: Call Us |
| 20 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 20 |
20000639 |
GROUND WARNING LABEL Price: $2.95 |
| 21 |
20000638 |
LOGO LABEL Price: $5.45 |
| 21 |
463654 |
Brake Hub Assembly Price: Call Us |
| 23 |
20000871 |
FIRE DANGER LABEL This part replaces 20000653. Price: $2.95 |
| 24 |
20000580 |
FRAME SLIDE RAILS Price: $2.95 |
| 25 |
20000566 |
FRAME ASSEMBLY Price: $100.00 |
| 27 |
20000606 |
FOOT Price: $9.95 |
| 28 |
20000485 |
WEAR PAD Price: Call Us |
| 32 |
20000642 |
STARTING INSTRUCTION LABEL Price: $2.95 |
| 38 |
20000586 |
RUBBER HANDLE BUMPER Price: $3.45 |
| 39 |
20000601 |
BACK MUFFLER COVER Price: $10.20 |
| 42 |
20000804 |
SPARK ARRESTOR This part replaces 20000594. Price: $6.95 |
| 45 |
20000640 |
PIN RELEASE LABEL Price: $2.95 |
| 47 |
20000764 |
GROUND WIRE ASSEMBLY This part replaces 20000556. Price: $2.95 |
| 53 |
20000599 |
MUFFLER GASKET Price: Call Us |
| 57 |
20000869 |
E85 LABEL This part replaces 20000651. Price: $2.95 |
| 60 |
20000655 |
DANGER HANG TAG Price: Call Us |
| 61 |
20000574 |
CANISTER Price: $51.95 |
| 62 |
20000607 |
CANISTER BRACKET Price: $7.95 |
| 63 |
20000643 |
CHOKE LABEL Price: $2.95 |
| 64 |
20000850 |
CABLE TIE This part replaces 20000637. Price: $2.95 |
| 65 |
20000583 |
PURGE HOSE Price: $4.95 |
| 66 |
20000589 |
ROLLOVER VENT Price: $4.95 |
| 67 |
20000870 |
FUEL STABILIZER LABEL This part replaces 20000652. Price: $2.95 |
| 68 |
20000872 |
FIRE DISTANCE LABEL This part replaces 20000654. Price: $2.95 |
