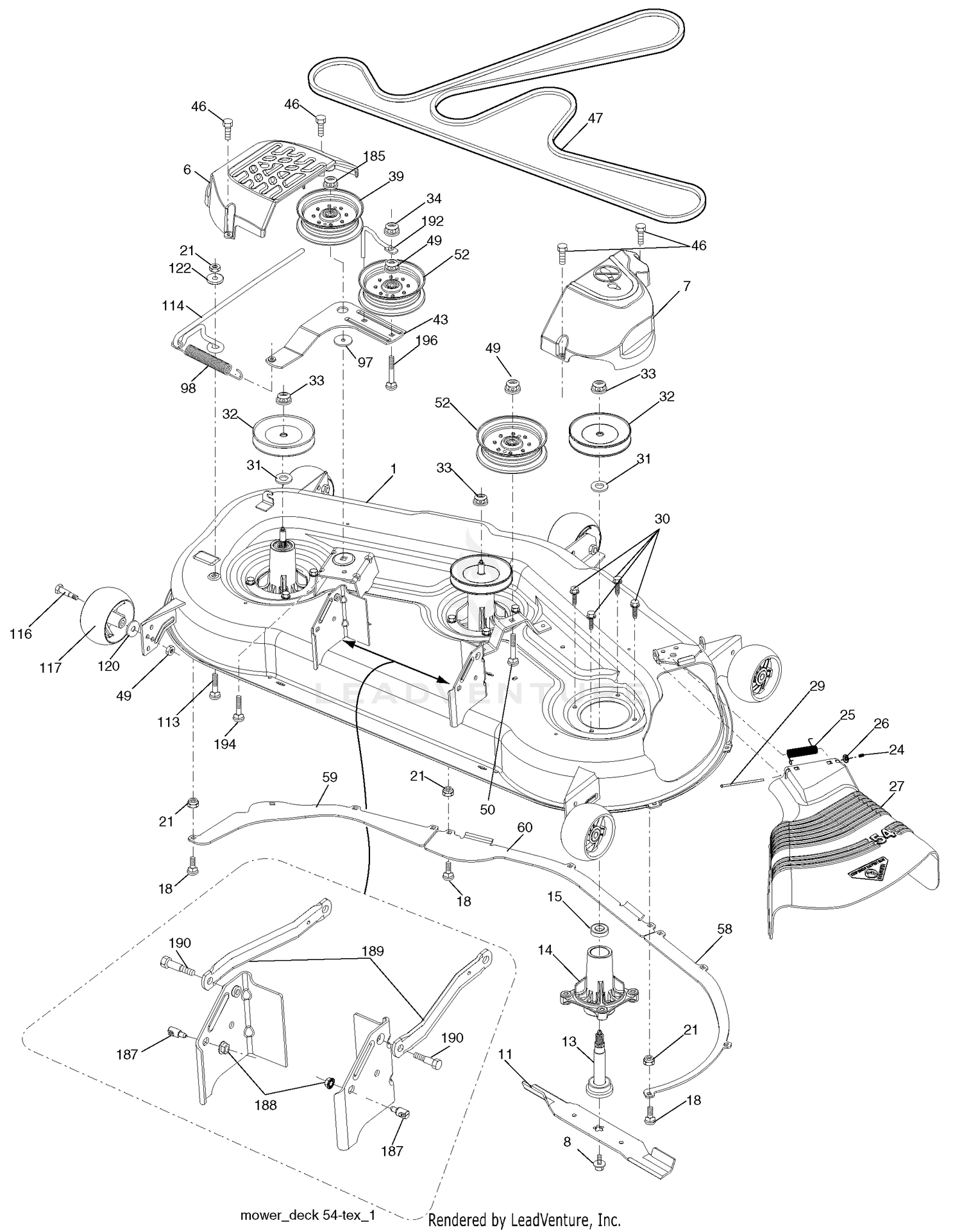

| Ref | Part Number | Description |
|---|
| 1 |
195632X421 |
Deck Weldment Mower Price: Call Us |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 3 |
32128-25 |
NUT-HF Price: $3.19 |
| 4 |
104-0082 |
DISCONTINUED Price: Call Us |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 6 |
196066 |
Cover Mandrel LH Price: Call Us |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 7 |
197181 |
Cover Mandrel RH Price: Call Us |
| 7 |
92-5524 |
DISCONTINUED Price: Call Us |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
63-9920 |
DISCONTINUED Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
187254 |
High Lift Price: Call Us |
| 11 |
187255 |
Blade Mulching Price: Call Us |
| 11 |
187256 |
Blade Bagging Price: Call Us |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 18 |
72140505 |
Bolt 5/16-18 x 5/8 Price: Call Us |
| 18 |
93-8060 |
DECAL-REELS Price: $53.80 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 21 |
98-3926 |
CABLE-THROTTLE Price: $32.00 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
187257X428 |
Deflector Shield Price: Call Us |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 34 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 39 |
196104 |
Pulley, Idler, Stationary Price: Call Us |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
196103 |
V-Belt, Mower Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt Rdhd Sqnk 3/8-16 unc x 2 Price: Call Us |
| 52 |
196106 |
Pulley Idler Clutching Price: Call Us |
| 58 |
187342 |
Baffle Right Price: Call Us |
| 59 |
187344 |
Baffle Left Price: Call Us |
| 60 |
187607 |
Baffle Center Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 192 |
198468 |
Keeper Belt Idler Price: Call Us |
| 194 |
72140716 |
Bolt Carr Sqnk 3/8-16 x 2-1/4 Price: Call Us |
