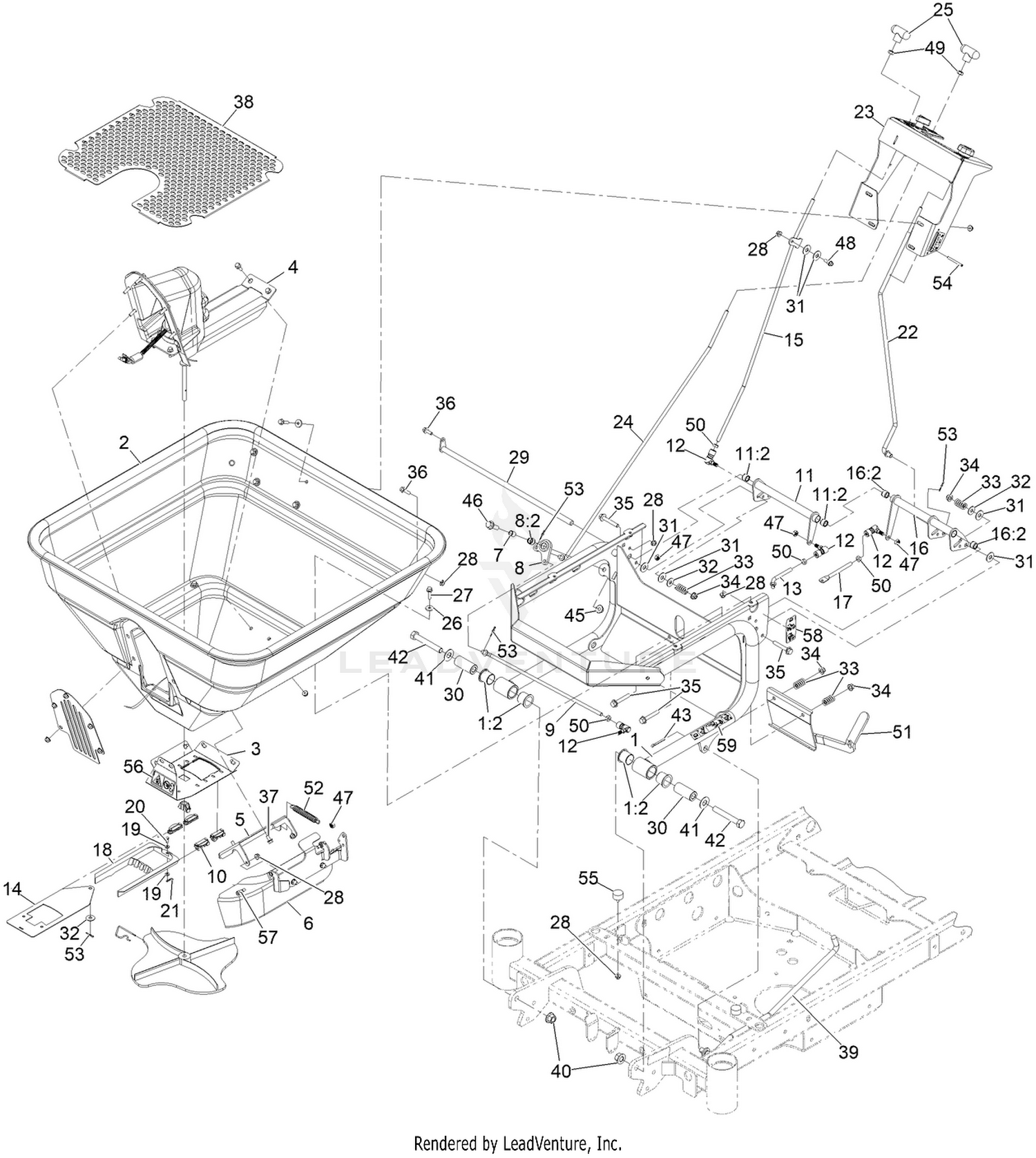

| Ref | Part Number | Description |
|---|
| 1 |
142-7344 |
FRAME-HOPPER Price: $975.99 |
| 2 |
142-4648 |
HOPPER-250 LB. Price: $310.99 |
| 3 |
142-3991 |
PLATE-HOPPER, BOTTOM Price: $99.99 |
| 5 |
142-7872 |
BRACKET-HOPPER DEFLECTOR Price: $36.99 |
| 7 |
142-7618 |
BUSHING-PIVOT, DEFLECTOR Price: $9.99 |
| 8 |
142-7614 |
CRANK-DEFELCTOR Price: $41.99 |
| 9 |
142-3961 |
LINKAGE-DEFLECTOR, LOWER Price: $41.99 |
| 10 |
142-3316 |
GUIDE-RATE, GATE Price: $1.69 |
| 11 |
142-3927 |
CRANK-GATE, HOPPER Price: $115.99 |
| 12 |
135-5718 |
Ball Joint-Quick Disconnect, SS Price: $13.99 |
| 13 |
142-3933 |
LINKAGE-GATE, LOWER Price: $17.99 |
| 14 |
142-3942 |
RATE-GATE Price: $15.99 |
| 15 |
142-5504 |
LINKAGE-GATE, UPPER Price: $49.99 |
| 16 |
142-3946 |
CRANK-DIFFUSER Price: $83.99 |
| 17 |
142-3949 |
LINKAGE-DIFFUSER, LOWER Price: $12.99 |
| 18 |
142-3406 |
DIFFUSER Price: $6.59 |
| 19 |
126-0759 |
WASHER-FLAT Price: $1.19 |
| 20 |
126-3729 |
PIN-CLEVIS Price: $2.29 |
| 21 |
126-1631 |
PIN-COTTER, HAIR Price: $2.29 |
| 22 |
142-3950 |
LINKAGE-DIFFUSER, UPPER Price: $42.99 |
| 24 |
142-3962 |
LINKAGE-DEFLECTOR, UPPER Price: $33.99 |
| 25 |
142-5558 |
KNOB-T Price: $4.89 |
| 26 |
135-6341 |
Washer Price: $1.19 |
| 27 |
HDW27147 |
SCREW-HHF Price: $2.79 |
| 28 |
135-6108 |
Nut-Hex Flange Price: $1.39 |
| 29 |
142-4031 |
SHAFT-CONTROL, HOPPER Price: $41.99 |
| 30 |
142-4293 |
SPACER-PIVOT, HOPPER Price: $28.99 |
| 31 |
93-1633 |
WASHER Price: $2.59 |
| 32 |
HDW14535 |
FLAT WASHER, 5/16 NOM,ST Price: $0.69 |
| 33 |
142-6894 |
SPRING-COMPRESSION Price: $2.09 |
| 34 |
135-6109 |
Nut-Hex Flange Price: $1.19 |
| 35 |
126-2711 |
SCREW-HHF Price: $7.29 |
| 36 |
135-6221 |
Screw-HHF Price: $1.19 |
| 37 |
142-5490 |
SCREW-HWH Price: $1.19 |
| 38 |
142-4696 |
SCREEN-HOPPER, MEDIUM Price: $201.99 |
| 39 |
142-6888 |
ROD-PROP, HOPPER Price: $41.99 |
| 40 |
135-6111 |
NUT-HEX FLANGE Price: $5.09 |
| 41 |
HDW14428 |
WASHER Price: $0.29 |
| 42 |
142-7326 |
SCREW-HH Price: $3.69 |
| 43 |
135-6292 |
Pin-Cotter Price: $1.19 |
| 45 |
135-6110 |
Nut-Hex Flange Price: $1.19 |
| 46 |
135-6211 |
SCREW-HHF Price: $3.79 |
| 47 |
142-5498 |
NUT-LOCK, NI Price: $1.19 |
| 48 |
42-3560 |
BOLT-SHOULDER Price: $5.19 |
| 49 |
363-1684 |
NUT-HEX Price: $0.79 |
| 50 |
107-0282 |
Nut-Hex Price: $0.39 |
| 51 |
142-7495-05 |
LATCH-HOPPER Price: $59.99 |
| 52 |
142-8921 |
SPRING-EXTENSION Price: $5.79 |
| 53 |
HDW14430 |
COTTER PIN 5/64X3/4 18-8 Price: $1.03 |
| 54 |
142-7053 |
PIN-ROLL, 3/16 X 2.0 Price: $9.99 |
| 55 |
240-14 |
BUMPER-RUBBER Price: $12.99 |
| 56 |
135-6725 |
Decal-Dismemberment Hazard Price: $3.39 |
| 57 |
119-4881 |
BOLT-SHOULDER Price: Call Us |
| 58 |
146-0725 |
DECAL-HOPPER ROTATE Price: $2.29 |
