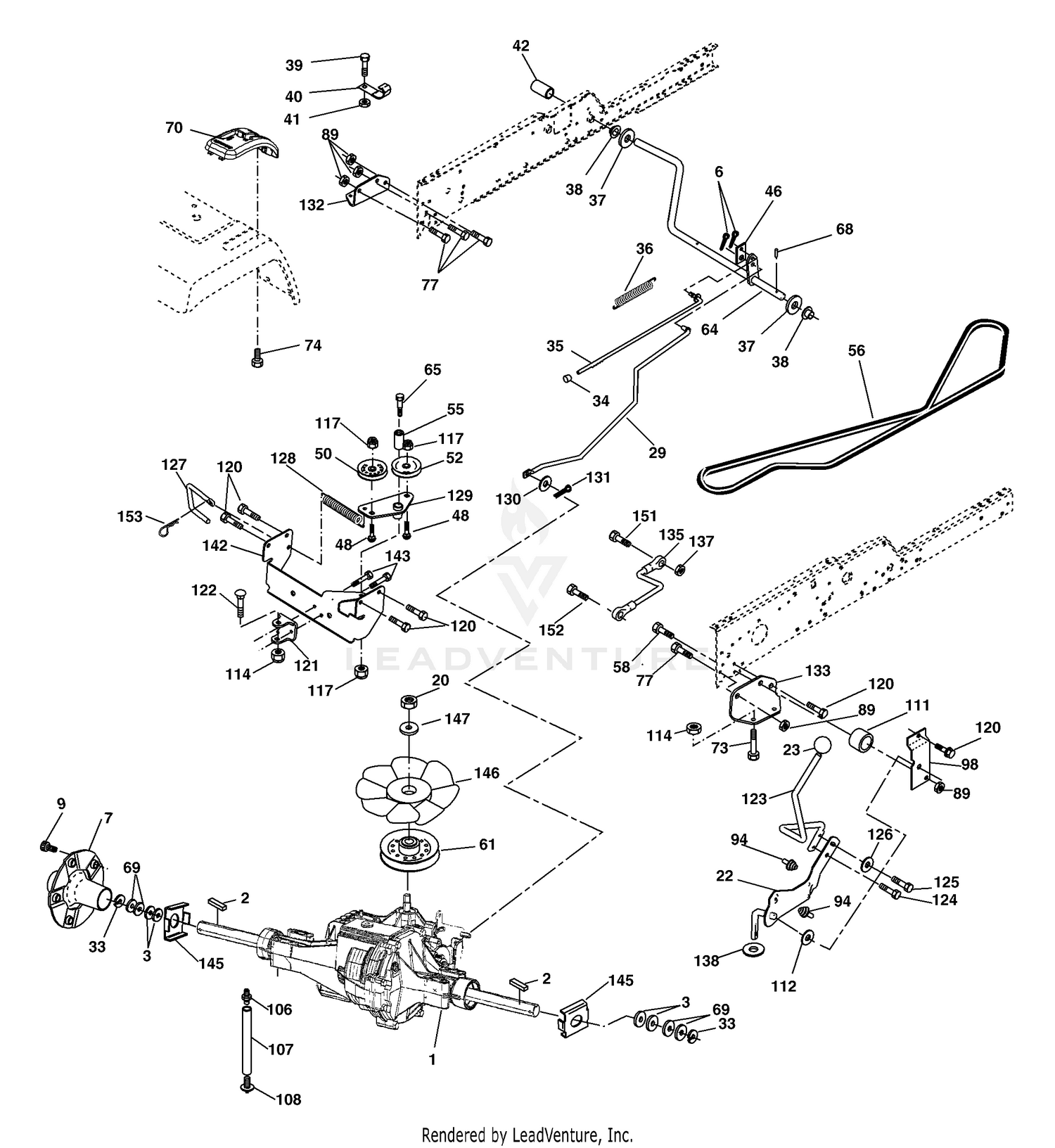

| Ref | Part Number | Description |
|---|
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
532007070 |
Key Sq. 1/4 x 1/4 x 2.5 Price: $3.99 |
| 2 |
93-7996-01 |
COVER-TOWER Price: $64.83 |
| 3 |
106-5950 |
RH FENDER ASM Price: $661.25 |
| 3 |
532007563 |
Washer Thrust Price: $4.99 |
| 6 |
106-5951 |
LH FENDER ASM Price: $625.15 |
| 6 |
876020412 |
Pin, Cotter Price: $3.99 |
| 7 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 7 |
532140507 |
Wheel, Hub Assembly Price: $120.99 |
| 8 |
107-1840 |
FRAME ASM Price: $5,208.49 |
| 9 |
532140080 |
Bolt, Hub Price: $2.99 |
| 10 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 11 |
98-4572 |
BRACKET-CLAMP, HOSE Price: $33.62 |
| 12 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 13 |
75-1390-01 |
COVER-ACCESS, FRONT Price: $78.27 |
| 14 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 15 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 15 |
75-6840 |
KNOB-KNURLED Price: $16.22 |
| 16 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 17 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 19 |
94-1410 |
HOLDER-CAN, BEVERAGE Price: $5.81 |
| 20 |
873940800 |
Nut Price: $3.99 |
| 20 |
93-3626 |
BRACKET-HOSE Price: $23.80 |
| 21 |
104-0026 |
TOOLBOX Price: $160.81 |
| 22 |
104-1476 |
RING-RUBBER Price: $18.49 |
| 22 |
532180235 |
Lever Asm Shift Price: $24.99 |
| 23 |
532140845 |
Knob Price: $8.99 |
| 23 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 24 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 25 |
104-1497 |
HINGE-RECEIVER Price: $13.90 |
| 27 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 28 |
104-9294 |
DECAL-WARNING Price: $44.98 |
| 28 |
104-9295 |
DECAL-WARNING, CE Price: $47.20 |
| 29 |
104-1489-03 |
COVER-TOOLBOX Price: $87.10 |
| 29 |
532176600 |
Brake, Rod Price: $19.99 |
| 30 |
110-9721 |
DECAL-INSTRUCTIONS, SERVICE This part replaces 107-8841. Price: $25.78 |
| 31 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 33 |
812000053 |
Ring E Price: $3.99 |
| 33 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 34 |
532071673 |
Cap, Parking Brake Price: $3.99 |
| 35 |
532137648 |
Rod, Parking Brake Price: $6.99 |
| 36 |
532149412 |
Spring, Drive Ground Price: $3.99 |
| 37 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 38 |
532150035 |
Nyliner Price: $2.99 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
532178575 |
Actuator, Interlock VGT Price: $3.99 |
| 41 |
873931000 |
Nut Centerlock 10-24 unc Price: $3.99 |
| 42 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 46 |
532145170 |
Retainer, Spring Price: $2.99 |
| 48 |
872110614 |
Bolt Rdhd 3/8-16 x 1.3/4 Gr. 5 Price: $3.99 |
| 50 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 52 |
532139245 |
Pulley, Idler V Groove This part replaces 532127783. Price: $22.99 |
| 55 |
532105706 |
Bearing, Idler Price: $3.99 |
| 58 |
874760724 |
Bolt Fin Hex 7/16-14 x 1-1/2 Price: $2.99 |
| 61 |
532143995 |
Pulley, Transaxle Price: $19.99 |
| 64 |
532176601 |
Shaft, Brake Pedal Price: $36.99 |
| 65 |
532179613 |
Bolt, Shoulder Price: $2.99 |
| 68 |
532005142 |
Pin, Roll Price: $3.99 |
| 69 |
532123800 |
Washer Price: $3.99 |
| 70 |
532181788 |
Console Automatic YT/GT Price: $7.99 |
| 73 |
874490548 |
Bolt Hex Flghd 5/16-18 x 3 Gr. 5 Price: $2.99 |
| 74 |
532142432 |
Screw Hex Wsh. Hi-Lo 1/4-1/2 Price: $3.99 |
| 77 |
874780716 |
Bolt Fin Hex 7/16-14 x 1 Price: $2.99 |
| 89 |
873680700 |
Nut Crownlock 7/16-14 unc Price: $2.99 |
| 94 |
532133835 |
Fastener Christmas Tree Price: $3.99 |
| 98 |
532141004 |
Bracket Shift Price: $2.99 |
| 106 |
532142918 |
O-Ring Asm Hydro Gear Price: $19.99 |
| 107 |
532154739 |
Line Fuel Hydro 15" VGT Price: $3.99 |
| 108 |
532142578 |
Cap Vent This part replaces 532142917. Price: $31.99 |
| 111 |
532156240 |
Spacer Shift Lever VGTH Price: $2.99 |
| 112 |
532178558 |
Washer Nylon High Temp Price: $4.99 |
| 114 |
873800500 |
Nut Lock Hex W/Ins 5/16-18 unc Price: $2.69 |
| 117 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 120 |
817000612 |
Screw 3/8-16 x .75 Price: $2.99 |
| 121 |
532175611 |
Bracket Strap Torque Price: $2.99 |
| 122 |
872010520 |
Bolt RDHDSQ 5/16-18 unc x 2-1/2 Price: $3.99 |
| 123 |
532183254 |
Rod Shift Price: $20.99 |
| 124 |
532165492 |
Bolt Shoulder 5/16-18 x .561 Price: $3.99 |
| 125 |
817490510 |
Screw 5/16-18 x 5/8 Price: $2.99 |
| 126 |
532166002 |
Washer SRRTD 5/16 ID x 1.0 x .125 Price: $3.99 |
| 127 |
532177362 |
Link Control Clutch Price: $7.99 |
| 128 |
532176624 |
Spring Drive GRND Price: $3.99 |
| 129 |
532179473 |
Bracket Asm Idler Tensioning Price: $20.99 |
| 130 |
819131016 |
Washer 13/32 x 5/8 x 16 Ga. Price: $3.99 |
| 131 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 132 |
532175467 |
Bracket Mtg Hydro 3500 LH VGT Price: $3.99 |
| 133 |
532175468 |
Bracket Mtg Hydro 3500 RH VGT Price: $3.99 |
| 135 |
532177364 |
Link Asm Control Hydro 3500 Price: $48.99 |
| 137 |
532124949 |
Nut Lock 5/16-18 NC Thd. Price: $3.99 |
| 138 |
532001370 |
Washer Thrust 5/8 x 1.10 x 1/32 Price: $2.99 |
| 142 |
532175469 |
Strap Torque HG-3500 Price: $29.99 |
| 143 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 145 |
532163168 |
Washer Axle Flange HG-3000 Price: $11.99 |
| 146 |
532140462 |
Fan 7" Hydro Price: $7.99 |
| 147 |
532141322 |
Washer Price: $2.99 |
| 151 |
874760514 |
Bolt Hex 5/16-18 x 7/8 Price: $3.99 |
| 152 |
532178705 |
Bolt Hex 5/16 x 1 W/Patch Price: $2.99 |
