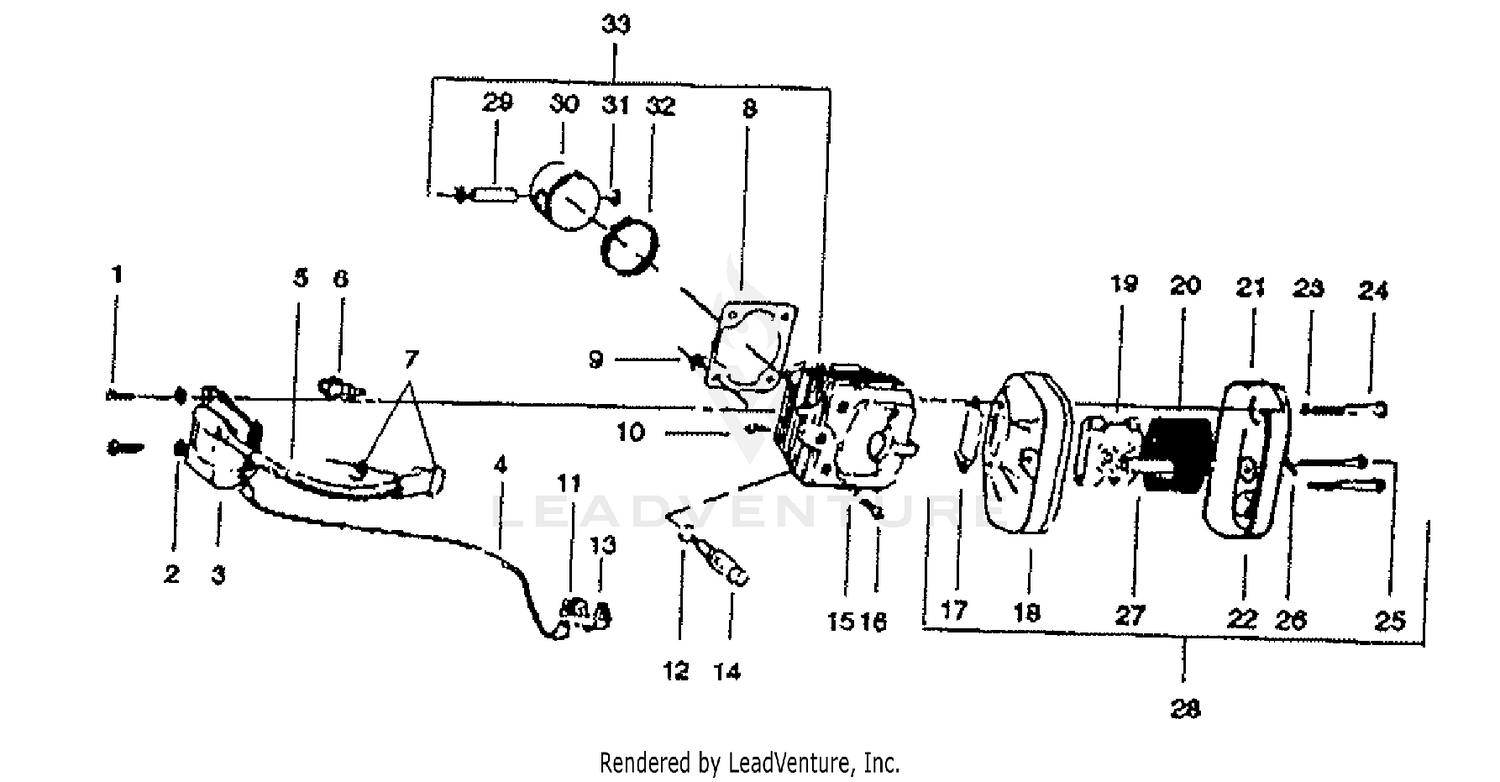

Muffler
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 507431705 | Screw Price: $0.99 |
| 2 | 507431640 | Washer Price: $0.04 |
| 3 | 507476339 | Module & Switch Wire Ass'y. Price: $23.24 |
| 4 | 507433248 | Switch Wire Price: $3.99 |
| 5 | 507430694 | Sleeve Price: $2.99 |
| 6 | 958030150 | Spark Plug Price: Call Us |
| 7 | 507476096 | Spark Plug Boot & Clip Price: $1.96 |
| 8 | 507433473 | Cylinder Base Gasket Price: $1.99 |
| 9 | 507431855 | Nut Price: $3.33 |
| 10 | 507431875 | Screw Price: Call Us |
| 11 | 507475623 | Grounding Switch Price: $5.28 |
| 12 | 507432302 | Washer Price: $1.99 |
| 13 | 530038387 | Switch Plate Price: $3.33 |
| 14 | 507475358 | Decompression Valve Price: $3.33 |
| 15 | 507431708 | Washer Price: $3.33 |
| 16 | 507431691 | Screw Price: $1.99 |
| 17 | 507430684 | Muffler Gasket Price: $0.99 |
| 18 | 5074759848 | Muffler Body Price: Call Us |
| 19 | 507433096 | Meffler Channel Price: $3.99 |
| 20 | 507433104 | Muffler Screen Price: $8.99 |
| 21 | 5074704288 | Muffler Cover Ass'y Price: Call Us |
| 22 | 5074761068 | Heat Shield Ass'y Price: Call Us |
| 23 | 507431888 | Lockwasher Price: $3.33 |
| 24 | 530015718 | Screw Price: $0.24 |
| 25 | 507430893 | Screw Price: $3.33 |
| 26 | 507431683 | Lockwasher Price: $0.99 |
| 28 | 5074760748 | Muffler Ass'y Price: Call Us |
| 29 | 507433769 | Wrist Pin Price: $8.99 |
| 30 | 5074753551 | Piston Price: Call Us |
| 31 | 507429548 | Retainer Price: $5.99 |
| 32 | 507473961 | Piston Ring Set Price: $6.40 |
