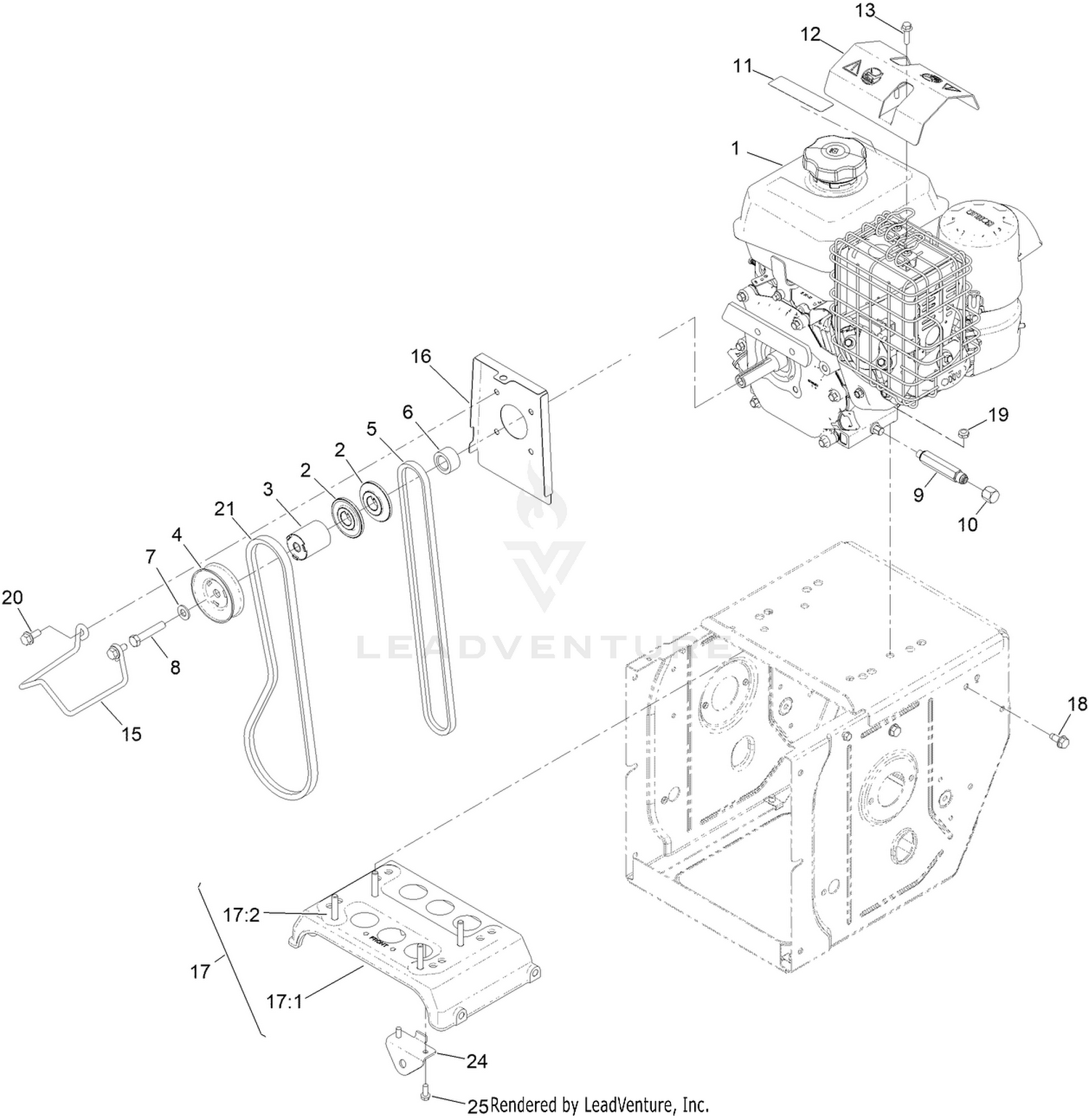

Engine Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 144-1240 | SHEAVE-TRACTION Price: $5.19 |
| 3 | 144-1241 | SPACER-PULLEY Price: $9.99 |
| 4 | 137-6179 | PULLEY-IMPELLER Price: $11.99 |
| 5 | 109-7299 | BELT,3L P21 DRIVE Price: $25.99 |
| 6 | 144-1242 | SPACER Price: $5.29 |
| 7 | 115-1166 | WASHER-FLAT Price: $4.19 |
| 8 | 120-2302 | SCREW-HH Price: $2.59 |
| 9 | 116-8721 | ADAPTER Price: $40.99 |
| 10 | 01-201-4520 | CAP Price: $3.20 |
| 11 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 12 | 126-4178-03 | DEFLECTOR-DEBRIS, MUFFLER Price: $57.99 |
| 13 | 33103-025 | SCREW-HHF Price: $0.54 |
| 15 | 144-2816 | GUIDE-BELT Price: $7.79 |
| 16 | 140-7945-03 | COVER-CRANK Price: $21.99 |
| 17 | 144-1625 | ENGINE PLATE ASM (G250) Price: $41.99 |
| 18 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 19 | 137-3089 | NUT-HEX Price: $0.39 |
| 20 | 138-0690 | SCREW-HH Price: $0.99 |
| 21 | 80-3590 | V-BELT Price: $54.22 |
| 24 | 136-6644-03 | BRACKET-CONTROL, TRACTION Price: $2.49 |
