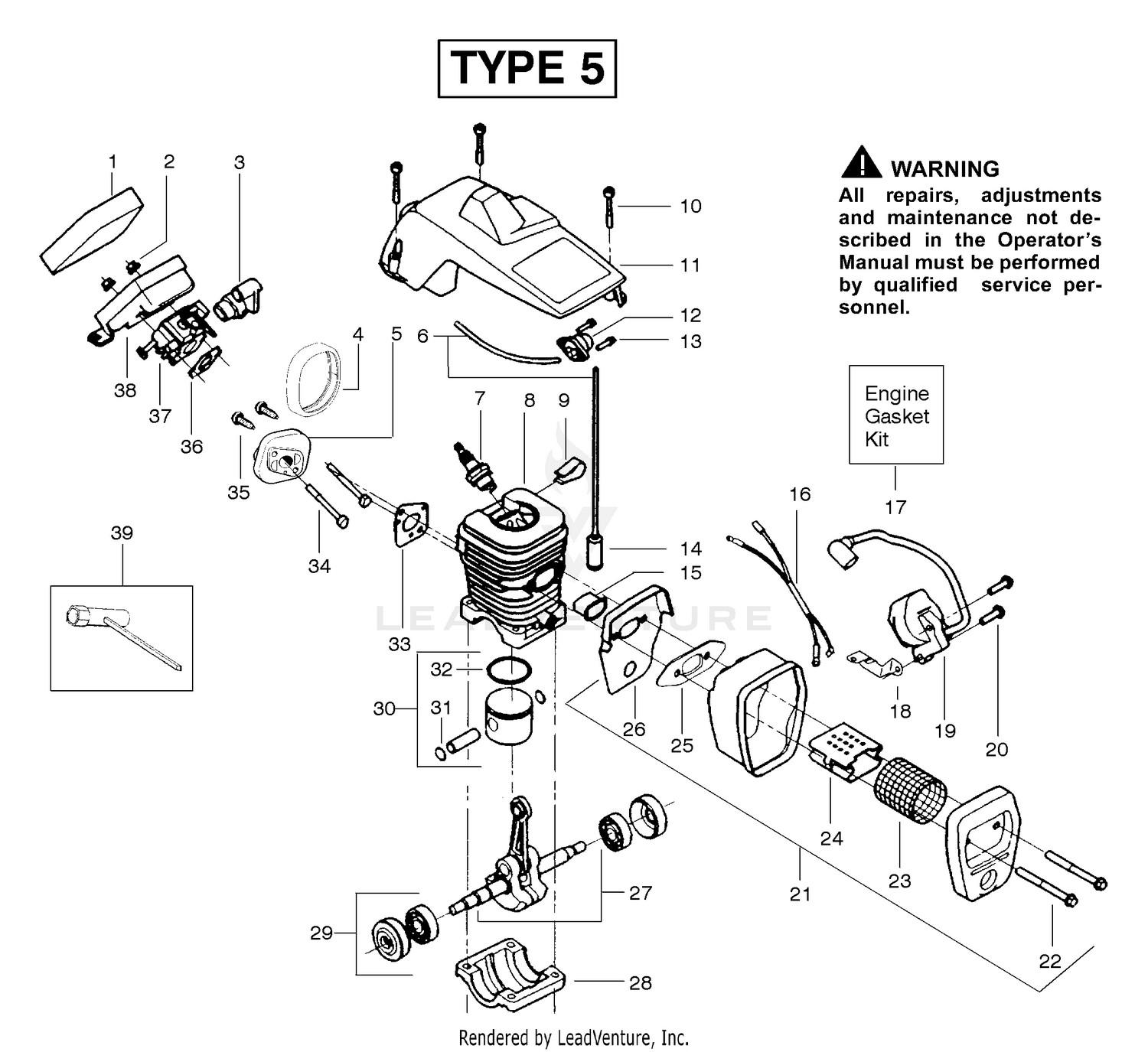

| Ref | Part Number | Description |
|---|
| 1 |
115-8294-0P |
TUBE-LONG This part replaces 115-8294-03. Price: $233.63 |
| 1 |
530037793 |
Foam Air Filter Price: $1.99 |
| 2 |
114-5407 |
SHAFT-LONG, REAR ROLLER Price: $84.05 |
| 2 |
530016101 |
Nut Price: $1.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
530035526 |
Grommet Carb Adjust Price: Call Us |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
530054144 |
Seal Carb Adapter Price: $2.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
530049700 |
Adapter Carb. Price: $3.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
530069247 |
Kit Fuel Line (Small) Price: $3.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 8 |
530012550 |
Cylinder This part replaces 530071412. Price: $17.99 |
| 9 |
530016136 |
Clip High Tension Lead Price: $1.99 |
| 10 |
530016153 |
Screw Price: $1.99 |
| 11 |
530071310 |
Shield Cylinder Price: $9.99 |
| 12 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 13 |
530015780 |
Screw Price: $1.99 |
| 14 |
530095646 |
Assy Fuel Pickup Price: $2.99 |
| 15 |
530037652 |
Insulator Heat Price: $1.99 |
| 16 |
530052296 |
Assy. Wire Harness Price: $4.99 |
| 18 |
530047442 |
Strap Ground Price: $1.99 |
| 19 |
530039198 |
Module Ignition Price: $29.99 |
| 20 |
530015814 |
Screw Price: $1.99 |
| 22 |
530016132 |
Screw Price: $1.99 |
| 23 |
530036103 |
Screen Spark Price: Call Us |
| 24 |
530037813 |
Diffuser Muffler Price: $1.99 |
| 25 |
530069608 |
Gasket Muffler (kit) Price: $5.99 |
| 26 |
530049870 |
Backplate Muffler Price: $3.99 |
| 27 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 28 |
530037935 |
Cap Crankcase Price: $8.99 |
| 29 |
530056363 |
Assy. Seal & Bearing Price: $11.99 |
| 31 |
530015697 |
Retainer Piston Pin Price: $1.99 |
| 32 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 |
530069608 |
Gasket Adapter (kit) Price: $5.99 |
| 34 |
530016187 |
Screw Price: $1.99 |
| 35 |
530016386 |
Screw Price: $5.99 |
| 36 |
530069608 |
Gasket Carb. (kit) Price: $5.99 |
| 37 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530071618. Price: $22.99 |
| 38 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 39 |
530031163 |
Wrench Bar Price: $4.99 |
