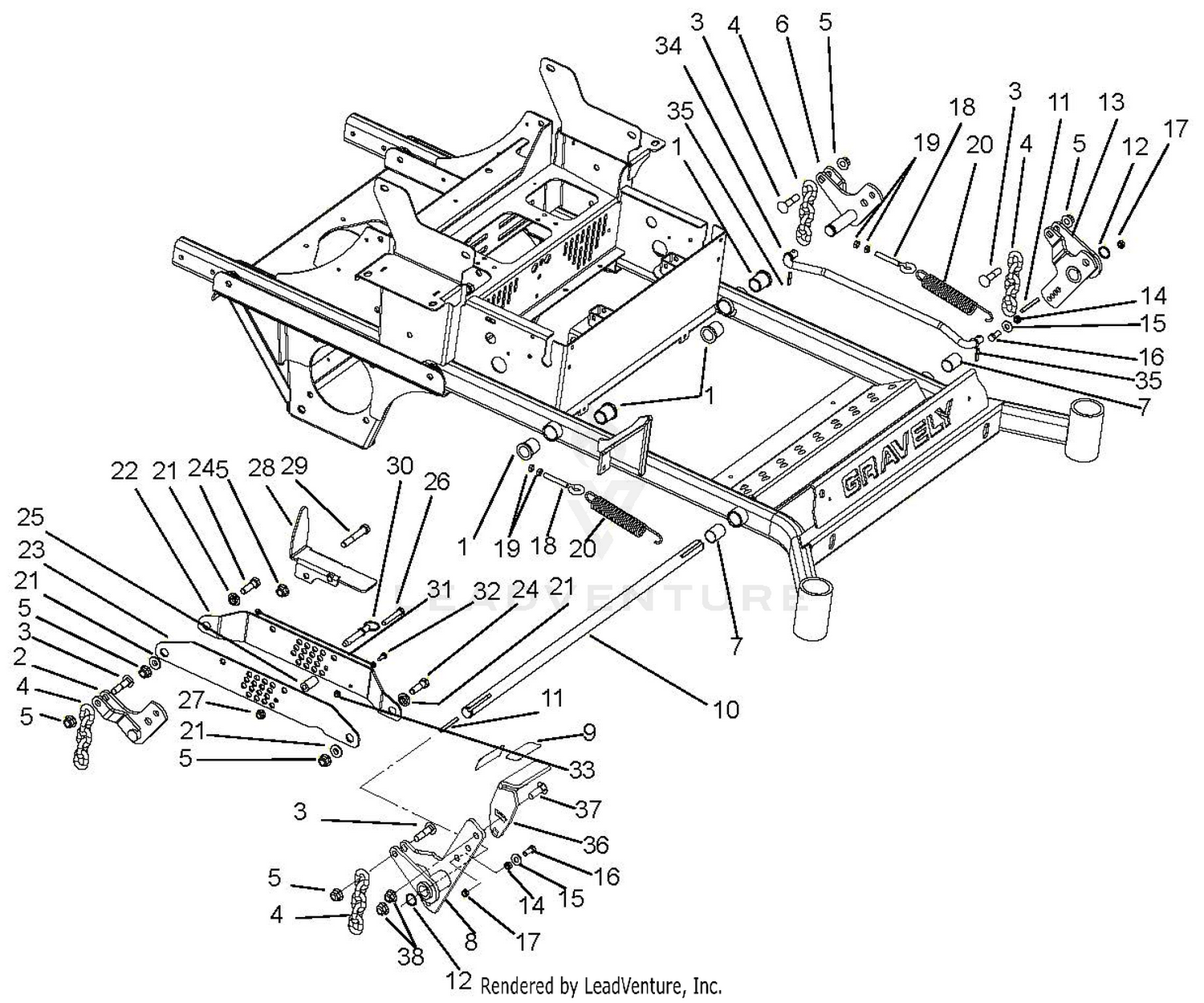

| Ref | Part Number | Description |
|---|
| 1 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 Price: $6.95 |
| 2 |
03858000 |
WMT, RH REAR DECK LIFT Price: $98.45 |
| 3 |
06200423 |
BLT- RHSN .50-13X2.25 G5 ZCC This part replaces 06200119. Price: $3.45 |
| 4 |
03975600 |
CHAIN, 5 LINK 3/8 MOWER LIFT Price: $24.45 |
| 5 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 6 |
03858100 |
WMT, LH REAR DECK LIFT Price: $96.95 |
| 7 |
05500034 |
BSHG,1.00ID X 1.125OD X 1.50LG Price: $6.45 |
| 8 |
04184400 |
WMT, ADJUSTABLE DECK FOOT LIFT Price: $121.45 |
| 9 |
00270100 |
GRIP, PEDAL 1.50 X 3.00 Price: $3.45 |
| 10 |
03971300 |
SHAFT, FRONT MOWER LIFT Price: $144.95 |
| 11 |
06602600 |
KEY-SQ .25 X 2.50 X .25 SAE Price: $5.45 |
| 12 |
05707300 |
RG-RTNG-EXT 1.00X.078 Price: $2.95 |
| 13 |
03857900 |
WMT, FRONT LH DECK LIFT Price: $130.95 |
| 14 |
05508900 |
BSHG-SLV .377X.624X.235 Price: $8.45 |
| 15 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
| 16 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 17 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 18 |
07030000 |
BLT-EYE .375-16X2.50 YWZC Price: $7.45 |
| 19 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 20 |
08319000 |
SG-TENS .162X1.25X8.25 WLD 25 Price: $29.95 |
| 21 |
03989100 |
BSHG-FLG .515X.750X.310X1.120 Price: $3.45 |
| 22 |
03954751 |
RH LIFT/CUT HT BRKT-INBRD-BLK Price: $47.95 |
| 23 |
03954651 |
RH LIFT/CUT HT BRKT-OUTBRD-BLK Price: $40.95 |
| 24 |
05901939 |
BLT, HEX .50-13X1.75 G5 ZCC This part replaces 05970600. Price: $3.95 |
| 25 |
03954800 |
SPACER, .375 X .625 X 1.54 Price: $5.95 |
| 26 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
| 27 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 28 |
03864051 |
MECHANICAL LOCK-UP WMT - BLACK Price: $21.45 |
| 29 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45 |
| 30 |
04822400 |
PIN, .50 X 2.00 USABLE LG BALL This part replaces 03957100. Price: $8.95 |
| 31 |
06900317 |
CABLE, 12.0 LANYARD, NYLON Price: $3.45 |
| 32 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 33 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 34 |
04063100 |
ROD-LIFT ASSIST 19.35" Price: $71.45 |
| 35 |
05800001 |
PIN-ROLL .250X1.25 STNLESS STL Price: $2.95 |
| 36 |
04088651 |
ADJUSTABLE FOOT LIFT PEDAL-BLK Price: $44.95 |
| 37 |
06200421 |
BLT, RHSN .50-13X1.50 G5 ZCC This part replaces 06223100. Price: $4.45 |
